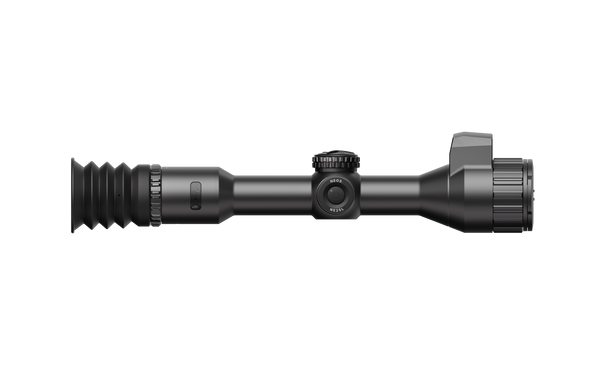

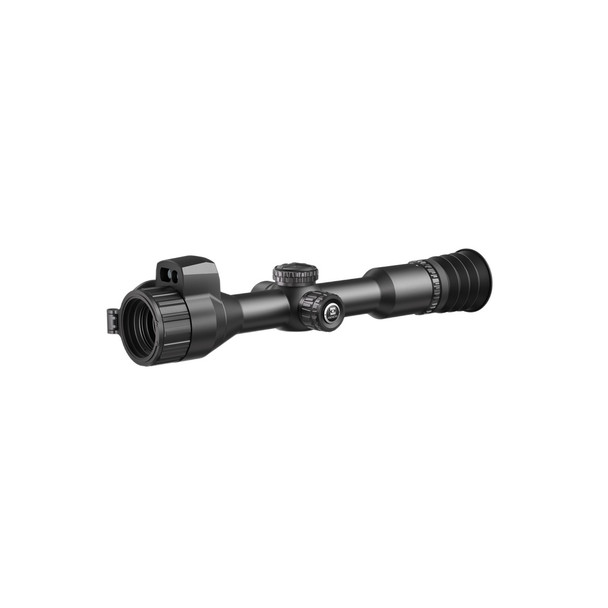

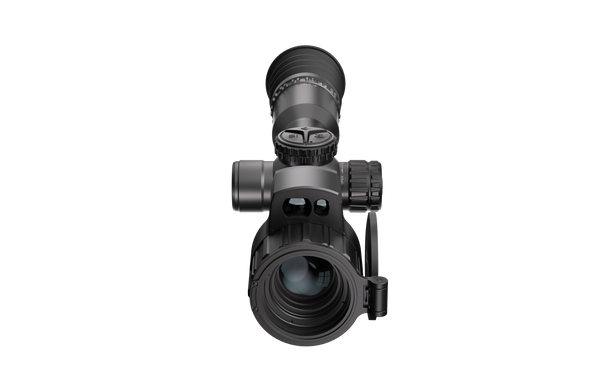

The HIKMICRO Neos NH25L delivers a strong step up in compact thermal scope performance, pairing a 320 × 240 thermal detector with a 25mm F1.0 lens, 3.5× base magnification and detection out to 1200m.

Lightweight, practical and easy to operate, the NH25L is well suited to hunters wanting extra clarity and ranging capability without moving into a bulky scope setup. With Image Pro 3.0, Zoom Pro, HSIS shutterless imaging, Sync Pro, a 1000m laser rangefinder and ballistic calculation, it offers a capable all-round thermal scope package for field use.

Features:
320 × 240 resolution @12μm thermal detector
High-sensitivity thermal module with NETD < 18 mK (@25°C, F# = 1.0)
25mm, F1.0 lens with thermal detection range up to 1200m
3.5× to 24.5× magnification range
Built-in 1000m laser rangefinder
Ballistic calculation support
AI-powered Image Pro 3.0 algorithm
Zoom Pro image enhancement
HIKMICRO Shutterless Imaging System (HSIS)
Sync Pro algorithm
0.49-inch AMOLED display
Up to 9 hours of continuous operation
Compact 30mm tube mounting design
Lightweight design at 550g

Specifications:

THERMAL MODULE
Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 320 × 240
Frame Rate: 50Hz
Pixel Interval: 12μm
Response Waveband: 8μm to 14μm
NETD: Less than 18mK (@25°C, F# = 1.0)
Lens (Focal Length): 25mm, F1.0
Focus Mode: Focus Ring
Detection Range: 1200m
Min. Focusing Distance: 3m
Magnification: 3.5× - 24.5×
Field of View (H × V), Degrees/m @100m: 7.0° × 5.3° / 12.2m × 9.3m

IMAGE DISPLAY
Display: 0.49-inch AMOLED
Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil: 8mm
Eye Relief: 55mm
Diopter (Range): -4D to +4D
Brightness Adjustment: Yes
Tone Adjustment: Cold, Warm
Contrast Adjustment: Yes
Zoom Pro: Yes
HSIS (HIKMICRO Shutterless Image System): Yes
Image Pro 3.0: Yes
Sync Pro: Yes

SYSTEM
Record Video: On-board Video Recording
Capture Snapshot: Yes
Audio Recording: Yes
Recoil-activation Recording: Yes
Standby Mode: Yes
Storage: Built-in EMMC (64GB)
PIP: Yes
Hotspot: Yes
Local Album: Yes
Freeze Zeroing: Yes
Zeroing Profiles: 5
Ballistic Calculation: Yes
Click Value: 1 click = 1cm @100m
Distance Measurement: Yes
Max. Recoil: 1000g/0.4ms

POWER SUPPLY
Battery Type: One Rechargeable Lithium Battery (Internal), One Replaceable and Rechargeable 18650 Battery (External)
Battery Operating Time: 9 hours continuous running (@25°C, Zoom Pro, LRF on)
Type-C Power Supply: 5V DC/2A, USB Type-C interface, Supports QC3.0

GENERAL
Mounting Standard: 30mm
Protection Level: IP67
Dimensions: 345.6mm × 86.1mm × 75.8mm
Weight: 550g
Center Height: 32mm
Working Temperature: From -30°C to 55°C (-22°F to 131°F)

LASER RANGEFINDER
Safety Class for Laser: Class 1
Wavelength: 905nm
Max. Measuring Range: 1000m
Measurement Accuracy: ±1m
Min. Measuring Range: 10m

WARRANTY
10 years on the uncooled sensor
3 years on components
1 year on removable battery if applicable

Includes:
1x HIKMICRO Neos NH25L Thermal Scope
1x Quick Start Guide
1x Lint-free Cloth
1x Type-C Cable
1x 18650 Battery
1x Battery Charger
