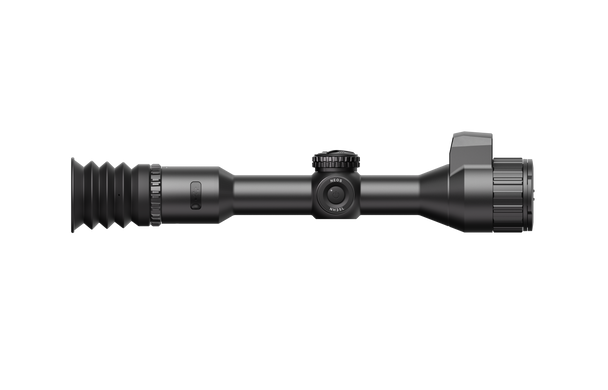

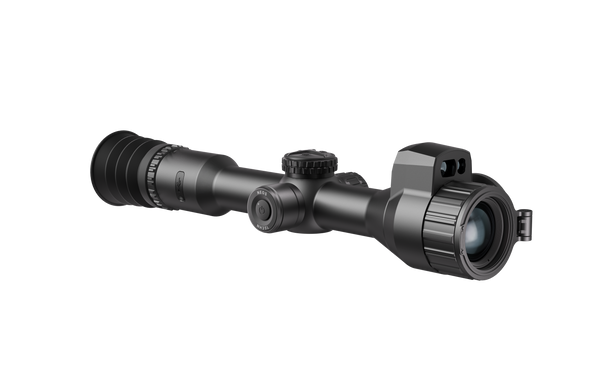

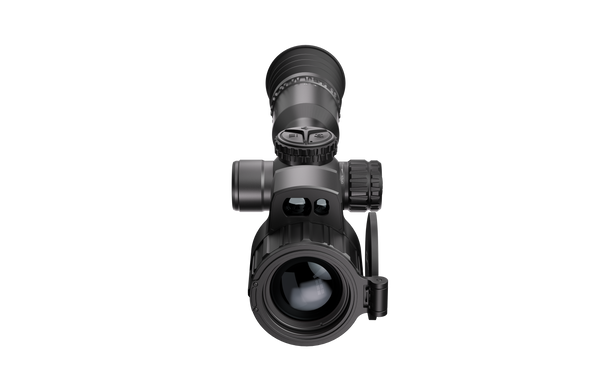

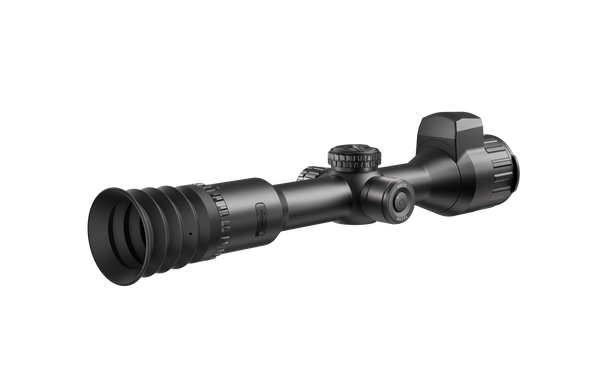

The HIKMICRO Neos NH35L delivers higher-resolution thermal scope performance in a compact 30mm tube-style design. Built with a 384 × 288 thermal detector, 35mm F1.0 lens and high-sensitivity NETD < 18 mK thermal module, it provides a 3.2× base magnification, wider 7.6° field of view, and detection out to 1800m.

Lightweight, capable and built for confident field use, the NH35L is the flagship model in the NEOS range. With Image Pro 3.0, Zoom Pro, HSIS shutterless imaging, Sync Pro, a built-in 1000m laser rangefinder and ballistic calculation support, it offers a serious thermal scope package while keeping bulk to a minimum.

Features:
384 × 288 resolution @12μm thermal detector
High-sensitivity thermal module with NETD < 18 mK (@25°C, F# = 1.0)
35mm, F1.0 lens with thermal detection range up to 1800m
3.2× to 25.6× magnification range
Built-in 1000m laser rangefinder
Ballistic calculation support
AI-powered Image Pro 3.0 algorithm
Zoom Pro image enhancement
HIKMICRO Shutterless Imaging System (HSIS)
Sync Pro algorithm for lower latency and smoother targeting
0.49-inch AMOLED display
Up to 8 hours of continuous operation
Compact 30mm tube mounting design
Lightweight design at 570g
Quick zeroing via the HIKMICRO Sight app

Specifications:

THERMAL MODULE
Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 384 × 288
Frame Rate: 50Hz
Pixel Interval: 12μm
Response Waveband: 8μm to 14μm
NETD: Less than 18mK (@25°C, F# = 1.0)
Lens (Focal Length): 35mm, F1.0
Focus Mode: Focus Ring
Detection Range: 1800m
Min. Focusing Distance: 3m
Magnification: 3.2× - 25.6×
Field of View (H × V), Degrees/m @100m: 7.6° × 5.7° / 13.1m × 10.0m

IMAGE DISPLAY
Display: 0.49-inch AMOLED
Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil: 8mm
Eye Relief: 55mm
Diopter (Range): -4D to +4D
Brightness Adjustment: Yes
Tone Adjustment: Cold, Warm
Contrast Adjustment: Yes
Zoom Pro: Yes
HSIS (HIKMICRO Shutterless Image System): Yes
Image Pro 3.0: Yes
Sync Pro: Yes

SYSTEM
Record Video: On-board Video Recording
Capture Snapshot: Yes
Audio Recording: Yes
Recoil-activation Recording: Yes
Standby Mode: Yes
Storage: Built-in EMMC (64GB)
PIP: Yes
Hotspot: Yes
Local Album: Yes
Freeze Zeroing: Yes
Zeroing Profiles: 5
Ballistic Calculation: Yes
Click Value: 1 click = 1cm @100m
Distance Measurement: Yes
Max. Recoil: 1000g/0.4ms

POWER SUPPLY
Battery Type: One Rechargeable Lithium Battery (Internal), One Replaceable and Rechargeable 18650 Battery (External)
Battery Operating Time: 8 hours continuous running (@25°C, Zoom Pro, LRF on)
Type-C Power Supply: 5V DC/2A, USB Type-C interface, Supports QC3.0

GENERAL
Mounting Standard: 30mm
Protection Level: IP67
Dimensions: 345.6mm × 86.1mm × 75.8mm
Weight: 570g
Center Height: 32mm
Working Temperature: From -30°C to 55°C (-22°F to 131°F)

LASER RANGEFINDER
Safety Class for Laser: Class 1
Wavelength: 905nm
Max. Measuring Range: 1000m
Measurement Accuracy: ±1m
Min. Measuring Range: 10m

WARRANTY
10 years on the uncooled sensor
3 years on components
1 year on removable battery if applicable

Includes:
1x HIKMICRO Neos NH35L Thermal Scope
1x Quick Start Guide
1x Lint-free Cloth
1x Type-C Cable
1x 18650 Battery
1x Battery Charger
