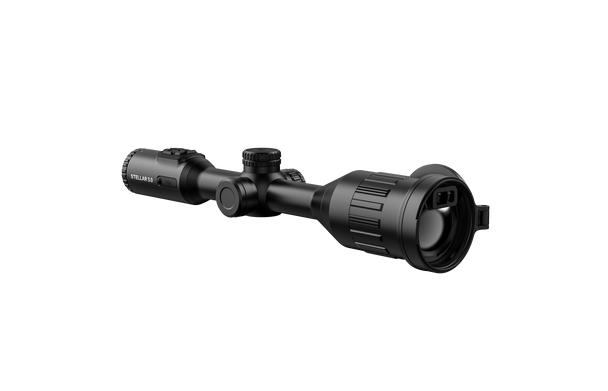

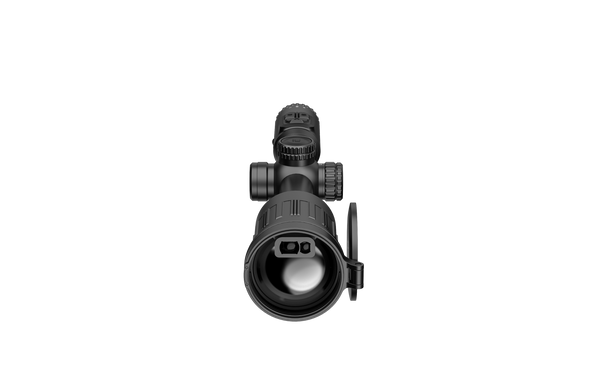

The HIKMICRO Stellar SX60L 3.0 delivers premium long-range thermal scope performance in a traditional 30mm tube-style design. Built with a 1280 × 1024 thermal detector, 60mm F1.0 lens and high-sensitivity NETD < 18 mK thermal module, it provides a 2.5× base magnification, wide 14.6° field of view, and detection out to 3100m.

Designed for serious hunters wanting exceptional image detail and long-range scanning capability, the SX60L 3.0 combines Image Pro 2.0, a large 1.03-inch OLED display, built-in 1000m laser rangefinder and ballistic calculation support in a high-end field-ready thermal scope.

Features:
1280 × 1024 resolution @12μm thermal detector
High-sensitivity thermal module with NETD < 18 mK (@25°C, F# = 1.0)
60mm, F1.0 lens with thermal detection range up to 3100m
2.5× to 28.5× magnification range
Built-in 1000m laser rangefinder
Ballistic calculation support
Image Pro 2.0 image processing algorithm
2560 × 2560 resolution 1.03-inch OLED display
Wide 14.6° × 11.7° field of view
Rechargeable internal batteries and external battery system
Up to 9 hours of continuous operation
Traditional 30mm tube mounting design
High shock resistance up to 1000g/0.4ms
IP67 protection rating

Specifications:

THERMAL MODULE
Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 1280 × 1024
Frame Rate: 25Hz
Pixel Interval: 12μm
Response Waveband: 8μm to 14μm
NETD: Less than 18mK (@25°C, F# = 1.0)
Lens (Focal Length): 60mm, F1.0
Focus Mode: Focus Ring
Detection Range: 3100m
Min. Focusing Distance: 6m
Magnification: 2.5× - 28.5×
Field of View (H × V), Degrees/m @100m: 14.6° × 11.7° / 25.6m × 20.5m

IMAGE DISPLAY
Display: 2560 × 2560, 1.03-inch OLED
Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil: 6mm
Eye Relief: 45mm
Diopter (Range): -4D to +4D
Brightness Adjustment: Yes
Tone Adjustment: Cold, Warm
Contrast Adjustment: Yes
Image Pro 2.0: Yes
HSIS (HIKMICRO Shutterless Image System): No
Zoom Pro: No

SYSTEM
Record Video: On-board Video Recording
Capture Snapshot: Yes
Audio Recording: Yes
Recoil-activation Recording: Yes
Standby Mode: Yes
Built-In Memory: Built-In EMMC (64GB)
PIP: Yes
Hotspot: Yes
Hot Track: Yes
Distance Measurement: Yes
Local Album: Yes
Freeze Zeroing: Yes
Zeroing Profiles: 5
Ballistic Calculation: Yes
Max. Recoil: 1000g/0.4ms

POWER SUPPLY
Battery Type: Two Rechargeable Lithium Batteries (Internal), One Replaceable and Rechargeable 18650 Battery (External)
Operating Time: 9 hours continuous operation (@25°C, LRF on)
Type-C Power Supply: 5V DC, 2A - Supports External Power Supply, Supports Direct Charging

GENERAL
Mounting Standard: 30mm
Protection Level: IP67
Dimensions: 452.6mm × 94.3mm × 78.9mm
Weight: 1000g without external battery
Center Height: 41mm
Working Temperature: From -30°C to 55°C (-22°F to 131°F)

LASER RANGEFINDER
LRF Module in Lens: Yes
Safety Class for Laser: Class 1
Wavelength: 905nm
Max. Measuring Range: 1000m
Measurement Accuracy: ±1m
Min. Measuring Range: 10m

WARRANTY
10 years on the uncooled sensor
3 years on components
1 year on removable battery if applicable

Includes:
1x HIKMICRO Stellar SX60L 3.0 Thermal Scope
1x Quick Start Guide
1x Lint-free Cloth
1x Type-C Cable
1x 18650 Battery
1x Battery Charger
