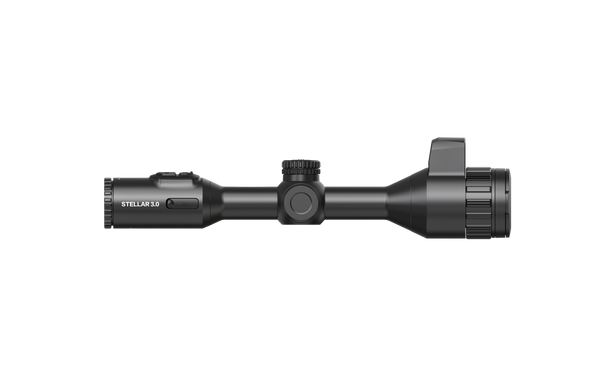

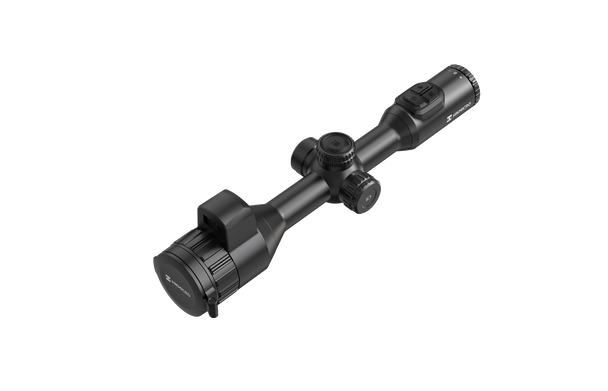

The HIKMICRO Stellar SH50L 3.0 delivers long-range thermal scope performance in a traditional 30mm tube-style design. Built with a 384 × 288 thermal detector, 50mm F1.0 lens and high-sensitivity NETD < 15 mK thermal module, it provides a 6.0× base magnification, focused field of view, and detection out to 2600m.

Designed for hunters wanting strong reach, familiar handling and reliable thermal detail, the SH50L 3.0 combines Image Pro 2.0, Zoom Pro, HSIS shutterless imaging, a large 1.03-inch OLED display, built-in 1000m laser rangefinder and ballistic calculation support in a serious field-ready thermal scope.

Features:
384 × 288 resolution @12μm thermal detector
High-sensitivity thermal module with NETD < 15 mK (@25°C, F# = 1.0)
50mm, F1.0 lens with thermal detection range up to 2600m
6.0× to 24.0× magnification range
Built-in 1000m laser rangefinder
Ballistic calculation support
Image Pro 2.0 image processing algorithm
Zoom Pro image enhancement
HIKMICRO Shutterless Image System (HSIS)
2560 × 2560 resolution 1.03-inch OLED display
Rechargeable internal batteries and external battery system
Up to 9 hours of continuous operation
Traditional 30mm tube mounting design
High shock resistance up to 1000g/0.4ms

Specifications:

THERMAL MODULE
Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 384 × 288
Frame Rate: 50Hz
Pixel Interval: 12μm
Response Waveband: 8μm to 14μm
NETD: Less than 15mK (@25°C, F# = 1.0)
Lens (Focal Length): 50mm, F1.0
Focus Mode: Focus Ring
Detection Range: 2600m
Min. Focusing Distance: 5m
Magnification: 6.0× - 24.0×
Field of View (H × V), Degrees/m @100m: 5.3° × 4.0° / 9.3m × 7.0m

IMAGE DISPLAY
Display: 2560 × 2560, 1.03-inch OLED
Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil: 6mm
Eye Relief: 45mm
Diopter (Range): -4D to +4D
Brightness Adjustment: Yes
Tone Adjustment: Cold, Warm
Contrast Adjustment: Yes
Zoom Pro: Yes
HSIS (HIKMICRO Shutterless Image System): Yes
Image Pro 2.0: Yes

SYSTEM
Record Video: On-board Video Recording
Capture Snapshot: Yes
Audio Recording: Yes
Recoil-activation Recording: Yes
Standby Mode: Yes
Built-In Memory: Built-In EMMC (64GB)
PIP: Yes
Hotspot: Yes
Hot Track: Yes
Distance Measurement: Yes
Local Album: Yes
Freeze Zeroing: Yes
Zeroing Profiles: 5
Ballistic Calculation: Yes
Max. Recoil: 1000g/0.4ms

POWER SUPPLY
Battery Type: Two Rechargeable Lithium Batteries (Internal), One Replaceable and Rechargeable 18650 Battery (External)
Operating Time: 9 hours continuous operation (@25°C, LRF on)
Type-C Power Supply: 5V DC, 2A - Supports External Power Supply, Supports Direct Charging

GENERAL
Mounting Standard: 30mm
Protection Level: IP67
Dimensions: 418.5mm × 84mm × 92.4mm
Weight: 870g without external battery
Center Height: 34mm
Working Temperature: From -30°C to 55°C (-22°F to 131°F)

LASER RANGEFINDER
Safety Class for Laser: Class 1
Wavelength: 905nm
Max. Measuring Range: 1000m
Measurement Accuracy: ±1m
Min. Measuring Range: 10m

WARRANTY
10 years on the uncooled sensor
3 years on components
1 year on removable battery if applicable

Includes:
1x HIKMICRO Stellar SH50L 3.0 Thermal Scope
1x Quick Start Guide
1x Lint-free Cloth
1x Type-C Cable
1x 18650 Battery
1x Battery Charger
