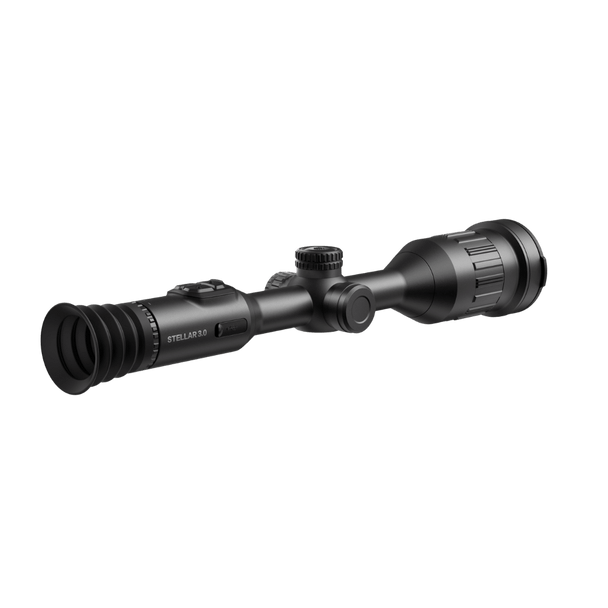

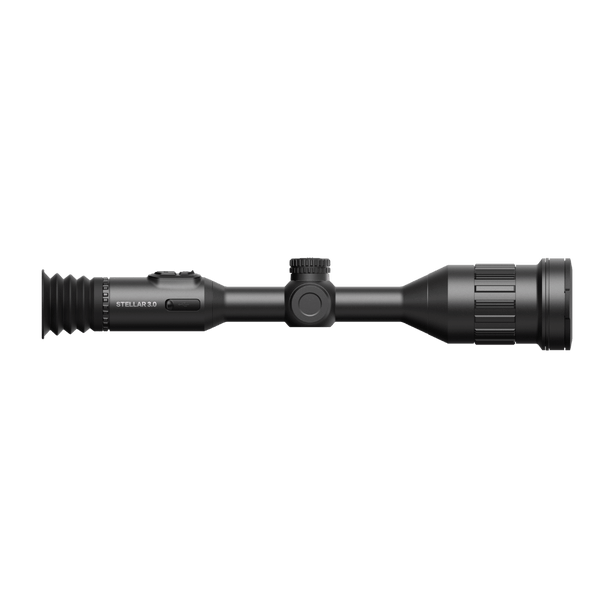

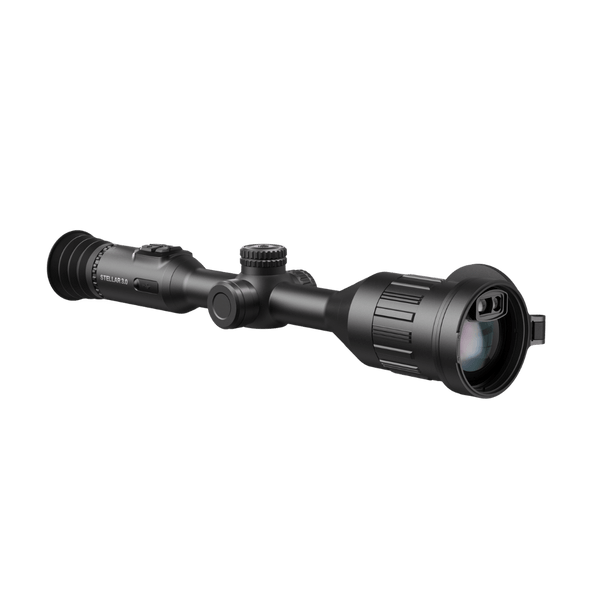

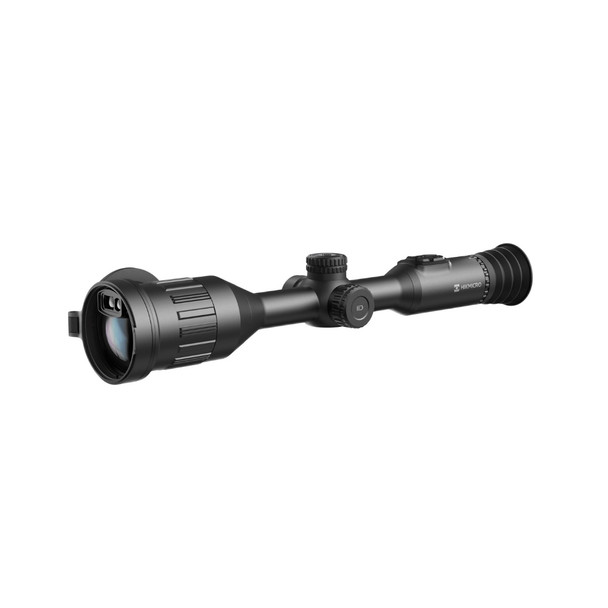

The HIKMICRO Stellar SX60LS 3.0 delivers flagship long-range thermal scope performance in a traditional 30mm tube-style design. Built with a 1280 × 1024 thermal detector, smooth 50Hz frame rate, 60mm F1.0 lens and high-sensitivity NETD < 15 mK thermal module, it provides a 2.5× base magnification, wide 14.6° field of view, and detection out to 3100m.

Designed for hunters wanting the highest level of image detail in the Stellar 3.0 range, the SX60LS combines Image Pro 3.0, Sync Pro, a large 1.03-inch OLED display, built-in 1000m laser rangefinder and ballistic calculation support in a serious premium thermal scope package.

Features:
1280 × 1024 resolution @12μm 50Hz thermal detector
High-sensitivity thermal module with NETD < 15 mK (@25°C, F# = 1.0)
60mm, F1.0 lens with thermal detection range up to 3100m
2.5× to 28.5× magnification range
Built-in 1000m laser rangefinder
Ballistic calculation support
Image Pro 3.0 image processing algorithm
Sync Pro algorithm for smoother viewing and targeting
2560 × 2560 resolution 1.03-inch OLED display
Wide 14.6° × 11.7° field of view
Rechargeable internal batteries and external battery system
Up to 6.5 hours of continuous operation
Traditional 30mm tube mounting design
High shock resistance up to 1000g/0.4ms
IP67 protection rating

Specifications:

THERMAL MODULE
Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 1280 × 1024
Frame Rate: 50Hz
Pixel Interval: 12μm
Response Waveband: 8μm to 14μm
NETD: Less than 15mK (@25°C, F# = 1.0)
Lens (Focal Length): 60mm, F1.0
Focus Mode: Focus Ring
Detection Range: 3100m
Min. Focusing Distance: 6m
Magnification: 2.5× - 28.5×
Field of View (H × V), Degrees/m @100m: 14.6° × 11.7° / 25.6m × 20.5m

IMAGE DISPLAY
Display: 2560 × 2560, 1.03-inch OLED
FFC Mode: Auto, Manual, External Correction
Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil: 6mm
Eye Relief: 45mm
Diopter (Range): -4D to +4D
Brightness Adjustment: Yes
Tone Adjustment: Cold, Warm
Contrast Adjustment: Yes
HSIS (HIKMICRO Shutterless Image System): No
Zoom Pro: No
Image Pro 3.0: Yes
Sync Pro: Yes

SYSTEM
Record Video: On-board Video Recording
Capture Snapshot: Yes
Audio Recording: Yes
Recoil-activation Recording: Yes
Standby Mode: Yes
Built-In Memory: Built-In EMMC (64GB)
PIP: Yes
Hotspot: Yes
Hot Track: Yes
Distance Measurement: Yes
Local Album: Yes
Freeze Zeroing: Yes
Zeroing Profiles: 5
Ballistic Calculation: Yes
Max. Recoil: 1000g/0.4ms

POWER SUPPLY
Battery Type: Two Rechargeable Lithium Batteries (Internal), One Replaceable and Rechargeable 18650 Battery (External)
Operating Time: 6.5 hours continuous running (@25°C, LRF on)
Type-C Power Supply: 5V DC/2A, USB Type-C interface, Supports QC3.0

GENERAL
Mounting Standard: 30mm
Protection Level: IP67
Dimensions: 452.6mm × 94.3mm × 78.9mm
Weight: 1150g
Center Height: 41mm
Working Temperature: From -30°C to 55°C (-22°F to 131°F)

LASER RANGEFINDER
LRF Module in Lens: Yes
Safety Class for Laser: Class 1
Wavelength: 905nm
Max. Measuring Range: 1000m
Measurement Accuracy: ±1m
Min. Measuring Range: 10m

WARRANTY
10 years on the uncooled sensor
3 years on components
1 year on removable battery if applicable

Includes:
1x HIKMICRO Stellar SX60LS 3.0 Thermal Scope
1x Quick Start Guide
1x Lint-free Cloth
1x Type-C Cable
1x 18650 Battery
1x Battery Charger
