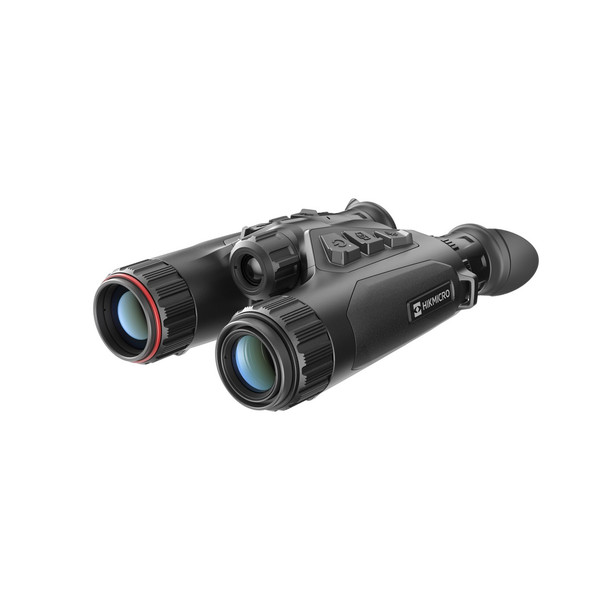

The HIKMICRO Habrok 4K HE25L delivers versatile multi-spectrum observation in a compact binocular-style design. Built with a 256 × 192 thermal detector, 25mm F1.0 thermal lens and high-sensitivity NETD < 35 mK thermal module, it provides a 4.3× thermal base magnification, 7.0° field of view, and detection out to 1200m.

Designed for daytime spotting, twilight observation and night-time field use, the HE25L combines thermal imaging with a 4K digital day/night camera, 850nm IR illuminator, 1000m laser rangefinder, GPS and digital magnetic compass in one practical all-in-one unit.

Features:
256 × 192 resolution @12μm thermal detector
High-sensitivity thermal module with NETD < 35 mK (@25°C, F# = 1.0)
25mm, F1.0 thermal lens with thermal detection range up to 1200m
3840 × 2160 4K ultra high-resolution digital detector
60mm, F2.2 optical lens with 5.5× to 22.0× magnification
Built-in 850nm IR illuminator
Built-in 1000m laser rangefinder
1920 × 1080 resolution 0.49-inch OLED display
Zoom Pro image enhancement
Digital magnetic compass and GPS
Built-in 64GB EMMC storage
Up to 8 hours of continuous operation
IP67 protection rating
Lightweight ergonomic design at 795g without batteries

Specifications:

THERMAL MODULE
Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 256 × 192
Frame Rate: 50Hz
Pixel Interval: 12μm
Response Waveband: 8μm to 14μm
NETD: Less than 35mK (@25°C, F# = 1.0)
Lens (Focal Length): 25mm, F1.0
Focus Mode: Focus Ring
Detection Range: 1200m
Min. Focusing Distance: 3m
Magnification: 4.3× - 17.2×
Field of View (H × V), Degrees/m @100m: 7.0° × 5.3° / 12.2m × 9.3m

OPTICAL MODULE
Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 3840 × 2160
Focal Length: 60mm, F2.2
Min. Working Distance: 8m
Focus Mode: Focus Ring
Magnification: 5.5× - 22.0×
Field of View (H × V), Degrees/m @100m: 6.9° × 4.1° / 12.0m × 7.2m
Smart IR: Yes
IR Illuminator Wavelength: 850nm
Viewing Range at Night: 400m

IMAGE DISPLAY
Display: 1920 × 1080, 0.49-inch OLED
Palettes: Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto
FFC Mode: Auto, Manual, External Correction
Exit Pupil: 8mm
Eye Relief: 15mm
Diopter (Range): -5D to +3D
Brightness Adjustment: Yes
Tone Adjustment: Cold, Warm
Contrast Adjustment: Yes
Zoom Pro: Yes

SYSTEM
Record Video: Yes
Capture Snapshot: Yes
Audio Recording: Yes
Standby Mode: Yes
Built-In Memory: Built-In EMMC (64GB)
PIP: Yes
Hotspot: Yes
Hot Track: Yes
Digital Magnetic Compass: Yes
GPS: Yes
Local Album: Yes

POWER SUPPLY
Battery Type: Replaceable and Rechargeable Li-ion Battery
Operating Time: ≥8 hours continuous operation (@25°C, with hotspot off)
Type-C Power Supply: 5V DC, 2A - Supports External Power Supply

GENERAL
Protection Level: IP67
Dimensions: 138mm × 68.2mm × 223mm
Weight: 795g without batteries
Interpupillary Adjustment Range: 60mm to 74mm
Mounting Adapter: 1/4"-20-UNC
Working Temperature: From -30°C to 55°C (-22°F to 131°F)

LASER RANGEFINDER
Safety Class for Laser: Class 1
Wavelength: 905nm
Max. Measuring Range: 1000m
Measurement Accuracy: ±1m
Min. Measuring Range: 10m

WARRANTY
10 years on the uncooled sensor
3 years on components
1 year on removable battery if applicable

Includes:
1x HIKMICRO Habrok 4K HE25L Multi-Spectrum Binocular
1x Quick Start Guide
1x Lint-free Cloth
1x Type-C Cable
1x Rechargeable Battery
1x Battery Charger
1x Neck Strap / Carry Strap
