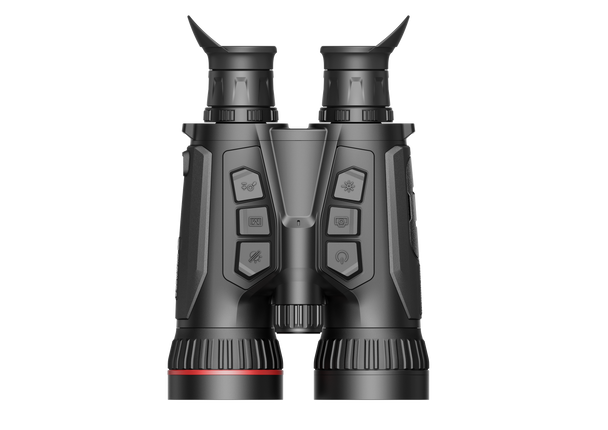

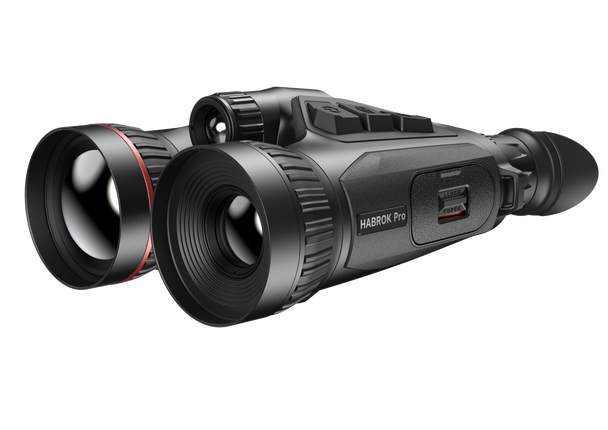

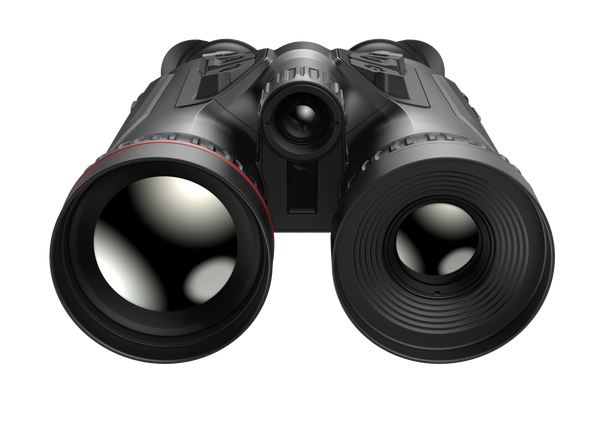

The HIKMICRO Habrok Pro HX60L(N) delivers premium multi-spectrum observation in a compact binocular-style design. Built with a 1280 × 1024 thermal detector, 60mm F1.0 thermal lens and high-sensitivity NETD < 18 mK thermal module, it provides exceptional thermal detail, a wide 14.6° field of view, and detection out to 3100m.

Designed for serious field observation, hunting, searching and long-range scanning, the HX60L(N) combines high-end thermal imaging with a 4K digital day/night camera, replaceable IR illuminator, 1000m laser rangefinder, GPS and digital magnetic compass in one advanced all-in-one unit.

Features:
1280 × 1024 resolution @12μm thermal detector
High-sensitivity thermal module with NETD < 18 mK (@25°C, F# = 1.0)
60mm, F1.0 thermal lens with detection range up to 3100m
3840 × 2160 4K ultra high-resolution digital camera
60mm, F2.2 digital lens
1920 × 1080 resolution 0.49-inch OLED display
Replaceable IR emitter
Built-in 1000m laser rangefinder
Image Pro 2.0 image processing
Digital magnetic compass and GPS
Built-in 64GB EMMC storage
9.5+ hours of continuous operation
IP67 protection rating
Lightweight ergonomic design at 1050g with battery pack

Specifications:

THERMAL MODULE
Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 1280 × 1024
Frame Rate: 25Hz
Pixel Interval: 12μm
Response Waveband: 8μm to 14μm
NETD: Less than 18mK (@25°C, F# = 1.0)
Lens (Focal Length): 60mm, F1.0
Focus Mode: Focus Ring
Detection Range: 3100m
Min. Focusing Distance: 3m
Magnification: 2.6× - 20.0×
Field of View (H × V), Degrees/m @100m: 14.6° × 8.8° / 25.6m × 15.4m

OPTICAL MODULE
Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 3840 × 2160
Focal Length: 60mm, F2.2
Min. Working Distance: 3m
Focus Mode: Focus Ring
Magnification: 5.5× - 22.0×
Field of View (H × V), Degrees/m @100m: 7.3° × 4.1° / 12.6m × 7.2m
Smart IR: Yes
IR Illuminator Wavelength: 850nm
Viewing Range at Night: 400m
Replaceable IR Illuminator: Yes

IMAGE DISPLAY
Display: 1920 × 1080, 0.49-inch OLED
Palettes: Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto
FFC Mode: Auto, Manual, External Correction
Exit Pupil: 8mm
Eye Relief: 15mm
Diopter (Range): -5D to +3D
Brightness Adjustment: Yes
Tone Adjustment: Cold, Warm
Contrast Adjustment: Yes
Zoom Pro: No
Image Pro 2.0: Yes

SYSTEM
Record Video: Yes
Capture Snapshot: Yes
Audio Recording: Yes
Standby Mode: Yes
Built-In Memory: Built-In EMMC (64GB)
PIP: Yes
Hotspot: Yes
Hot Track: Yes
Digital Magnetic Compass: Yes
GPS: Yes
Local Album: Yes

POWER SUPPLY
Battery Type: Replaceable and Rechargeable Li-ion Battery Pack
Operating Time: 9.5 hours (@25°C, with hotspot off, LRF on)
Type-C Power Supply: 5V/9V DC, 3A - Supports External Power Supply, Supports Direct Charging

GENERAL
Protection Level: IP67
Dimensions: 152.8mm × 81.95mm × 231.5mm
Weight: 1050g with battery pack
Interpupillary Adjustment Range: 60mm to 74mm
Mounting Adapter: 1/4"-20-UNC
Working Temperature: From -30°C to 55°C

LASER RANGEFINDER
Safety Class for Laser: Class 1
Wavelength: 905nm
Max. Measuring Range: 1000m
Measurement Accuracy: ±1m
Min. Measuring Range: 10m

WARRANTY
10 years on the uncooled sensor
3 years on components
1 year on removable battery if applicable

Includes:
1x HIKMICRO Habrok Pro HX60L(N) Multi-Spectrum Binocular
1x Quick Start Guide
1x Lint-free Cloth
1x Type-C Cable
1x Battery Pack
1x Battery Charger
1x Neck Strap / Carry Strap
