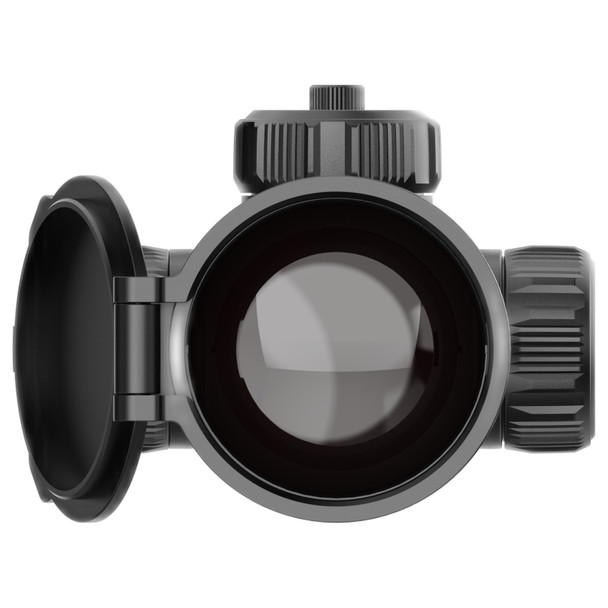

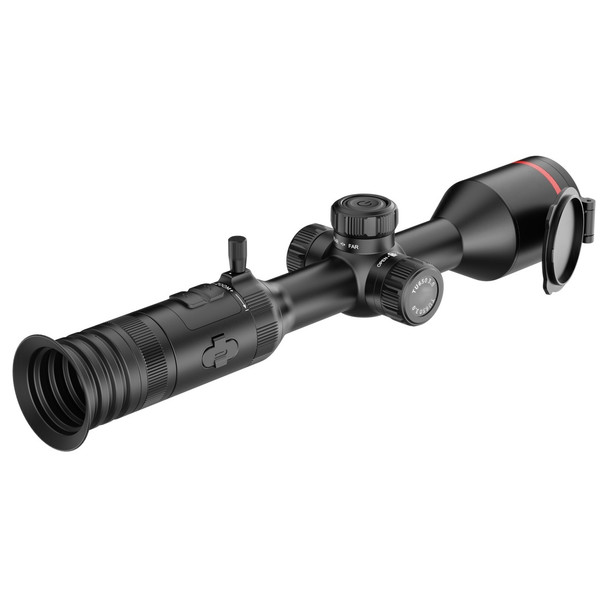

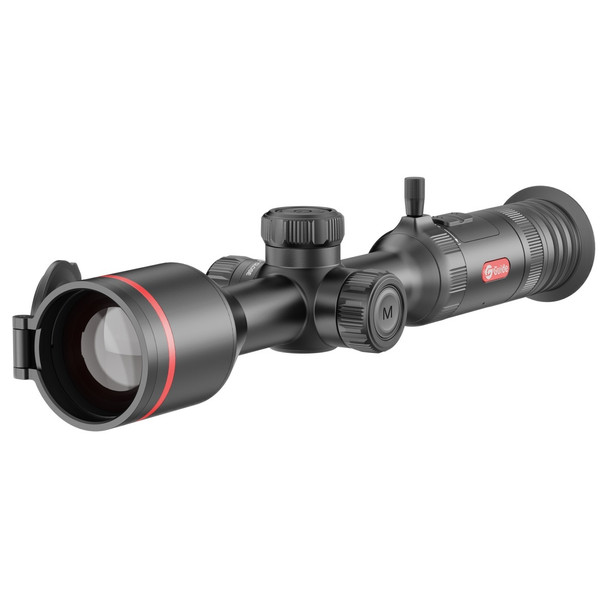

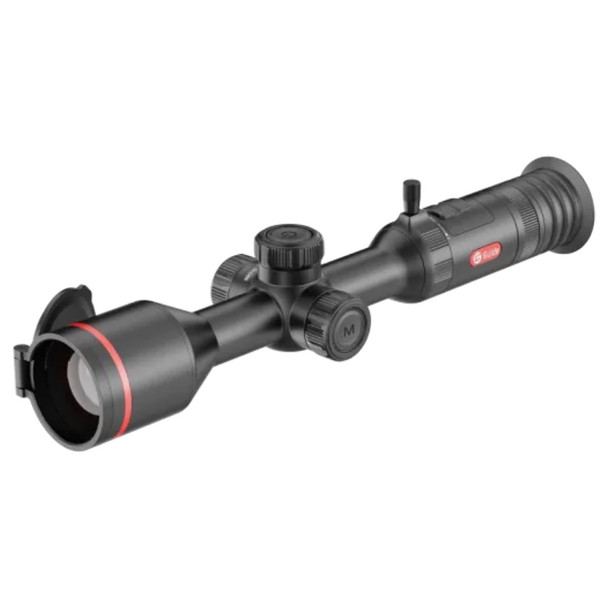

The Guide TU650S Thermal Scope is built for long-range performance and precision, powered by the next-generation APEXVISION infrared imaging system. It features a high-resolution 640×512@12μm thermal sensor with an impressive <15mK NETD sensitivity, delivering ultra-clear thermal images in challenging conditions.

The powerful lens system offers a massive 2600m detection range, ideal for precision targeting at extended distances. Designed for rugged use, the TU650S includes a shutterless design, IP68 waterproof rating, dual-band Wi-Fi, and intuitive controls.

Everything you need for reliable performance in the field, the TU650S weighs 921g and includes a quick release scope mount for fast, repeatable mounting.

Rugged Construction: IP68-rated protection against dust and water.

Mounting: Includes a quick release scope mount (torque setting <2.5N·m / 22.13 in-lbs).

True Shutterless Performance: Advanced Shutterless 3.0 technology eliminates image freezing and audible clicks, delivering smooth, real-time viewing without interruptions in the field.

Specifications

Sensor

Resolution: 640x512
Pixel Pitch: 12μm
NETD: <15mK

Lens

Focal Length: 50mm

Display

Type: AMOLED
Resolution: 2560x2560
Size: 1.03"

Eyepiece

Diopter Adjustment: -5 to +5

Mount

Type: Quick release scope mount
Torque Setting: <2.5N·m / 22.13 in-lbs

Hardware Interface

Video Output: USB-C
Storage: Built-in photo and video capture, audio recording

System Features

Detection Range: Up to 2600m
Magnification: 3.7x~29.6x
Field of View: 8.8°x7.0° / 15x12m@100m
Multiple Colour Palettes: Yes
Wi-Fi Connectivity: Dual-band Wi-Fi via Guide App

Power and Battery

Battery Type: 18650x2 built-in + 18650x1 external
Battery Life: Approx. 14 hours
Charging: USB-C

Environmental and Durability

Ingress Protection: IP68
Operating Temperature: -20°C to +50°C

Physical Dimensions

Weight: 921g
Dimensions: 421 x 89 x 80mm
