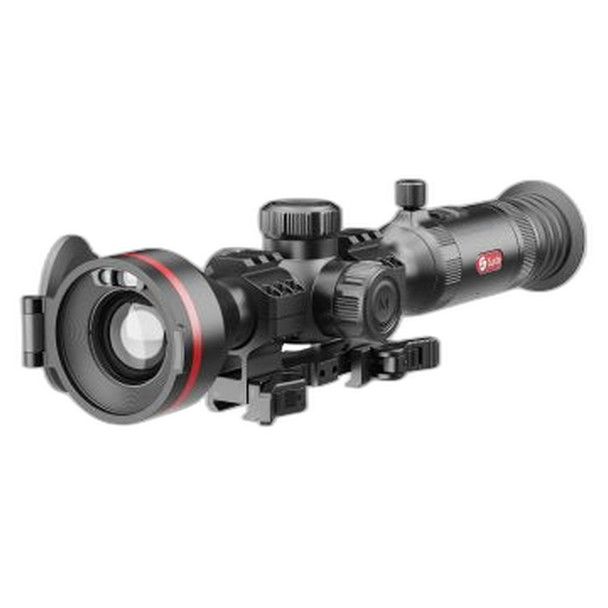

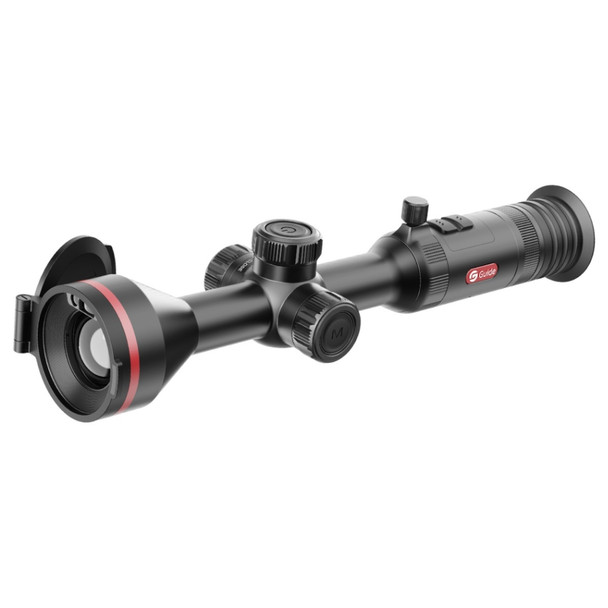

The Guide TU650LS is a top-tier model in the Guide TU 3.0 Series, powered by the next-generation APEXVISION infrared imaging system. It features a 640x512@12μm thermal sensor with an impressive <15mK NETD sensitivity, delivering ultra-clear thermal images in challenging conditions. The powerful lens system offers a 2600m detection range, while the built-in lens laser rangefinder gives fast, accurate distance readings up to 1200m, ideal for precision targeting at extended distances.

Rugged Construction: Designed for rugged use, the TU650LS features an IP68 waterproof rating and a durable metal housing built to withstand recoil, moisture, and demanding field conditions.

Mounting: Includes a Quick Release Scope Mount for fast, repeatable attachment and removal, secured to a torque specification of less than 2.5N·m (22.13in-lbs) to protect the mount and rail.

True Shutterless Performance: Advanced Shutterless 3.0 technology eliminates image freezing and audible clicks, delivering smooth, real-time viewing without interruption in the field (a shutter module is retained to maintain optimal image quality during startup and in extreme temperatures).

Specifications

Sensor

Resolution: 640x512
Pixel Pitch: 12μm
NETD: <15mK
Response Waveband: 8-14μm
Frame Rate: 50Hz

Lens

Focal Length: 50mm
Detection Range: Up to 2600m
Laser Rangefinder: Built-in, integrated into the lens, ranging up to 1200m

Display

Type: AMOLED
Size: 1.03"
Resolution: 2560x2560

Eyepiece

Diopter Adjustment: -5D to +5D
Magnification: 3.7x-29.6x
Field of View: 8.8° x 7.0° / 15 x 12m @ 100m

Mount

Type: Quick Release Scope Mount
Torque Spec: <2.5N·m (22.13in-lbs)

Hardware Interface

Connectivity: Dual-band Wi-Fi (2.4G/5G) for remote viewing and video/photo sharing via companion app
Power Supply: USB-C (Charge/USB2.0)

System Features

Shutterless Design: Yes
Waterproof Rating: IP68
Onboard Recording: Photo, video, and audio capture

Power and Battery

Battery: 2 x built-in 18650 batteries plus 1 external battery
Battery Life: Up to 14 hours

Environmental and Durability

Waterproof Rating: IP68
Operating Temperature: -20°C to 50°C

Physical Dimensions

Dimensions: 421 x 89 x 80mm
Weight: 935g
