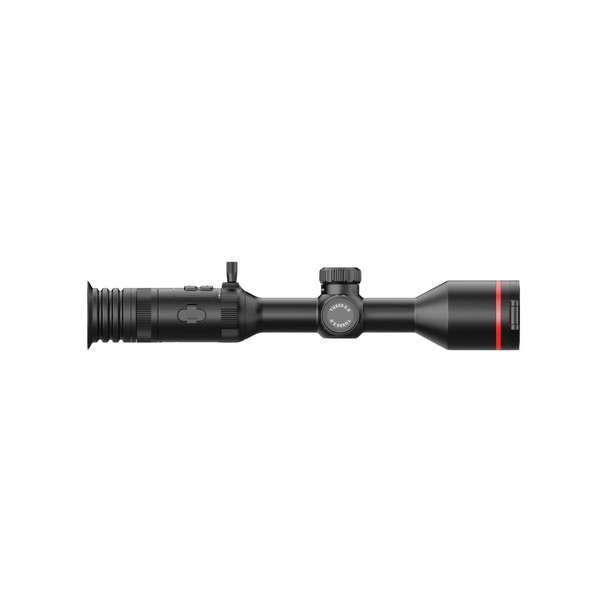

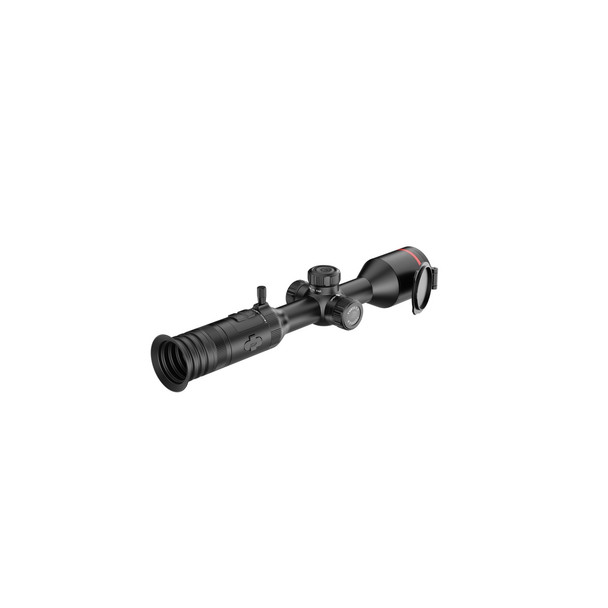

The Guide TU650 3.0 delivers uncompromising clarity, reliability and long-range performance all in a rugged, premium package. Plus this includes a quick release scope mount!

The TU650 is the flagship model in the Guide TU Gen 3 lineup, combining a high-resolution 640×512 thermal sensor with a powerful 50mm objective lens to deliver exceptional image quality and outstanding long-range detection. Designed in a Low Power Variable Optic (LPVO) style, it delivers the perfect balance of advanced performance and rugged reliability for hunters, professionals and tactical users.

Equipped with AI-enhanced imaging, a shutterless design, ergonomic controls and IP68-rated protection, the TU650 is built to perform in the toughest conditions. Dual-band Wi-Fi connectivity adds convenience for streaming, sharing and remote control via mobile devices.

Features:

• Ultimate Clarity: High-sensitivity infrared detector × Hyper-light intelligent image enhancement algorithm.
• Comfortable Viewing: Integrated high-resolution AMOLED display provides crisp, detailed thermal imagery while reducing eye fatigue.
• Shutterless Design: Innovative 3.0 shutterless design ensures smooth, uninterrupted visuals.
• Seamless Control: Centrally positioned focus wheel & zoom lever, ergonomically designed for effortless operation.
• Long-Range Performance: Powerful 50mm F1.0 objective lens delivers an impressive detection range of up to 2600 metres.
• Rugged Design: IP68-rated, shock resistance up to 6000J.
• Smart Connectivity: Dual-band Wi-Fi connection, OTA upgrade via TargetIR APP.

Specifications:

• SENSOR
• Type: Uncooled VOx Infrared Detector, 8 to 14 μm
• Resolution: 640×512, 12 μm
• NETD: 18mK
• Frame Rate: 50Hz
• LENS
• Focal Length: 50mm, F1.0
• FOA (Field of Angle): 8.2° × 5.0°
• FOV m@100m: 14 × 9
• Magnification: 3.9x~31.2x
• Detection Range: 2600m / 2800yd
• Focus: Manual
• DISPLAY
• Display Type: 0.49" AMOLED, 1920×1080
• Colour Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• HARDWARE
• WIFI: 2.4G, 5G
• Interface: USB-C (Charge/USB2.0)
• Tube Diameter: Standard 30mm
• Others: Microphone, Bluetooth
• SYSTEM
• Recording Function: Photo / Video (Audio recording included)
• Memory Capacity: 128GB
• POWER
• Battery Type: 18500 ×1 Battery (Built-in) and 18650 ×1 Battery (External)
• Operating Time: 12 hours
• ENVIRONMENTAL
• Operating Temperature: -20°C to 50°C / -4°F to +122°F
• Shock: 6000J / 1200G
• Encapsulation: IP68
• PHYSICAL
• Weight: 776g
• Size: 377mm × 89mm × 76mm

Includes:

• Thermal Device
• Lens Cover
• Eye Mask
• Quick-Release Scope Mount
• Carry Bag
• 2× 18650 Battery
• Battery Charger
• 5V 2A Adapter (US or UK or Australia or Europe)
• USB-A to USB-C Cable
• Quick Start Guide
• Warranty Card
