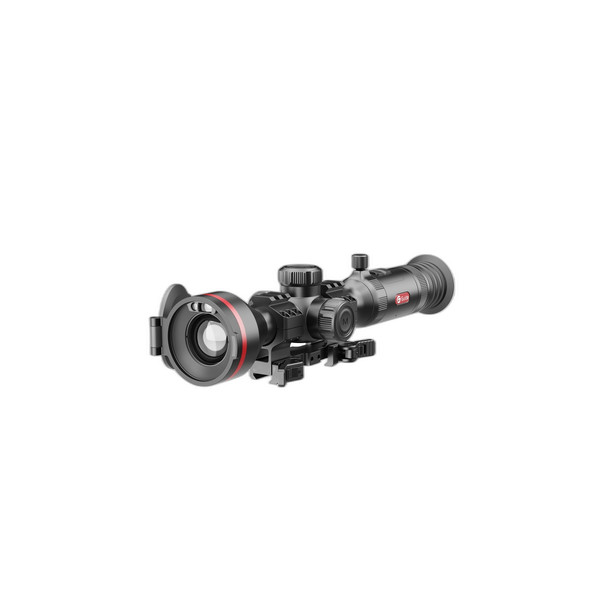

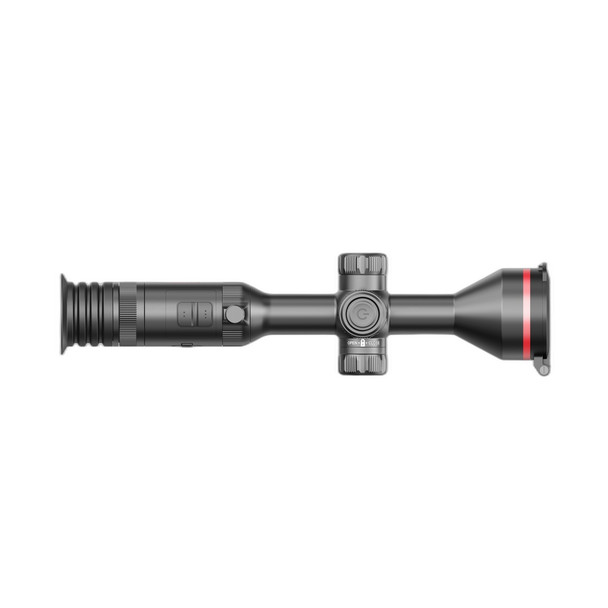

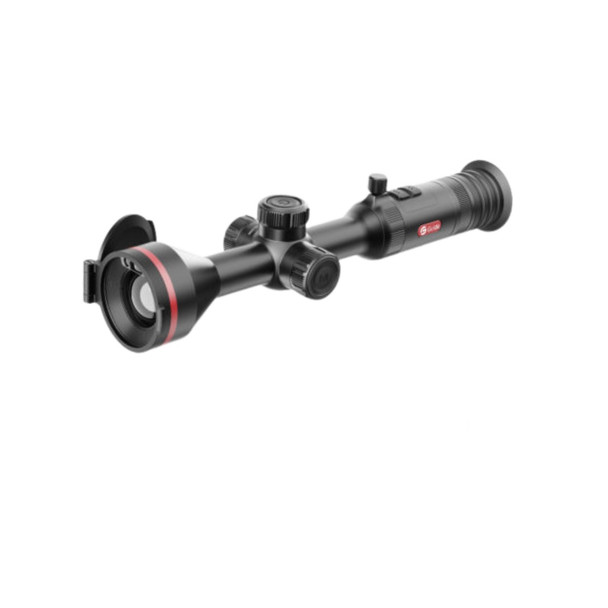

The Guide TU435P 3.0 delivers uncompromising clarity, reliability and long-range precision all in a rugged, feature-packed package. Plus this includes a quick release scope mount!

The TU435P is designed for hunters, professionals and tactical users seeking outstanding long-range thermal performance with the added confidence of an integrated laser rangefinder. Built around Guide's latest Generation 3 platform, it combines AI-enhanced imaging, an ultra-sensitive thermal sensor and innovative shutterless technology to deliver exceptionally smooth, detailed thermal imagery in all conditions.

Equipped with ergonomic controls, a premium AMOLED display, integrated laser rangefinder and IP68-rated protection, the TU435P is built to perform in the toughest environments. Dual-band Wi-Fi connectivity adds convenience for streaming, sharing and remote control via mobile devices.

Features:

Ultimate Clarity: High-sensitivity infrared detector × Hyper-light intelligent image enhancement algorithm.

Comfortable Viewing: Integrated high-resolution AMOLED display delivers crisp imaging with reduced eye fatigue.

Shutterless Design: Innovative 3.0 shutterless design ensures smooth, uninterrupted visuals.

Seamless Control: Centrally positioned focus wheel & zoom lever, ergonomically designed for effortless operation.

Integrated Laser Rangefinder: Built-in 1000m laser rangefinder provides fast and accurate distance measurement.

Long-Range Performance: Powerful 35mm F1.0 objective lens delivers exceptional image quality and extended detection capability.

Rugged Design: IP68-rated, shock resistance up to 6000J.

Smart Connectivity: Dual-band Wi-Fi connection, OTA upgrade via TargetIR APP.

Specifications:

SENSOR

Type: Uncooled VOx Infrared Detector, 8 to 14 μm

Resolution: 400×300, 12 μm

NETD: ≤18mK

Frame Rate: 50Hz

LENS

Focal Length: 35mm, F1.0

FOA (Field of Angle): 7.4° × 4.4°

FOV m@100m: 13 × 8

Magnification: 4.4x~17.6x

Detection Range: 1800m

Focus: Manual

DISPLAY

Display Type: 0.49" AMOLED, 1920×1080

Colour Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia

HARDWARE

Laser Rangefinder: 1000m

WIFI: 2.4G, 5G

Interface: USB-C (Charge/USB2.0)

Tube Diameter: Standard 30mm

Others: Microphone, Bluetooth

SYSTEM

Recording Function: Photo/Video (Audio recording included)

Memory Capacity: 64GB

POWER

Battery Type: 18650 ×1 Battery (Built-in) and 18650 ×1 Battery (External)

Operating Time: Up to 12 hours

ENVIRONMENTAL

Operating Temperature: -20°C to 50°C / -4°F to +122°F

Shock: 6000J

Encapsulation: IP68

PHYSICAL

Weight: 730g

Size: 358mm × 89mm × 80mm

Includes:

• Thermal Device

• Lens Cap

• Quick-Release Scope Mount

• Carry Bag

• 2× 18650 Batteries

• Battery Charger

• 5V 2A Adapter (US or UK or Australia or Europe)

• USB-A to USB-C Cable

• Quick Start Guide

• Warranty Card
