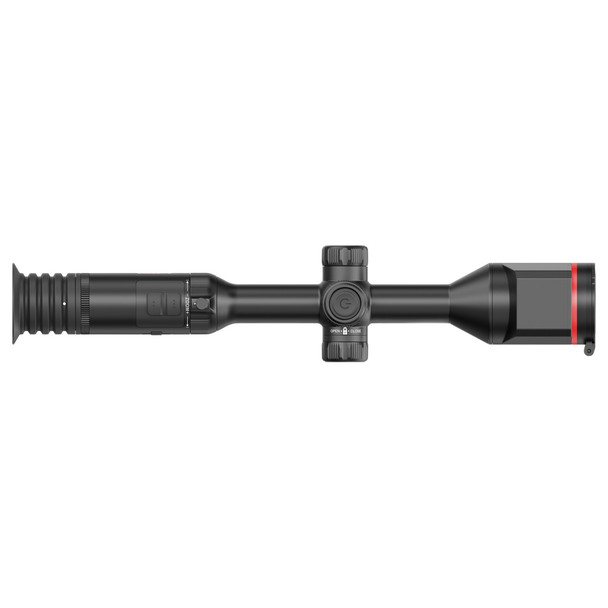

The Guide TU1260MS Thermal Scope is the flagship model in Guide's TU Muo 3.0 Series, combining advanced thermal and night vision technology into one rugged, all-weather riflescope.

Powered by the next-generation APEXVISION infrared imaging system, the TU1260MS features a powerful 1280×1024@12µm thermal sensor with 15mK NETD sensitivity and Hyper-Light enhancement for unmatched infrared imaging even in the toughest conditions. A built-in laser rangefinder offers pinpoint accuracy out to 1,500 metres, giving confidence at any distance.

The scope combines thermal imaging with visible light technology, with dedicated day, night and low-light modes for reliable performance in any environment. Its 1.03-inch AMOLED display delivers a 2560×2560 resolution for crisp, detailed visuals, while 60mm eye relief and AI-enhanced imaging ensure comfortable viewing during extended use.

Rugged Construction: IP68-rated protection against dust and water, with shock resistance up to 6,000J.

Mounting: Includes a Quick Release Scope Mount, torque rated at <2.5N·m / 22.13 in-lbs, plus an IR Torch and 30mm bracket.

Specifications

Sensor

Type: Uncooled VOx infrared detector, 8–14µm
Resolution: 1280 × 1024 @ 12µm
NETD: 15mK
Frame Rate: 50Hz

Lens

Thermal Lens: 60mm, F0.9
Digital Lens: 35mm, F4.0
Field of View at 100m: Thermal 14.6° × 11.7°
Magnification: Thermal 2.3×–36.8×; Digital 5.1×–81.6×
Detection Range: Thermal up to 3,200m; Digital up to 330m

Laser Rangefinder

Range: Up to 1,500m

Display

Display Type: 1.03-inch AMOLED
Display Resolution: 2560 × 2560
Eye Relief: 60mm
Colour Palettes: IR – White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot and Sepia; Visible – Day, Night and Low-Light

Eyepiece

Diopter Adjustment: -5 to +5

Mount

Included Mount: Quick Release Scope Mount
Mount Torque Rating: <2.5N·m / 22.13 in-lbs
Included Accessory: IR Torch with 30mm bracket

Hardware Interface

Interface: USB Type-C (Charge/USB2.0)
Wireless: Wi-Fi hotspot

System Features

Recording: Video capture, with audio
Image Processing: APEXVISION with Hyper-Light algorithm

Power and Battery

Battery Type: 18650×2 built-in batteries plus 18650×1 external battery
Operating Time: Up to 9 hours
Charging: USB-C

Environmental and Durability

Operating Temperature: -20°C to 50°C
Protection Rating: IP68
Shock Resistance: Up to 6,000J

Physical Dimensions

Weight: 1145g
Dimensions: 450 × 90 × 91mm
