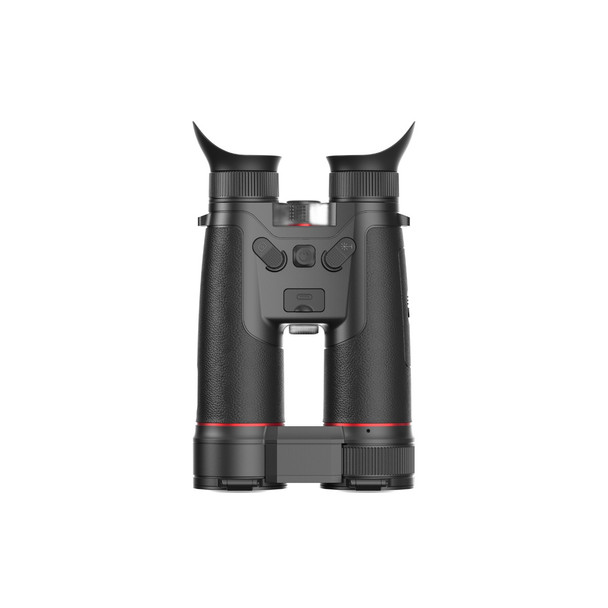

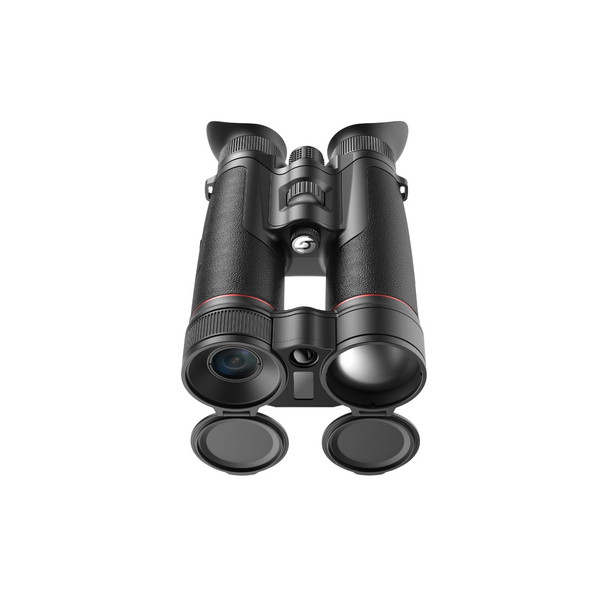

The Guide TN650M 2.0 LRF Multispectral Thermal Binoculars combine high-sensitivity thermal imaging with ultra-HD night vision in one rugged, compact binocular system.

Designed for hunters, wildlife observers and tactical users, the TN650M 2.0 uses a 640×512 thermal detector paired with a 3840×2160 low-light CMOS sensor, allowing you to switch between thermal, visible and fusion image modes for improved detection and recognition in the field.

With a 1500m laser rangefinder, GPS, digital compass, dual-band Wi-Fi, 256GB internal memory and IP67-rated protection, the TN650M 2.0 is built for serious long-range observation in tough outdoor conditions.

Features:

• Combined Thermal & Night Vision: Dual-sensor system combines a 640×512 thermal detector with a 3840×2160 low-light CMOS sensor.
• Long-Range Detection: Thermal detection range up to 2600 metres and digital detection range up to 950 metres.
• Built-In Laser Rangefinder: Integrated laser rangefinder measures distances up to 1500 metres.
• High-Sensitivity Thermal Sensor: 12μm thermal detector with 18mK NETD for detailed thermal imaging.
• Multiple Image Modes: Switch between IR, Visible and Fusion modes for improved situational awareness.
• Ultra-HD Digital Sensor: 3840×2160 low-light CMOS sensor provides clear digital night vision imagery.
• Full-HD AMOLED Display: 0.49" AMOLED display with 1920×1080 resolution for crisp viewing.
• One-Handed Operation: Multi-function rotary controls and an updated UI make operation simple and intuitive.
• Smart Field Tools: Integrated GPS, digital compass and gyroscope support accurate field navigation and positioning.
• Smart Connectivity: Dual-band Wi-Fi, Bluetooth and USB-C connection for convenient use in the field.
• Photo & Video Recording: Capture photos and video, including audio recording, with 256GB internal storage.
• Rugged Outdoor Design: IP67-rated protection for dependable performance outdoors.

Specifications:

• SENSOR
• Type: Thermal: Uncooled VOx Infrared Detector, 8 to 14μm; Digital: CMOS
• Resolution: Thermal: 640×512@12μm; Digital: 3840×2160@2μm
• NETD: 18mK
• Frame Rate: 50Hz
• LENS
• Objective Lens: Thermal: 50mm, F1.0; Digital: 33mm, F1.4
• Field of View: Thermal: 8.2° × 5.0°; Digital: 12.5° × 7.5°
• FOV m@100m: Thermal: 14 × 9; Digital: 22 × 13
• Magnification: Thermal: 3.9x~31.2x; Digital: 2.6x~20.8x
• Detection Range: Thermal: 2600m / 2800yd; Digital: 950m / 1000yd
• Focus: Manual
• DISPLAY
• Display Type: 0.49" AMOLED, 1920×1080
• Colour Palettes: IR: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia; Visible: Day, Night, Low-light
• Image Modes: IR, Visible, Fusion 1, Fusion 2, Fusion 3
• Eyepiece: Eye Relief 20mm; Diopter -6 to +6; Interpupillary Distance Adjustment 58~72mm; Zoom 13.8x
• HARDWARE
• Laser Rangefinder: 1500m / 1630yd
• WIFI: 2.4G, 5G
• Interface: USB-C (Support charging)
• Others: Microphone, Compass, Gyroscope, Bluetooth
• SYSTEM
• Recording Function: Photo / Video (Audio recording included)
• Memory Capacity: 256GB
• POWER
• Battery Type: Customized Battery (Built-in) and 18650 ×1 Battery (External)
• Operating Time: 5 hours
• ENVIRONMENTAL
• Operating Temperature: -20°C to 50°C / -4°F to +122°F
• Encapsulation: IP67
• PHYSICAL
• Weight: 865g
• Size: 226mm × 133mm × 64mm

Includes:

• Thermal Device
• Eye Mask
• Neck Strap
• Carry Bag
• 18650 Battery ×1
• Battery Charger
• 5V 2A Adapter (US or UK or Australia or Europe)
• USB-A to USB-C Cable
• Quick Start Guide
• Warranty Card
