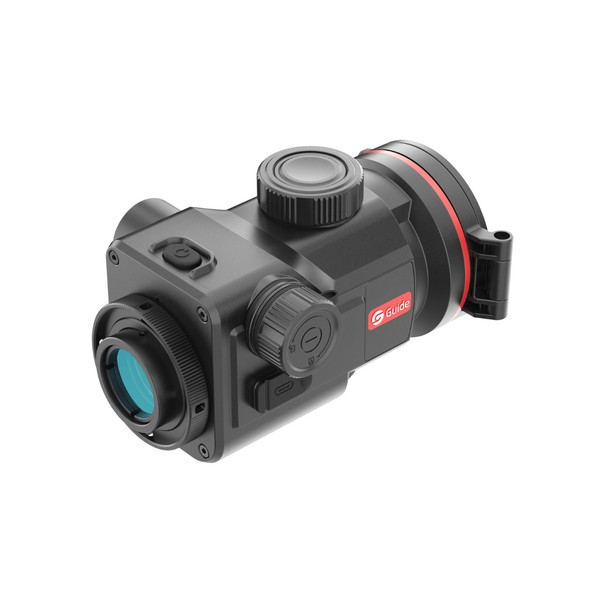

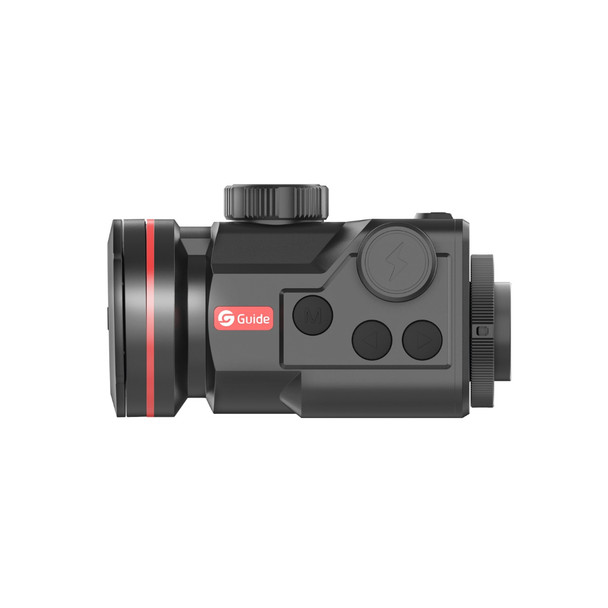

The Guide TB650P 2.0 Thermal Clip-On is a next-generation thermal clip-on built for hunters who demand precision, stealth and long-range performance.

Designed to convert your existing day scope into a powerful thermal imaging system, the TB650P 2.0 combines a high-resolution 640×512 thermal detector with a 50mm objective lens, Full-HD AMOLED display and integrated in-lens laser rangefinder. With a detection range of up to 2600 metres and laser ranging up to 1500 metres, it delivers serious capability in a compact field-ready package.

Weighing under 490g, the TB650P 2.0 features G-Zero shutterless technology, Guide’s Hyper-Light image enhancement algorithm, dual-band Wi-Fi, replaceable 18650 battery power and IP68-rated protection for reliable use in tough outdoor conditions.

Features:

• Built-In Lens LRF: Integrated laser rangefinder built into the lens, with ranging up to 1500 metres.
• Long-Range Detection: 50mm F1.0 objective lens delivers a detection range of up to 2600 metres.
• High-Sensitivity Thermal Sensor: 640×512 thermal detector with 12μm pixel pitch for detailed thermal imaging.
• Excellent Image Clarity: 18mK NETD and Hyper-Light image enhancement algorithm help produce clear, detailed thermal images.
• G-Zero Shutterless Technology: True zero-shutter calibration helps provide smooth, uninterrupted visuals.
• Lightweight & Portable: Compact housing weighs approximately 490g, helping keep your rifle setup balanced and easy to handle.
• Ultra-Precise Zeroing: 1.22cm@100m click adjustment, compatible with daylight optics up to 15x magnification.
• Full-HD AMOLED Display: 0.39" AMOLED display with 1920×1080 resolution for crisp viewing.
• Smart Connectivity: Dual-band Wi-Fi, Bluetooth and USB-C connection for convenient use in the field.
• Photo & Video Recording: Capture photos and video, including audio recording.
• Rugged Outdoor Design: IP68-rated protection and 6000J shock resistance for dependable performance outdoors.
• Replaceable Battery System: Runs on a single replaceable 18650 battery, with 2 batteries included.

Specifications:

• SENSOR
• Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 640×512, 12μm
• NETD: 18mK
• Frame Rate: 50Hz
• LENS
• Objective Lens: 50mm, F1.0
• Field of View: 8.8° × 6.6°
• FOV m@100m: 15 × 11
• Magnification: 1x
• Detection Range: 2600m / 2800yd
• Focus: Manual
• DISPLAY
• Display Type: 0.39" AMOLED, 1920×1080
• Colour Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye Relief 20mm; Zoom 6.7x
• HARDWARE
• Laser Rangefinder: 1500m / 1630yd
• WIFI: 2.4G, 5G
• Interface: USB-C (Power Supply/USB2.0)
• Others: Microphone, Bluetooth
• SYSTEM
• Recording Function: Photo / Video (Audio recording included)
• Memory Capacity: 64GB
• POWER
• Battery Type: Single replaceable 18650 battery
• Operating Time: 5 hours
• ENVIRONMENTAL
• Operating Temperature: -20°C to 50°C / -4°F to +122°F
• Shock: 6000J
• Encapsulation: IP68
• PHYSICAL
• Weight: 490g
• Size: 144mm × 86mm × 79mm

Includes:

• Thermal Device
• 2× 18650 Battery
• Battery Charger
• USB-A to USB-C Cable
• Quick Start Guide
• Warranty Card
