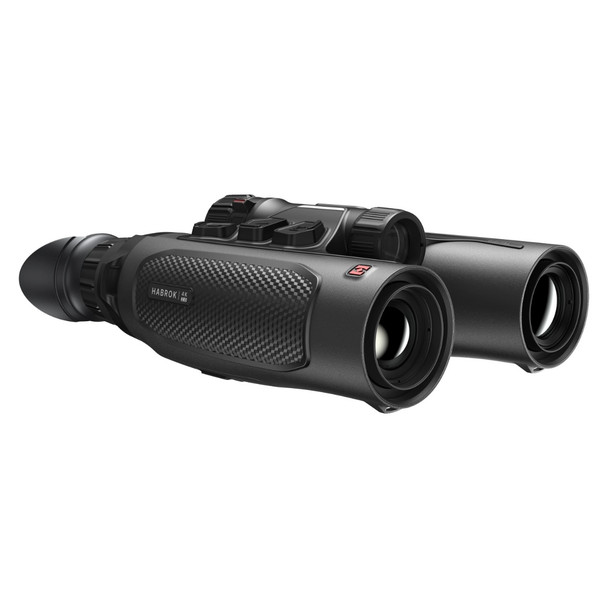

The HIKMICRO Habrok 4K HH35L 2.0 is the step-up model in the Habrok 4K 2.0 multi-spectrum range, pairing a larger 384 × 288 thermal core with a 35mm F1.0 lens for thermal detection out to 1800m. It shares the 2.0 platform’s 3840 × 2160 4K CMOS sensor behind a 60mm F2.2 optical lens, giving 5.5× to 22× digital zoom for full-colour daytime glassing and IR-assisted night viewing out to 400m. With NETD below 15mK and HIKMICRO’s Shutterless Image System, the thermal channel delivers a clean, uninterrupted picture with no shutter clicks or image freezes – ideal for picking up game through light fog, drizzle or heavy cover. A built-in 1000m laser rangefinder, rear focus wheel, swappable 940nm and 850nm IR illuminators and an IP67 housing round out a compact 900g binocular built for hunters, wildlife observers and search-and-rescue teams who need one device from first light to full dark.

Features:

• 384 × 288 (12µm) VOx thermal detector with NETD < 15mK
• 35mm F1.0 thermal lens — detection range up to 1800m
• 4.0× to 20.0× thermal magnification with 2/3/4/5× zoom steps
• 3840 × 2160 4K CMOS digital detector
• 60mm F2.2 optical lens with 5.5× to 22× digital zoom
• Night viewing range up to 400m with interchangeable 940nm (default) and 850nm IR illuminators
• HIKMICRO Shutterless Image System (HSIS)
• Built-in 1000m laser rangefinder with ±1m accuracy
• Rear focus wheel for quick one-handed focusing
• 1920 × 1080 0.49" OLED display
• Electronic image stabilisation on thermal and digital channels (from 2×)
• Hot Track, Picture-in-Picture (PIP) and Zoom Pro
• Built-in digital magnetic compass
• 64GB built-in EMMC storage with video, snapshot and audio recording
• IP67 dust and waterproof rating
• 900g compact, ergonomic design

Specifications:

• THERMAL MODULE
• Image Sensor: VOx Uncooled Focal Plane Array
• Max Resolution: 384 × 288
• Frame Rate: 50Hz
• Pixel Interval: 12µm
• Response Waveband: 8µm to 14µm
• NETD: Less than 15mK (@25°C, F#=1.0)
• Lens (Focal Length): 35mm, F1.0
• Focus Mode: Rear Focus Wheel
• Detection Range: 1800m
• Min. Focusing Distance: 5m
• Magnification: 4.0× to 20.0× (5×), supports 2/3/4/5× zoom step
• Field of View: 7.53° × 5.65° / 13.16m × 9.87m @100m
• OPTICAL MODULE
• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max Resolution: 3840 × 2160
• Focal Length: 60mm, F2.2
• Focus Mode: Rear Focus Wheel
• Min. Working Distance: 8m
• Magnification: 5.5× to 22.0× (4×), supports 2/3/4/5× zoom step
• Field of View: 7.3° × 4.1° / 12.8m × 7.2m @100m
• IR Illuminator Wavelength: 940nm (default), 850nm (replaceable)
• Smart IR: Yes
• Viewing Range at Night: 400m
• IMAGE DISPLAY
• Display: 1920 × 1080, 0.49-inch OLED
• Palettes: Thermal — Black Hot, White Hot, Red Hot, Red Monochrome, Green Monochrome, Fusion; Optical — Day, Night, Auto, Green, Yellow
• Exit Pupil: 8mm
• Eye Relief: 15mm
• Diopter (Range): -5D to +3D
• Electronic Image Stabilisation: Thermal and digital channels, from 2×
• Tone Adjustment: Cold, Warm
• Contrast / Brightness Adjustment: Yes
• Zoom Pro: Yes
• HSIS (Shutterless Image System): Yes
• SYSTEM
• Record Video / Capture Snapshot / Audio Recording: Yes
• Storage: Built-In EMMC (64GB)
• Local Album: Yes
• PIP: Yes
• Hotspot: Yes
• Hot Track: Yes
• Digital Magnetic Compass: Yes
• Standby Mode: Yes
• POWER SUPPLY
• Battery Type: Replaceable and Rechargeable Li-ion Battery
• Battery Operating Time: ≥6.5 hours continuous (@25°C, hotspot and LRF on)
• Power Supply: 5VDC/2A, USB Type-C — supports external power and direct charging
• GENERAL
• Protection Level: IP67
• Dimensions: 143.1mm × 74.8mm × 223.3mm
• Weight: 900g without batteries
• Interpupillary Adjustment: 60mm to 74mm
• Mounting Adapter: 1/4"-20-UNC
• Working Temperature: -30°C to 55°C (-22°F to 131°F)
• LASER RANGEFINDER
• Safety Class for Laser: Class 1
• Wavelength: 905nm
• Max. Measuring Range: 1000m
• Measurement Accuracy: ±1m
• Min. Measuring Range: 10m
