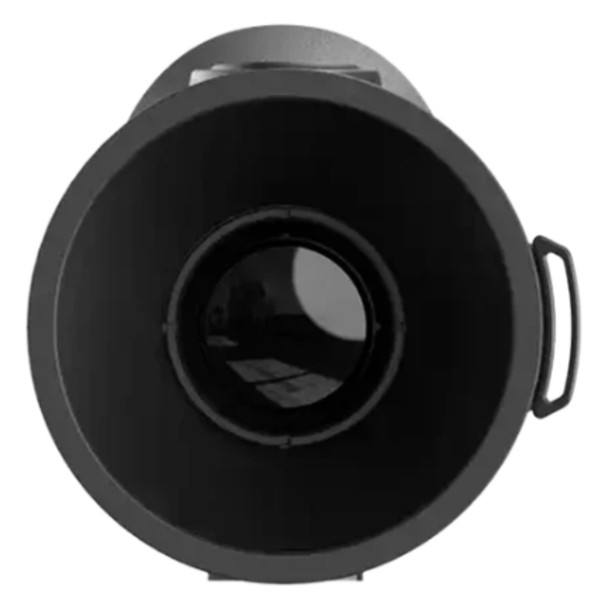

The Guide TJ630 Thermal Monocular pairs a high-resolution 640×512 @12μm thermal sensor with a 35mm F1.0 lens and 20mK thermal sensitivity to reveal subtle temperature differences, with a detection range of up to 1800m.

A Full HD 1920×1080 AMOLED display, 64GB storage and audio-enabled video recording make it easy to view and capture your observations, while two replaceable 18650 batteries provide up to 10 hours of operation.

Features:

• 640×512px 12μm thermal detector
• NETD 20mK
• 35mm F1.0 lens
• Full-HD 1920×1080 AMOLED display
• 1800m detection range
• Buttons and battery designed for blind operation in the dark
• Adaptable for left- and right-handed use
• Video recording including sound
• IP67, up to 10 hours of operation

Specifications:

• SENSOR
• Type: Uncooled Infrared Detector, 8 to 14 μm
• Resolution: 640×512@12μm
• NETD: 20mK
• Frame Rate: 50Hz
• LENS
• Objective Lens: 35mm, F1.0
• FOV: 12.5°×10° (22m x 17m @100m)
• Magnification: 2.66x~21.28x
• Detection Range: 1800m
• DISPLAY
• Display Type: 0.39" AMOLED 1920x1080
• Colour Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• HARDWARE & SYSTEM
• WiFi Hotspot: Yes
• Interface: USB Type-C (Power supply/USB2.0)
• Recording Function: Photo/Video (Audio recording included)
• Memory Capacity: 64GB
• POWER
• Battery Type: 2 replaceable 18650 batteries
• Operating Time: 10 hours
• ENVIRONMENTAL & PHYSICAL
• Operating Temperature: -20°C to 50°C
• Encapsulation: IP67
• Weight: 502g
• Size: 234mm x 66mm x 66mm

Includes:

• Thermal Monocular
• Wrist Strap
• Battery Charger
• 2x 18650 Battery
• 5V 2A Adapter
• USB Type-C Cable
• Quick Use Guide
• Warranty Card
