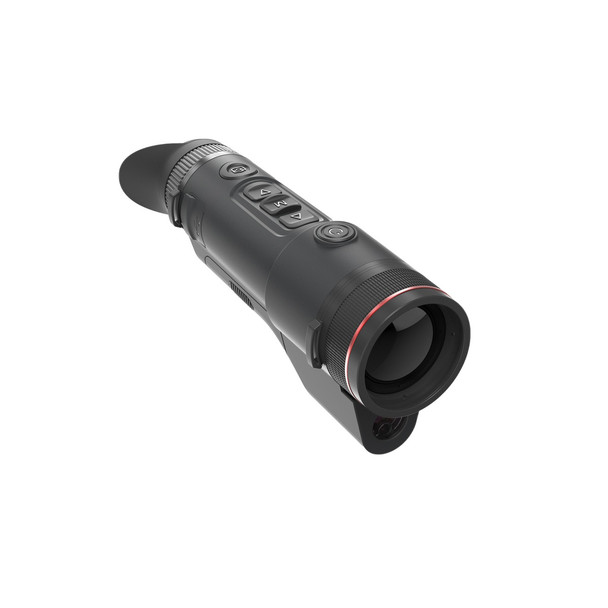

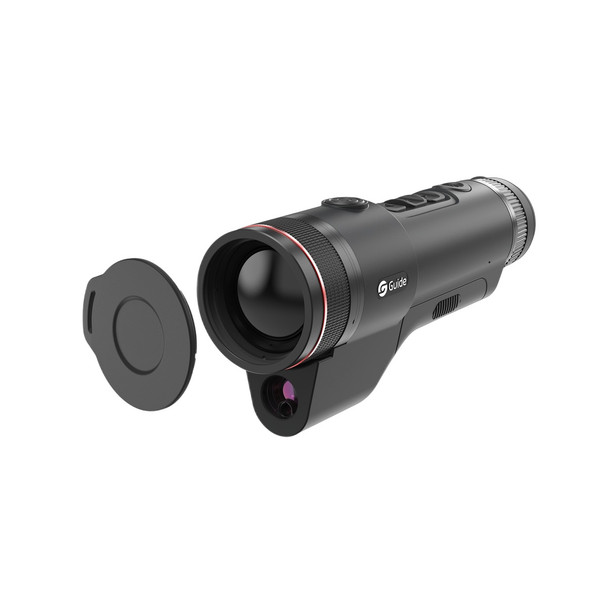

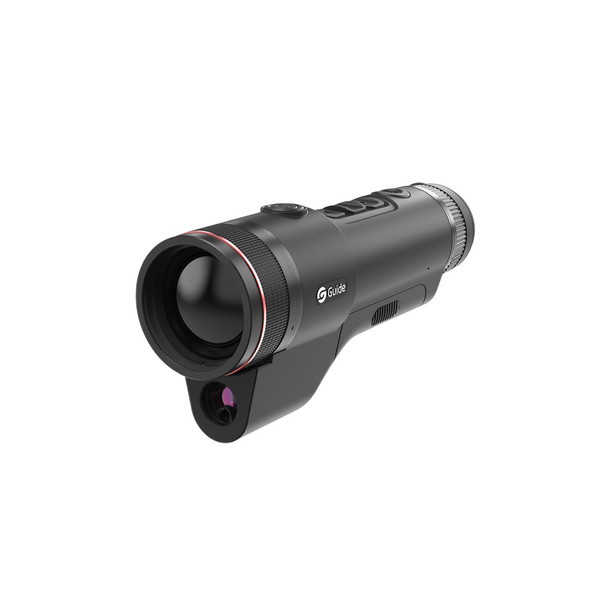

The Guide TJ630LP LRF Thermal Monocular delivers powerful long-range thermal imaging in a rugged handheld design, with a high-resolution thermal sensor, built-in laser rangefinder and large AMOLED display.

Designed for hunting, wildlife observation and surveillance, the TJ630LP combines a 640×512 thermal detector with a 35mm F1.0 objective lens to deliver excellent image clarity and a detection range of up to 1800 metres. The built-in 1500m laser rangefinder helps quickly measure distance in the field.

With photo and video recording, audio capture, dual-band Wi-Fi, Bluetooth connectivity, replaceable 18650 batteries and IP67-rated protection, the TJ630LP is built for reliable performance during serious night-time observation.

Features:

• Long-Range Detection: 35mm F1.0 objective lens delivers a detection range of up to 1800 metres.
• Built-In Laser Rangefinder: Integrated laser rangefinder measures distances up to 1500 metres.
• High-Sensitivity Thermal Sensor: 640×512 thermal detector with 12μm pixel pitch for detailed thermal imaging.
• Excellent Image Clarity: 20mK NETD helps distinguish fine temperature differences for clearer images.
• Large AMOLED Display: 0.5" AMOLED display with 1600×1200 resolution for comfortable, detailed viewing.
• Seven Colour Palettes: Choose from White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot and Sepia.
• Smart Connectivity: Dual-band Wi-Fi, Bluetooth and USB-C connection for convenient use in the field.
• Photo & Video Recording: Capture photos and video, including audio recording.
• Ambidextrous Design: Designed for comfortable left or right-handed operation.
• Rugged Outdoor Design: IP67-rated protection for dependable performance outdoors.
• Replaceable Battery System: Runs on 2 replaceable 18650 batteries with up to 9 hours operating time.

Specifications:

• SENSOR
• Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 640×512, 12μm
• NETD: 20mK
• Frame Rate: 50Hz
• LENS
• Objective Lens: 35mm, F1.0
• Field of View: 12.5° × 10.0°
• FOV m@100m: 22 × 17
• Magnification: 3.31x~26.48x
• Detection Range: 1800m / 1950yd
• Focus: Manual
• DISPLAY
• Display Type: 0.5" AMOLED, 1600×1200
• Colour Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye Relief 16mm; Diopter -6 to +6; Zoom 18x
• HARDWARE
• Laser Rangefinder: 1500m / 1630yd
• WIFI: 2.4G, 5G
• Interface: USB Type-C (Power Supply/USB2.0)
• Others: Microphone, Compass, Gyroscope, Bluetooth
• SYSTEM
• Recording Function: Photo / Video (Audio recording included)
• Memory Capacity: 64GB
• POWER
• Battery Type: 2 Replaceable 18650 Batteries
• Operating Time: 9 hours
• ENVIRONMENTAL
• Operating Temperature: -20°C to 50°C / -4°F to +122°F
• Encapsulation: IP67
• PHYSICAL
• Weight: 584g
• Size: 247mm × 101mm × 70mm

Includes:

• Thermal Device
• USB-C Cable
• Hand Strap
• 2× 18650 Battery
• Battery Charger
• 5V 2A Adapter
• Quick Start Guide
• Warranty Card
