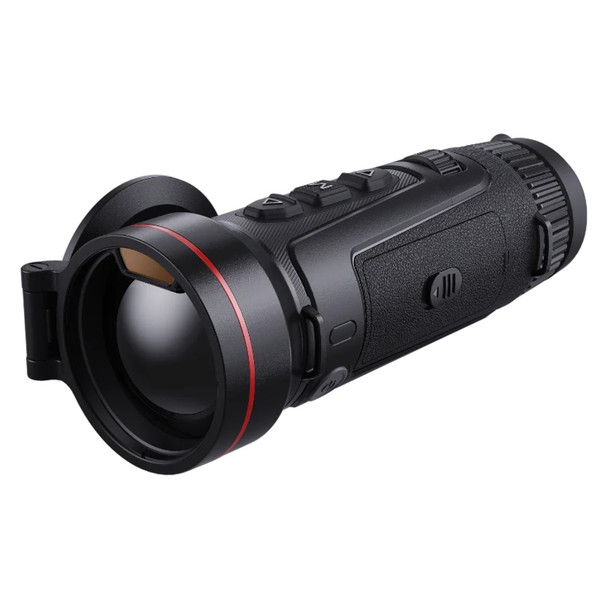

The Guide Kodiak TK650L 3.0 is the long-range model in Guide’s new Kodiak 3.0 series, packing a 640 × 512 @ 12µm thermal detector, a fast 50mm F0.9 lens and a built-in 1200m laser rangefinder into a compact monocular weighing just 593g. Running on the complete ApexVision S1 imaging system with an NETD of ≤15mK, it resolves fine temperature differences to pick out heat signatures at up to 2600m, even in fog, rain or heavy cover. The standout feature is the huge 1.03" AMOLED display with 2560 × 2560 resolution, giving a big, sharp, high-contrast view, while shutterless 3.0 technology and a 50Hz frame rate keep the image smooth and uninterrupted as you track moving game. With a 3-second start-up, an ambidextrous body with a physical focus wheel, 64GB of onboard recording, two supplied batteries for up to 11 hours of combined runtime and an IP67 rating, the TK650L 3.0 is built for hunters, pest controllers and wildlife observers who need serious range without the bulk.

Features:

• 640 × 512 @ 12µm uncooled VOx detector with NETD ≤ 15mK
• Complete ApexVision S1 architecture – ApexCore S1 detector, Nexus 1.0 platform and Hyper-Light 3.0 algorithm
• 50mm F0.9 objective lens – detection range up to 2600m
• 4× to 32× magnification
• Built-in laser rangefinder – measures out to 1200m
• Huge 1.03" AMOLED display with 2560 × 2560 resolution
• Shutterless 3.0 technology with a 50Hz frame rate for smooth, uninterrupted viewing
• 3-second fast start-up
• Symmetrical, ambidextrous body with a physical focus wheel for one-handed use
• 64GB built-in storage for photo and video recording with audio
• Wi-Fi (2.4GHz / 5GHz) and Bluetooth connectivity
• Replaceable dedicated battery – up to 5.5 hours per battery, two batteries supplied for up to 11 hours combined
• IP67 waterproof and dustproof rating
• Compact and lightweight at just 593g (battery included)

Specifications:

• SENSOR
• Core Technology: ApexVision S1 (ApexCore S1 detector, Nexus 1.0 platform, Hyper-Light 3.0 algorithm)
• Detector Type: Uncooled VOx IR Detector, 8–14µm
• Resolution: 640 × 512 @ 12µm
• NETD: ≤ 15mK
• Frame Rate: 50Hz
• LENS
• Objective Lens: 50mm, F0.9
• Field of View: 8.8° × 7.0° / 15.4m × 12.3m @100m
• Magnification: 4× to 32×
• Detection Range: Up to 2600m / 2800yd
• Focus: Manual (focus wheel)
• DISPLAY
• Display Type: 1.03" AMOLED, 2560 × 2560
• Colour Palettes: White Hot, Black Hot, Amber Sepia, Red Hot, Iron Red, Blue Hot, Green Hot
• Eye Relief: 30mm
• Diopter: -6D to +6D
• HARDWARE
• Laser Rangefinder: 1200m / 1300yd
• Wi-Fi: 2.4GHz, 5GHz
• Interface: USB-C (power supply / USB 2.0)
• Others: Microphone, Bluetooth
• SYSTEM
• Recording: Photo / video recording (with audio)
• Storage: 64GB
• Start-up Time: 3 seconds
• POWER
• Battery Type: 1 × replaceable dedicated battery (2 supplied)
• Operating Time: Up to 5.5 hours per battery (up to 11 hours with both supplied batteries)
• ENVIRONMENTAL
• Operating Temperature: -20°C to 50°C (-4°F to 122°F)
• Protection Level: IP67
• PHYSICAL
• Weight: 593g (battery included)
• Dimensions: 191 × 67 × 79mm

Includes:

• 1x Guide Kodiak TK650L 3.0 Thermal Monocular
• 1x Hand Strap
• 1x Neck Strap
• 1x Carry Bag
• 1x Lint-Free Cloth
• 2x Dedicated Battery
• 1x 5V 2A Adapter
• 1x USB-A to USB-C Cable
• 1x Quick Start Guide
• 1x Warranty Card
