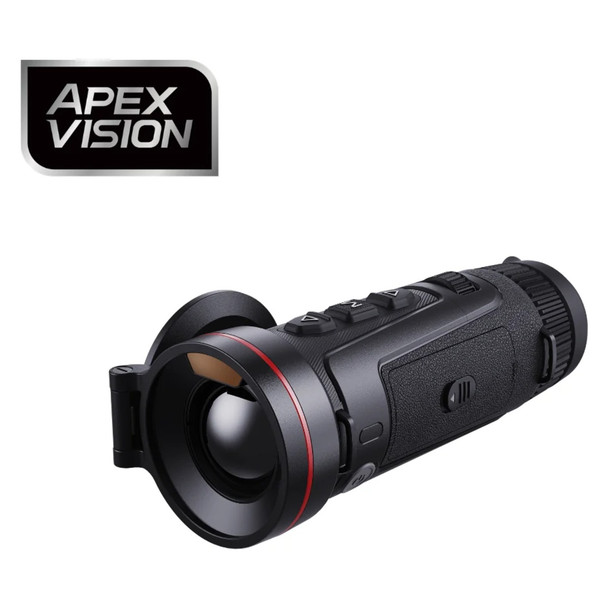

The Guide Kodiak TK635L 3.0 brings Guide’s latest ApexVision S1 thermal technology to one of the lightest laser-ranging monoculars in its class, weighing just 524g – roughly the weight of a bottle of water. Its 640 × 512 @ 12µm detector (NETD ≤15mK) is paired with a 35mm F0.9 lens that gives a wide 12.5° field of view for fast scanning, while still detecting heat signatures out to 1800m. A built-in 1200m laser rangefinder lets you check distance on the spot, and the huge 1.03" AMOLED display with 2560 × 2560 resolution delivers a big, crisp, high-contrast picture. Shutterless 3.0 technology and a 50Hz frame rate keep the view smooth and uninterrupted, and with a 3-second start-up, an ambidextrous body with a physical focus wheel, 64GB of onboard recording, two supplied batteries for up to 11 hours of combined runtime and an IP67 rating, the TK635L 3.0 is a versatile all-rounder for hunting, pest control and night-time wildlife observation.

Features:

• 640 × 512 @ 12µm uncooled VOx detector with NETD ≤ 15mK
• Complete ApexVision S1 architecture – ApexCore S1 detector, Nexus 1.0 platform and Hyper-Light 3.0 algorithm
• 35mm F0.9 objective lens – detection range up to 1800m
• 2.8× to 22.4× magnification with a wider field of view for scanning
• Built-in laser rangefinder – measures out to 1200m
• Huge 1.03" AMOLED display with 2560 × 2560 resolution
• Shutterless 3.0 technology with a 50Hz frame rate for smooth, uninterrupted viewing
• 3-second fast start-up
• Symmetrical, ambidextrous body with a physical focus wheel for one-handed use
• 64GB built-in storage for photo and video recording with audio
• Wi-Fi (2.4GHz / 5GHz) and Bluetooth connectivity
• Replaceable dedicated battery – up to 5.5 hours per battery, two batteries supplied for up to 11 hours combined
• IP67 waterproof and dustproof rating
• Compact and lightweight at just 524g (battery included)

Specifications:

• SENSOR
• Core Technology: ApexVision S1 (ApexCore S1 detector, Nexus 1.0 platform, Hyper-Light 3.0 algorithm)
• Detector Type: Uncooled VOx IR Detector, 8–14µm
• Resolution: 640 × 512 @ 12µm
• NETD: ≤ 15mK
• Frame Rate: 50Hz
• LENS
• Objective Lens: 35mm, F0.9
• Field of View: 12.5° × 10.0° / 21.9m × 17.6m @100m
• Magnification: 2.8× to 22.4×
• Detection Range: Up to 1800m / 1950yd
• Focus: Manual (focus wheel)
• DISPLAY
• Display Type: 1.03" AMOLED, 2560 × 2560
• Colour Palettes: White Hot, Black Hot, Amber Sepia, Red Hot, Iron Red, Blue Hot, Green Hot
• Eye Relief: 30mm
• Diopter: -6D to +6D
• HARDWARE
• Laser Rangefinder: 1200m / 1300yd
• Wi-Fi: 2.4GHz, 5GHz
• Interface: USB-C (power supply / USB 2.0)
• Others: Microphone, Bluetooth
• SYSTEM
• Recording: Photo / video recording (with audio)
• Storage: 64GB
• Start-up Time: 3 seconds
• POWER
• Battery Type: 1 × replaceable dedicated battery (2 supplied)
• Operating Time: Up to 5.5 hours per battery (up to 11 hours with both supplied batteries)
• ENVIRONMENTAL
• Operating Temperature: -20°C to 50°C (-4°F to 122°F)
• Protection Level: IP67
• PHYSICAL
• Weight: 524g (battery included)
• Dimensions: 182 × 67 × 79mm

Includes:

• 1x Guide Kodiak TK635L 3.0 Thermal Monocular
• 1x Hand Strap
• 1x Neck Strap
• 1x Carry Bag
• 1x Lint-Free Cloth
• 2x Dedicated Battery
• 1x 5V 2A Adapter
• 1x USB-A to USB-C Cable
• 1x Quick Start Guide
• 1x Warranty Card
