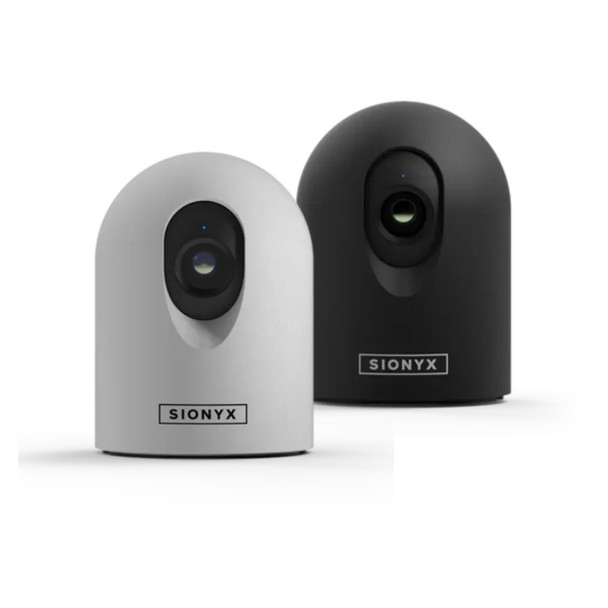

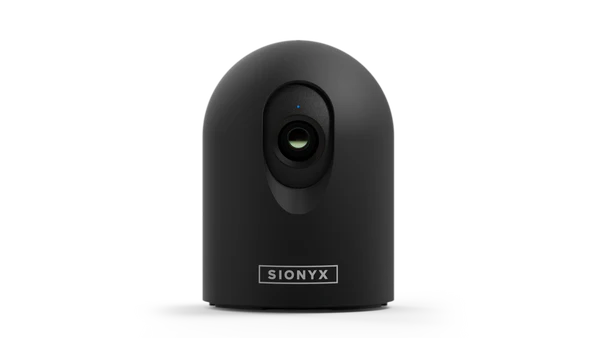

The SIONYX Nightwave Digital is a next-generation ultra-low-light marine navigation camera built around SIONYX's patented Black Silicon CMOS sensor and NightIQ™ image-optimisation technology, delivering full-colour night vision in moonless starlight (below 0.001 lux) without the size, cost, or complexity of a thermal imaging camera. Its Power-over-Ethernet design integrates directly with major chartplotter brands, letting you spot man-sized objects out to 300m and vessels out to 4km after dark, and it's built from marine-grade UV-resistant polycarbonate to handle the toughest conditions on the water. This Black model suits helms and mounting points where a black housing blends in best.

• Black Silicon CMOS sensor with NightIQ image-optimisation for full-colour night vision below 0.001 lux
• Man-sized object detection to 300m (984ft), marine vessel detection to 4.02km (2.5 miles)
• 1280 x 1024 HD resolution at up to 30fps, H264 video output
• 44° horizontal field of view, 16mm F/1.4 glass lens, fixed focus 10m to infinity
• Power over Ethernet (PoE) connectivity with seamless MFD integration (Garmin, Raymarine, Navico/Simrad, Windows PC, Mac)
• Auto day/night mode switching and Wi-Fi mobile app connectivity for setup and firmware updates
• IP67 water and dust resistant, MIL-STD-810G solar UV rated, rated to 100mph wind and 20G/10G shock & vibration
• Mounts ball-up or ball-down; UV-resistant polycarbonate housing; 2-year warranty

• Colour - Black
• Sensor - Black Silicon CMOS with NightIQ image-optimisation
• Minimum Illumination - <0.001 lux (moonless starlight)
• Man-Sized Object Detection - 300m (984ft)
• Marine Vessel Detection - 4.02km (2.5 miles)
• Resolution - 1280 x 1024 HD
• Frame Rate - Up to 30Hz
• Field of View - 44° horizontal
• Lens - 16mm F/1.4 glass, fixed focus 10m to infinity
• Visible Spectrum - 400-1200nm (includes infrared)
• Connectivity - Power over Ethernet (PoE) + Wi-Fi app
• Power - PoE, 9-36V DC, 5W nominal
• Video Output - H264, main profile
• Water/Dust Rating - IP67
• Operating Temperature - -20°C to +50°C
• Shock & Vibration - 20G vertical / 10G horizontal
• Wind Resistance - 100mph (161kph)
• Weight - 1kg (2.2lbs)
• Dimensions - 127 x 175mm (5 x 6.9in)
• Material - UV-resistant polycarbonate
• Warranty - 2 years
