Raven X Quad Row Bar Light - 560mm/22" - 240W

RRP: $199.00
Price: Price: $195.00
(You save $4.00 )

or make 4 interest-free payments of $48.75 AUD fortnightly with Afterpay More info

Looking for something unique? Check out our personalisation options

(No reviews yet) Write a Review
Gift wrapping:
Options available
Calculated at Checkout

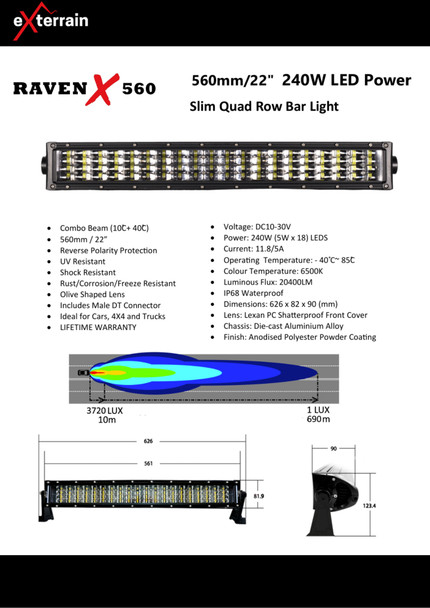

Our 560mm Quad Row Light Bar is part of our Raven X series that has a wattage of 240, great for your 4WD.


  • Combo Beam (10˚+40˚)
  • 560 mm (22”)
  • Olive Shaped Lens
  • Rust Corrosion/Freeze Resistant
  • Shock Resistant
  • UV Resistant
  • Reverse Polarity Protection

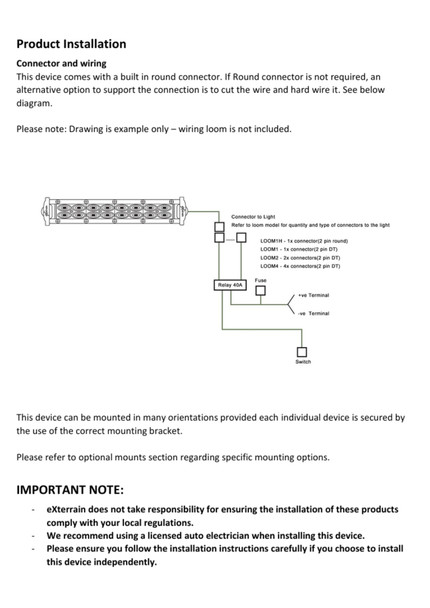

  • Includes Male DT Connector
  • Ideal for Cars, 4X4 and Trucks


  • Voltage: DC10-30V
  • Power: 240W (3W x 80)
  • Current: 11.8 /5A
  • Operating Temperature: -40˚~ 85˚
  • Colour Temperature: 6,500K
  • Luminous Flux: 20,400LM
  • Waterproof Rating: IP68
  • Dimensions: 626mm x 82mm x 90mm
  • Lens: Lexan PC Shatterproof Front Cover
  • Chassis: Die-cast Aluminium Alloy
  • Finish: Anodised Polyester Powder Coating
