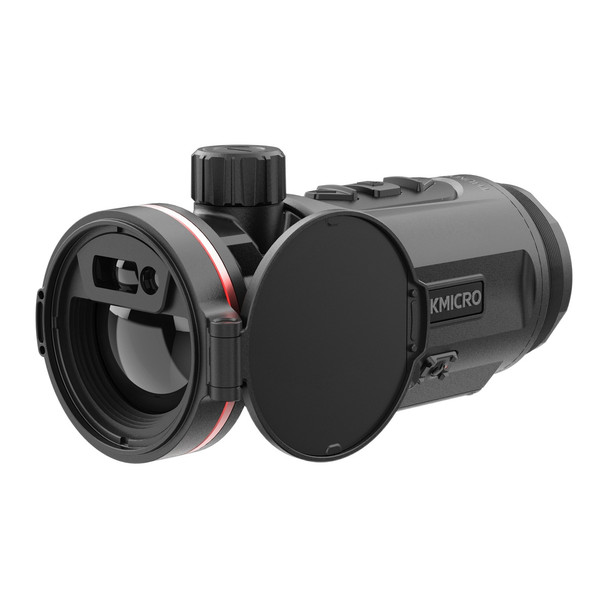

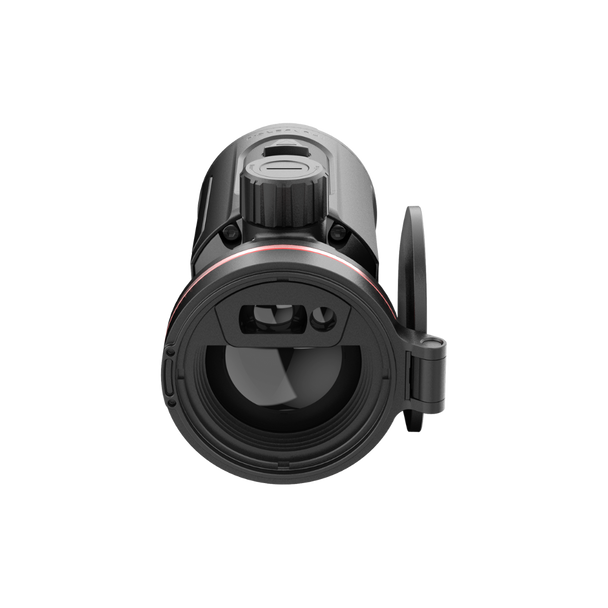

The HIKMICRO Thunder TQ35CL 3.0 delivers premium thermal clip-on performance while allowing you to keep using your existing day scope setup. Built with a 640 × 512 thermal detector, 35mm F1.0 lens and high-sensitivity NETD < 15 mK thermal module, it provides excellent image detail, a wide 12.5° field of view, and detection out to 1800m.

Designed for hunters wanting high-end thermal clarity without changing their familiar optic, the TQ35CL 3.0 combines Image Pro 3.0, HSIS shutterless imaging, a 1920 × 1080 OLED display, built-in 1000m laser rangefinder and strong recoil resistance in a compact front-mounted thermal attachment.

Features:
640 × 512 resolution @12μm thermal detector
High-sensitivity thermal module with NETD < 15 mK (@25°C, F# = 1.0)
35mm, F1.0 lens with thermal detection range up to 1800m
Built-in 1000m laser rangefinder
Image Pro 3.0 image processing algorithm
HIKMICRO Shutterless Image System (HSIS)
1920 × 1080 resolution 0.49-inch OLED display
Designed for use with 1× to 12× day scope magnification
Virtual reticle support
Rechargeable and replaceable Li-ion battery pack
Up to 5 hours of continuous operation
Magnesium alloy body and lens cover
High shock resistance up to 1000g/0.4ms
IP67 protection rating

Specifications:

THERMAL MODULE
Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 640 × 512
Frame Rate: 50Hz
Pixel Interval: 12μm
Response Waveband: 8μm to 14μm
NETD: Less than 15mK (@25°C, F# = 1.0)
Lens (Focal Length): 35mm, F1.0
Focus Mode: Focus Knob
Detection Range: 1800m
Magnification: 1×
Field of View (H × V), Degrees/m @100m: 12.5° × 10.0° / 21.9m × 17.5m
Recommended Magnification of the Day Scope: 1× - 12×

IMAGE DISPLAY
Display: 1920 × 1080, 0.49-inch OLED
Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil: 25mm
Eye Relief: 20mm
Brightness Adjustment: Yes
Tone Adjustment: Cold, Warm
Contrast Adjustment: Yes
HSIS (HIKMICRO Shutterless Image System): Yes
Image Pro 3.0: Yes

SYSTEM
Record Video: On-board Video Recording
Capture Snapshot: Yes
Audio Recording: Yes
Recoil-activation Recording: Yes
Virtual Reticle: Yes
Standby Mode: Yes
Built-In Memory: Built-In EMMC (64GB)
Hotspot: Yes
Hot Track: Yes
Local Album: Yes
Image Calibration: Yes
Freeze Zeroing: Yes
Zeroing Profiles: 5
Max. Recoil: 1000g/0.4ms

POWER SUPPLY
Battery Type: Replaceable and Rechargeable Li-ion Battery Pack
Operating Time: Up to 5 hours continuous operation
Type-C Power Supply: 5V DC, 2A - Supports External Power Supply

GENERAL
Protection Level: IP67
Body Material: Magnesium Alloy
Center Height: 32mm
Working Temperature: From -30°C to 55°C (-22°F to 131°F)

LASER RANGEFINDER
LRF Module in Lens: Yes
Safety Class for Laser: Class 1
Wavelength: 905nm
Max. Measuring Range: 1000m
Measurement Accuracy: ±1m
Min. Measuring Range: 10m

WARRANTY
10 years on the uncooled sensor
3 years on components
1 year on removable battery if applicable

Includes:
1x HIKMICRO Thunder TQ35CL 3.0 Thermal Clip-On
1x Quick Start Guide
1x Lint-free Cloth
1x Type-C Cable
1x Battery Pack
1x Battery Charger
