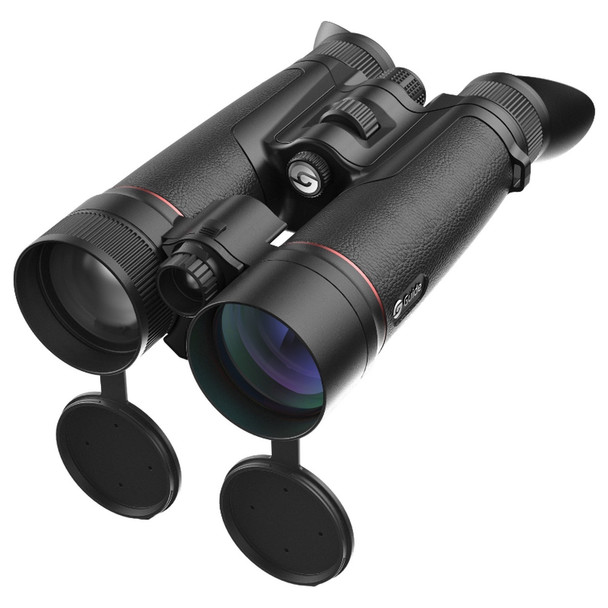

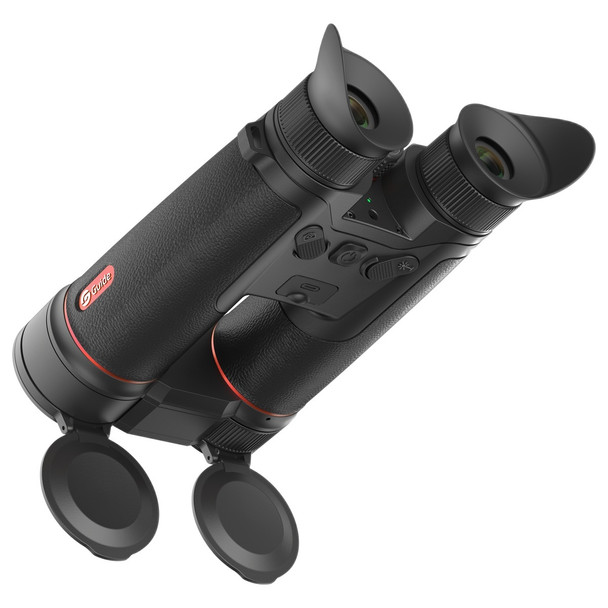

The Guide TN650MS Multispectral Thermal Binoculars combine high-sensitivity thermal imaging with ultra-HD night vision in one compact, rugged binocular. Powered by the Complete APEXVISION S1 System Architecture, it delivers ultra-clear visuals with smooth, ghost-free motion, high-fidelity imaging and exceptional long-range detail in any environment.

Featuring a 640×512@12µm thermal detector alongside a 3840×2160 low-light CMOS sensor and ≤15mK NETD sensitivity, the TN650MS allows seamless switching between thermal, digital night vision or fused imaging for outstanding situational awareness.

Complete with a built-in 1,500m laser rangefinder, GPS, digital compass and gyroscope, the TN650MS delivers accurate distance measurement and reliable target positioning in the field. A high-sensitivity detector paired with a 1920×1080 AMOLED display and the proprietary Hyper-Light algorithm produces clearer contrast and improved detail in challenging conditions.

Rugged Construction: IP67-rated protection against dust and water.

Control: Streamlined, one-handed operation with multi-function rotary knobs and customisable buttons.

Specifications

Sensor

Thermal Type: Uncooled infrared detector, 8–14µm
Thermal Resolution: 640 × 512 @ 12µm
Digital Sensor: 3840 × 2160 low-light CMOS
NETD: 15mK
Frame Rate: 50Hz

Lens

Thermal Lens: 50mm, F1.0
Digital Lens: 70mm, F1.8
Field of View at 100m: Thermal 8.2° × 4.9°; Digital 5.9° × 3.5°
Magnification: Thermal 3.9×–31.2×; Digital 2.6×–20.8×
Detection Range: Thermal up to 2,600m; Digital up to 950m

Laser Rangefinder

Range: Up to 1,500m
Additional Sensors: GPS, digital compass and gyroscope

Display

Display Type: 0.49-inch AMOLED
Display Resolution: 1920 × 1080
Colour Palettes: IR – White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot and Sepia; Visible – Day, Night and Low-Light

Eyepiece

Diopter Adjustment: -6D to +6D

Hardware Interface

Interface: USB Type-C
Wireless: 2.4GHz / 5GHz Wi-Fi hotspot

System Features

Recording: Video and snapshot capture, with audio
Standby Mode: Yes
Image Processing: APEXVISION with Hyper-Light algorithm

Power and Battery

Battery Type: Customised built-in battery plus 18650×1 external battery
Operating Time: Up to 5 hours
Charging: USB-C

Environmental and Durability

Operating Temperature: -20°C to 50°C
Protection Rating: IP67

Physical Dimensions

Weight: 1110g
Dimensions: 235 × 134 × 63mm
