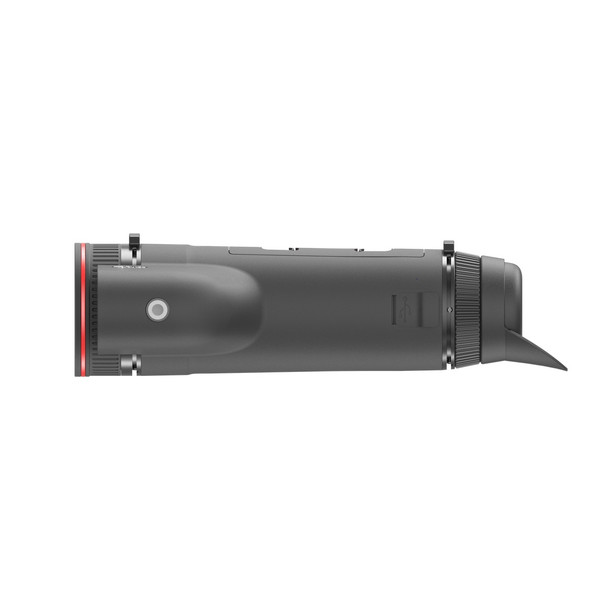

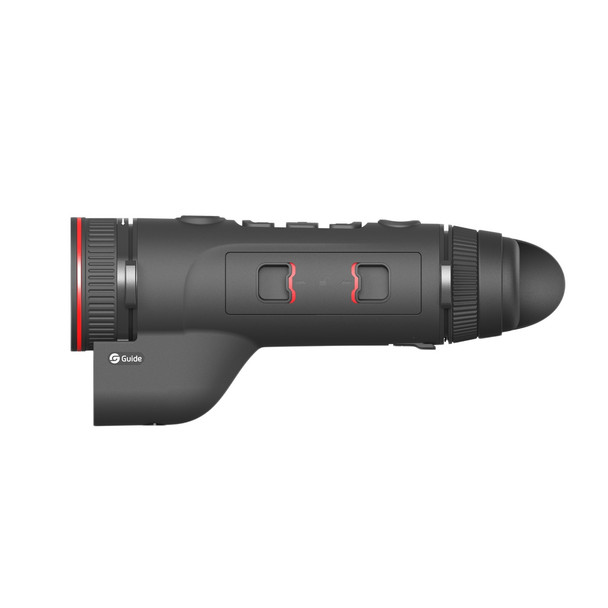

The Guide TJ650 LRF Thermal Monocular delivers powerful long-range thermal detection in a rugged handheld package, with a high-resolution thermal sensor, built-in laser rangefinder and Full-HD AMOLED display.

Designed for hunters, outdoor users and professionals, the TJ650 LRF combines a 640×512 thermal detector with a 50mm objective lens to deliver excellent image clarity and a detection range of up to 2600 metres. The built-in 1000m laser rangefinder helps quickly measure target distance in the field.

With video recording, dual-band Wi-Fi, Bluetooth connectivity, replaceable 18650 batteries and IP67-rated protection, the TJ650 LRF is built for serious night-time observation in tough outdoor conditions.

Features:

• Long-Range Detection: Powerful 50mm objective lens delivers a detection range of up to 2600 metres.
• Built-In Laser Rangefinder: Integrated laser rangefinder measures distances up to 1000 metres.
• High-Sensitivity Thermal Sensor: 640×512 thermal detector with 12μm pixel pitch for detailed thermal imaging.
• Excellent Image Clarity: 15mK NETD helps distinguish fine temperature differences for clearer images.
• Full-HD AMOLED Display: 0.39" AMOLED display with 1920×1080 resolution for crisp viewing.
• Seven Colour Palettes: Choose from White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot and Sepia.
• Smart Connectivity: Dual-band Wi-Fi, Bluetooth and USB-C connection for convenient use in the field.
• Photo & Video Recording: Capture photos and video, including audio recording.
• Rugged Outdoor Design: IP67-rated protection for dependable performance outdoors.
• Replaceable Battery System: Runs on 2 replaceable 18650 batteries with up to 10 hours operating time.

Specifications:

• SENSOR
• Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 640×512, 12μm
• NETD: 15mK
• Frame Rate: 50Hz
• LENS
• Objective Lens: 50mm, F0.9
• Field of View: 8.8° × 6.6°
• FOV m@100m: 15 × 12
• Magnification: 2.9x~23.2x
• Detection Range: 2600m / 2800yd
• Focus: Manual
• DISPLAY
• Display Type: 0.39" AMOLED, 1920×1080
• Colour Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye Relief 20mm; Diopter -6 to +6; Zoom 13.8x
• HARDWARE
• Laser Rangefinder: 1000m / 1090yd
• WIFI: 2.4G, 5G
• Interface: USB-C (Power Supply/USB2.0)
• Others: Microphone, Compass, Gyroscope, Bluetooth
• SYSTEM
• Recording Function: Photo / Video (Audio recording included)
• Memory Capacity: 64GB
• POWER
• Battery Type: 2 Replaceable 18650 Batteries
• Operating Time: 10 hours
• ENVIRONMENTAL
• Operating Temperature: -20°C to 50°C / -4°F to +122°F
• Encapsulation: IP67
• PHYSICAL
• Weight: 629g
• Size: 238mm × 97mm × 64mm

Includes:

• Thermal Device
• Lint-Free Cloth
• Carry Bag
• Accessory Bag
• Hand Strap
• 2× 18650 Battery
• Battery Charger
• 5V 2A Adapter (US, UK, Australia and Europe)
• USB-A to USB-C Cable
• Quick Start Guide
• Warranty Card
