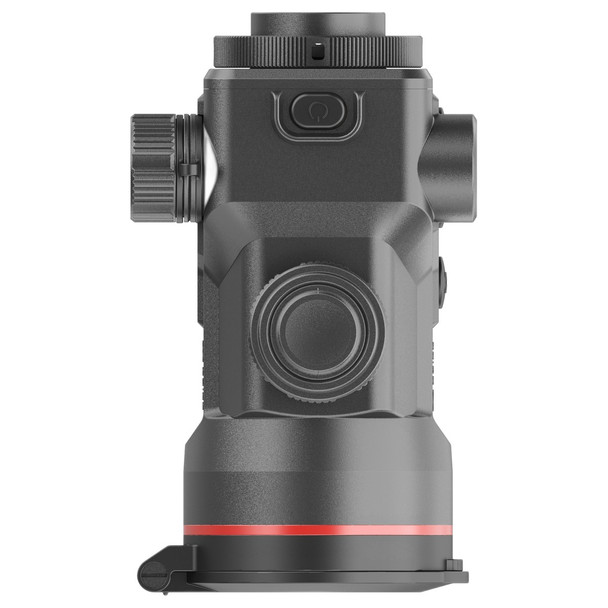

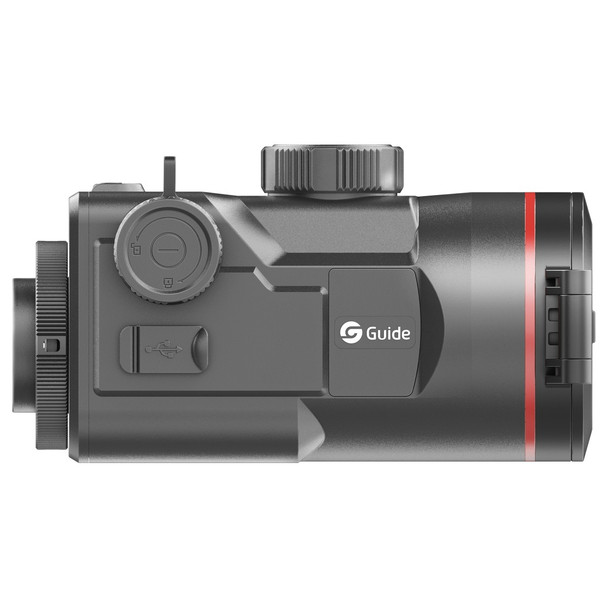

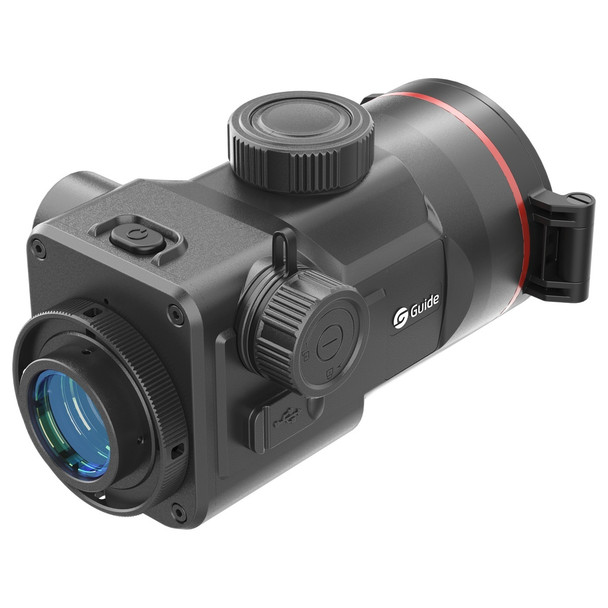

The Guide TB650LS Thermal Clip-On is a precision thermal add-on tailored for hunting, powered by the next-generation APEXVISION infrared imaging system. Featuring a 640×512@12μm resolution sensor with <15mK NETD sensitivity, it fits in front of your existing daylight scope's objective lens.

It brings precision in silence while integrating multiple intelligent features into a compact, lightweight housing – a 1200m in-lens laser rangefinder, a 0.39" 1920×1080 AMOLED display and a detection range of up to 2600m.

It delivers unmatched downrange accuracy and exceptional handling convenience in the field, weighing just 485g for balanced, comfortable mounting.

Rugged Construction: IP68-rated protection against dust and water.

Precision Clip-On Mounting: Fits seamlessly in front of your existing daylight scope's objective lens, transforming it into a thermal capable system without disturbing zero.

Specifications

Sensor

Resolution: 640x512
Pixel Pitch: 12μm
NETD: <15mK

Lens

Focal Length: 50mm

Laser Rangefinder

Range: Up to 1200m

Display

Type: AMOLED
Resolution: 1920x1080
Size: 0.39"

Hardware Interface

Video Output: USB-C
Storage: Built-in photo and video capture

System Features

Detection Range: Up to 2600m
Magnification: 1x
Field of View: 8.8°x6.6°
Multiple Colour Palettes: Yes
Wi-Fi Connectivity: Yes, via Guide App

Power and Battery

Battery Type: Single 18650 rechargeable battery (replaceable)
Battery Life: Approx. 5 hours
Charging: USB-C

Environmental and Durability

Ingress Protection: IP68
Operating Temperature: -20°C to +50°C

Physical Dimensions

Weight: 485g
Dimensions: 139 x 86 x 79mm
