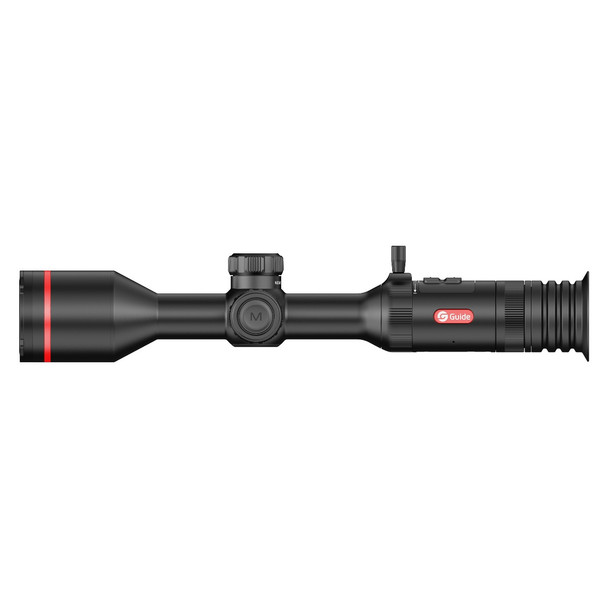

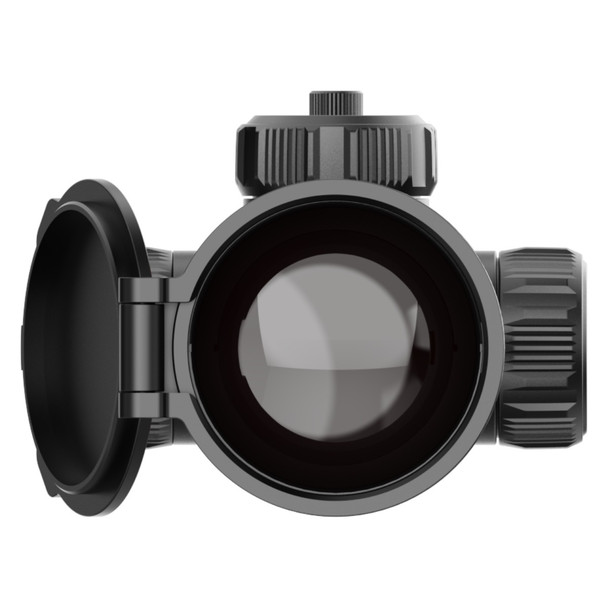

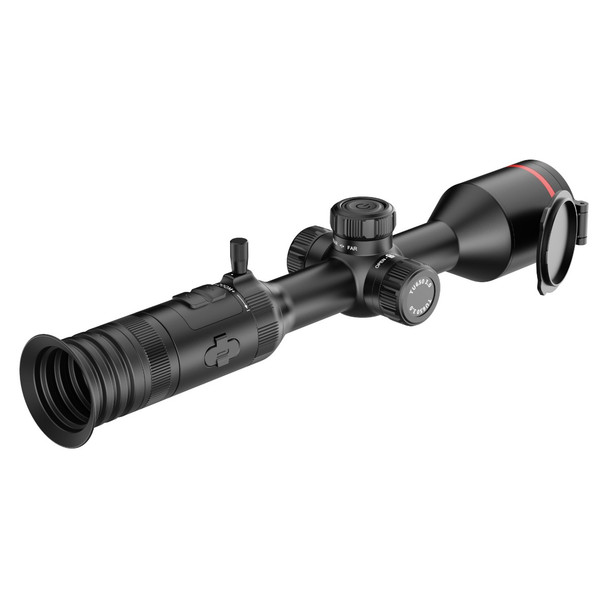

The Guide TU635 3.0 Thermal Scope is durable, powerful, and ready for any challenge. Plus this includes a quick release scope mount!

The TU635 3.0 is part of Guide's TU 3.0 Series, built for serious hunters and professionals who need reliable thermal performance in the field. It steps up to a 640 × 512 @12μm thermal sensor for sharper, more detailed images than the 400 × 300 models, and with a 35mm lens and a detection range of up to 1800 metres it's ideal for medium to long-range spotting.

Designed for tough environments, the TU635 3.0 features a shutterless design, IP68 waterproof rating, dual-band Wi-Fi and easy-to-use controls.

Features:

• High Resolution: 640 × 512 @12μm thermal detector with NETD ≤20mK.
• Exceptional Imaging: Full HD 0.49” 1920 × 1080 AMOLED display.
• Shutterless Design: 3.0 shutterless design ensures smooth, uninterrupted visuals.
• Seamless Control: Centrally positioned focus wheel & zoom lever, ergonomically designed for effortless operation.
• Rugged Design: IP68 rated.
• WiFi: Supports 2.4G/5G dual-band for efficient data transmission.
• Long Runtime: Up to 12 hours operating time.

Specifications:

• SENSOR
• Type: Uncooled Infrared Detector, 8 to 14 μm
• Resolution: 640×512, 12 μm
• NETD: ≤20mK
• Frame Rate: 50Hz
• LENS
• Focal length: 35mm
• FOV: 11.8°×7.1° (21m x 12m @100m)
• Magnification: 3x~24x
• Detection Range: 1800m
• DISPLAY
• Display Type: 0.49” AMOLED, 1920x1080
• Colour Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Diopter: -5 to +5
• HARDWARE & SYSTEM
• WIFI: 2.4G, 5G
• Interface: USB-C (Charge/USB2.0)
• Tube Diameter: Standard 30mm
• Recording Function: Photo/Video (audio recording included)
• POWER
• Battery: Built-in battery plus external 18650 battery
• Operating Time: 12 hours
• ENVIRONMENTAL & PHYSICAL
• Operating Temperature: -20°C to 50°C
• Encapsulation: IP68
• Weight: 815g
• Size: 374mm x 89mm x 82mm

Includes:

• Thermal Device
• Lens Cover
• Eye Mask
• Quick-Release Scope Mount
• Carry Bag
• 18650 Batteries
• Battery Charger
• 5V 2A Adapter
• USB-A to USB-C Cable
• Quick Start Guide
