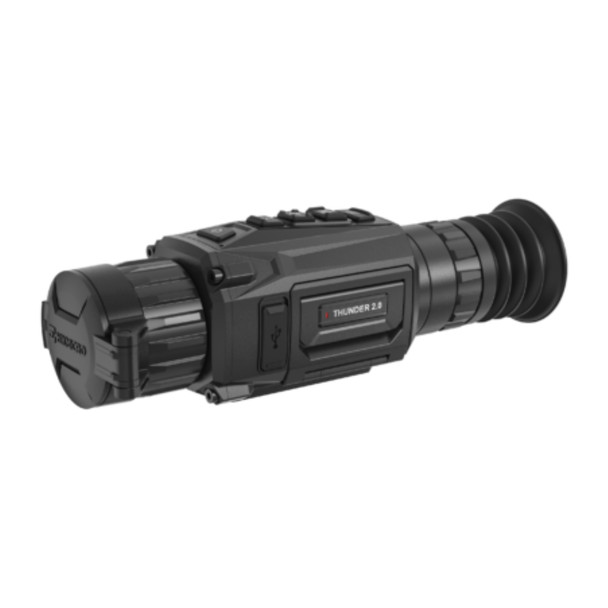

The HIKMICRO Thunder TE19 2.0 Thermal Image Scope has a 256 × 192 thermal detector and a 1024 × 768 OLED display, which provides clear images under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. With an extended operation time, the scope is mainly applied to scenarios such as hiking, hunting, searching and rescuing.

Features:

• 256 × 192 resolution with 12 μm sensor
• 1024 × 768 resolution 0.39-inch OLED display
• Supports image brightness and tone adjustment
• Up to 10 hours of continuous operation
• Replaceable and rechargeable Li-ion battery
• Supports audio and recoil-activated recording
• High shock resistance up to 1000 g/0.4 ms

Specifications:

• THERMAL MODULE
• Image Sensor: Uncooled Focal Plane Arrays
• Max. Resolution: 256 x 192
• Frame Rate: 50Hz
• Pixel Interval: 12μm
• NETD: Less than 35mK (@25°C), F# = 1.0
• Focal Length: 19mm
• Focus Knob: No
• Detection Range: 1,000m
• Min. Focusing Distance: 0.5m
• Aperture: F1.0
• Magnification: 2.47x
• Field of View: 9.24°/16.17m (H) x 6.94°/12.13m (V) @100m
• IMAGE DISPLAY
• Monitor: 1024 x 768, 0.39", OLED
• Palettes: Black Hot, White Hot, Red Hot, Fusion
• FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
• Exit Pupil: 6mm
• Eye Relief: 45mm
• Diopter (Range): -5D to 5D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm
• SYSTEM
• Record Video: On-board video recording
• Capture Snapshot: Yes
• Digital Zoom: 1x, 2x, 4x, 8x
• Standby Mode: Yes
• Storage: Built-in EMMC (16GB)
• PIP: Yes
• DPC: Yes
• Hotspot: Yes
• Hot Track: Yes
• Distance Measurement: Yes
• Recoil-Activation Recording: Yes
• Audio Recording: Yes
• Max. Recoil: 1,000g/0.4ms
• POWER SUPPLY
• Battery Type: Replaceable and Rechargeable Li-ion Battery
• Battery Operating Time: ≥ 10 Hours (@25°C, with hotspot off)
• Type-C Power Supply: 5VDC, 2A
• Supports External Power Supply
• GENERAL
• Work Temperature/Humidity: From -30°C to 55°C (-22°F to 131°F), Humidity: 90% or Less
• Protection Level: IP67
• Dimensions: 218.7mm x 67.14mm x 68.04mm
• Weight: 476g
