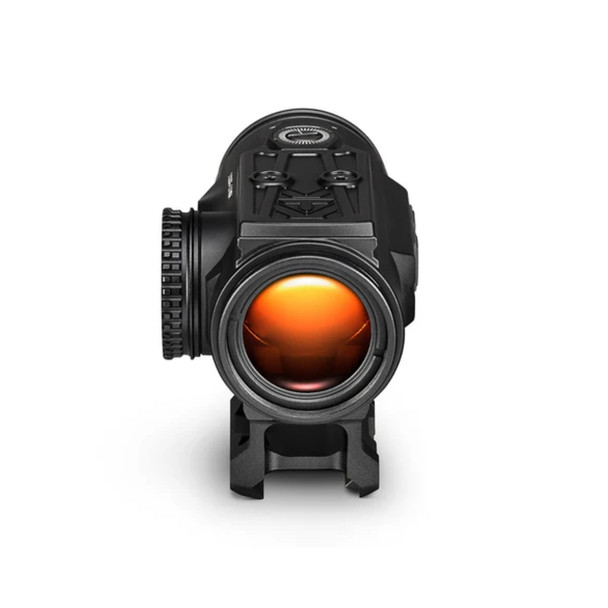

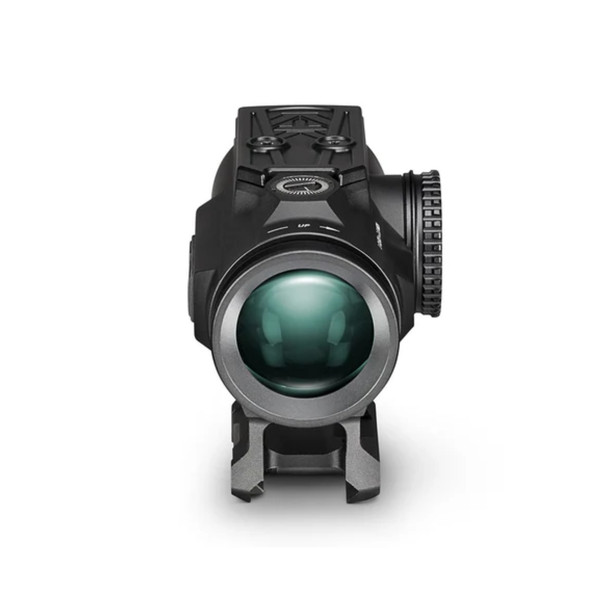

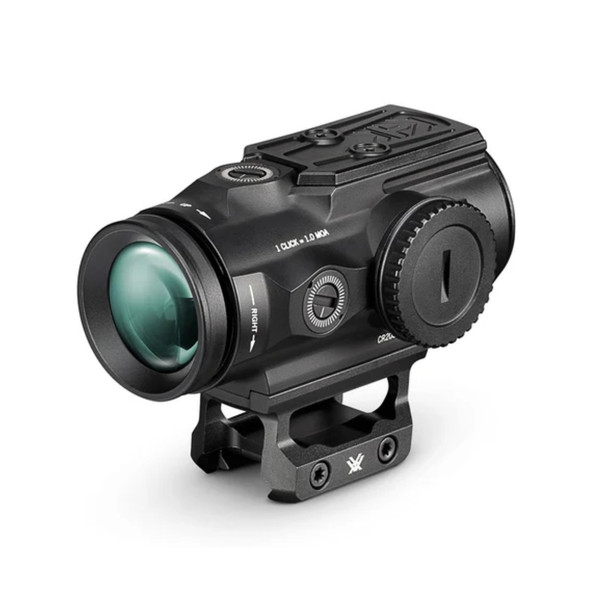

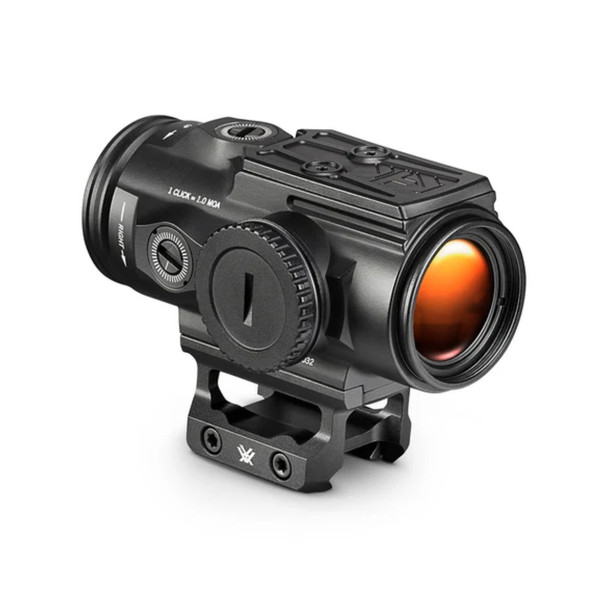

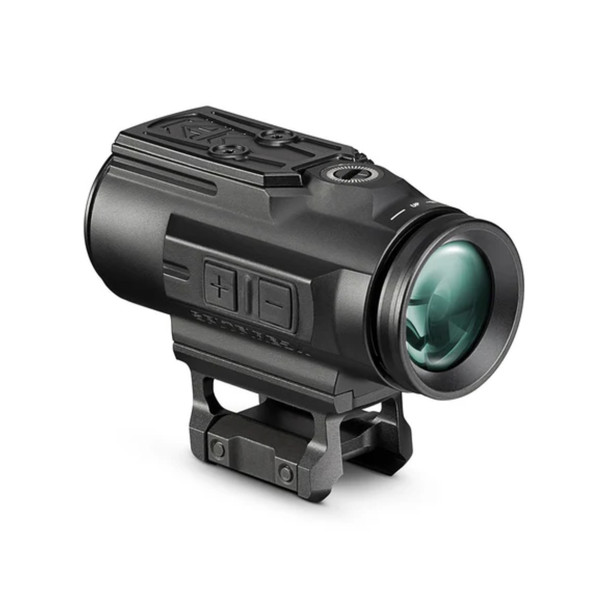

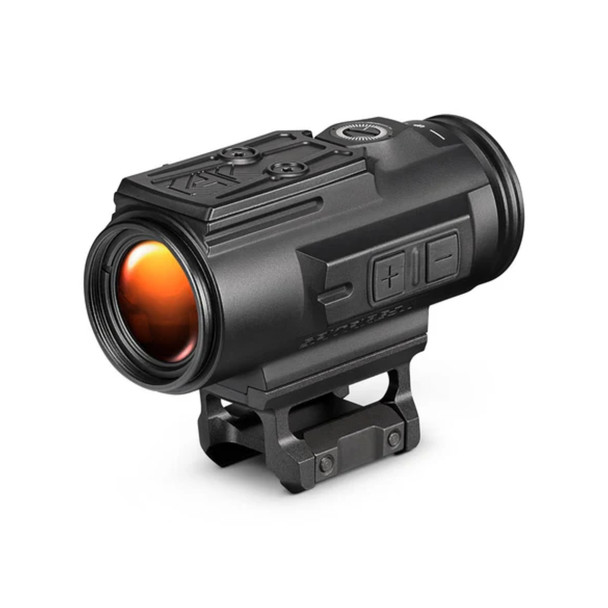

With a redesigned HD optical system that cuts inches and ounces off the original platform, the new Spitfire HD Gen II 3x and 5x models are a shooter's dream come true. Choose your ideal magnification and mounting height, then rely on the BDC-style reticle to subtend with most popular 5.56 cartridges for quick holdovers at known distances, keeping you locked on target.

AR-BDC4 Reticle

• This BDC reticle is built to get the most out of the 5.56 cartridge in your AR, providing both rapid target acquisition and the tools for holdovers out to 650 yards.

Optical Features:

• HD Optical System - Optimized to deliver exceptional resolution, cut chromatic aberration, and provide outstanding edge to edge sharpness and light transmission.
• Brightness Settings - 12 Levels.
• Night Vision Compatibility - The lowest 2 settings are night-vision compatible.

Construction Features:

• Waterproof - O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
• Fogproof - Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
• Shockproof - Rugged construction withstands recoil and impact.
• Nitrogen Gas Purged - Gas purged and o-ring sealed delivering waterproof, fogproof performance.
• Low-Glare Matte Black Anodized - Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
• Compact, Lightweight Design - Rugged construction that's still compact, with a lightweight form-factor.

Specifications:

• Mount Type: Multi-Height
• Magnification: 5x
• Objective Lens Diameter: 25mm
• Eye Relief: 2.7"
• Field of View: 23.3 feet/100 yards
• Adjustment Graduation: 1 MOA
• Max Elevation Adjustment: 200 MOA
• Max Windage Adjustment: 200 MOA
• Parallax Setting: 100 yards
• Length: 91mm (3.6")
• Weight: 292g (10.3oz)

Breakdown of BDC, V-Plex and Rimfire Reticles:

• BDC Reticle
  • This means Bullet Drop Control and it minimises the need for guessing bullet hold-over at long distances. By selecting the appropriate hashmark you will get a reliable bullet-drop reference. This reticle also provides you with reference marks, which can compensate for bullet drift in windy conditions or to range distances.
• Vortex Dead-Hold BDC Reticle (MOA)
  • Customized hash mark design helps eliminate guesswork on hold over and windage corrections. Good for hunting/shooting at varying ranges where estimating hold over is a concern.
• V-Plex Reticle
  • This is another term for Duplex Reticle: Standard crosshairs that are thicker at edges (for faster target acquisition) and thinner in the centre (as not to obscure the view of the target).
• Rimfire Reticle
  • These reticles are more suitable for short-range shooting. They are specially designed for use with rifles that have low recoil as they aren't strong enough to withstand the force of high recoil. This has typically shorter eye relief as the milder recoil that you get from a rimfire rifle reduces the need to have long eye relief. They have a parallax setting of about 50 yards, meaning you should have a scope with a parallax setting for 25 or 50 yards instead of the typical 100 yards you often see on hunting scopes.
