Vortex Crossfire II 1-4x24 V-Brite Rifle Scope

Clearer. Tougher. Brighter. Our popular Crossfire riflescopes are completely redesigned and built to exceed the performance standards of similarly priced riflescopes. Longer eye relief, a fast focus eyepiece, fully multi-coated lenses and improved, resettable MOA turrets ensure optimal performance in the field. The hard anodized one piece aircraft grade aluminium tube is nitrogen purged and O-ring sealed for a lifetime of waterproof/fogproof performance. The Crossfires deliver — and then some.

Optical Features:

• Fully Multi-Coated Lenses - Increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
• Second Focal Plane Reticle - Scale of reticle maintains the same ideally sized appearance. Listed reticle subtensions used for estimating range, hold over and wind drift correction are accurate at the highest magnification.

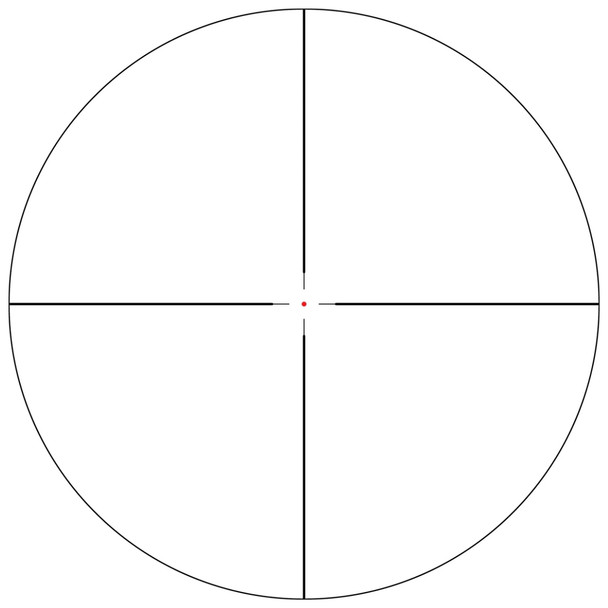

• Illuminated Center Dot - Provides a precise aiming point under low light conditions.

Construction Features:

• Tube Size - 30 mm diameter.
• One Piece Tube - Maximizes alignment for improved accuracy and optimum visual performance as well as strength and water resistance.
• Aircraft Grade Aluminium - Premium grade of aluminium, valued for fatigue resistance.
• Waterproof - O-ring seals prevent moisture, dust, and debris from getting inside the tube, ensuring reliable performance in all environments.
• Fogproof - Filled with nitrogen gas to inhibit internal fogging.
• Shockproof - Lenses are locked in place, fore and aft, with machined locking rings to remain in perfect alignment and withstand recoil and impact.
• Hard Anodized Finish - Hard coat anodization is durable; the low glare matte helps camouflage the shooter’s position.
• Capped Reset Turrets - Allow re-indexing of the turret to zero after sighting in the riflescope. Caps provide external protection for turret.

Convenience Features:

• Fast Focus Eyepiece - Allows quick and easy reticle focusing.

Specifications:

• Magnification: 1-4x
• Objective Lens Diameter: 24mm
• Eye Relief: 4"
• Field of View: 96.1-24.1 feet/100 yards
• Tube Size: 30mm
• Turret Style: Capped
• Adjustment Graduation: 1/2 MOA
• Travel per Rotation: 30 MOA
• Max Elevation Adjustment: 100 MOA
• Max Windage Adjustment: 100 MOA
• Parallax Setting: 100 yards
• Length: 249mm (9.8")
• Weight: 453g (16oz)

Breakdown of V-Plex, BDC and Rimfire Reticles:

• V-Plex Reticle
  • This is another term for Duplex Reticle: Standard crosshairs that are thicker at edges (for faster target acquisition) and thinner in the centre (as not to obscure the view of the target).
• BDC Reticle
  • This means Bullet Drop Control and it minimises the need for guessing bullet hold-over at long distances. By selecting the appropriate hashmark you will get a reliable bullet-drop reference. This reticle also provides you with reference marks, which can compensate for bullet drift in windy conditions or to range distances.
• Rimfire Reticle
  • These reticles are more suitable for short-range shooting. They are specially designed for use with rifles that have low recoil as they aren't strong enough to withstand the force of high recoil. This has typically shorter eye relief as the milder recoil that you get from a rimfire rifle reduces the need to have long eye relief. They have a parallax setting of about 50 yards, meaning you should have a scope with a parallax setting for 25 or 50 yards instead of the typical 100 yards you often see on hunting scopes.
