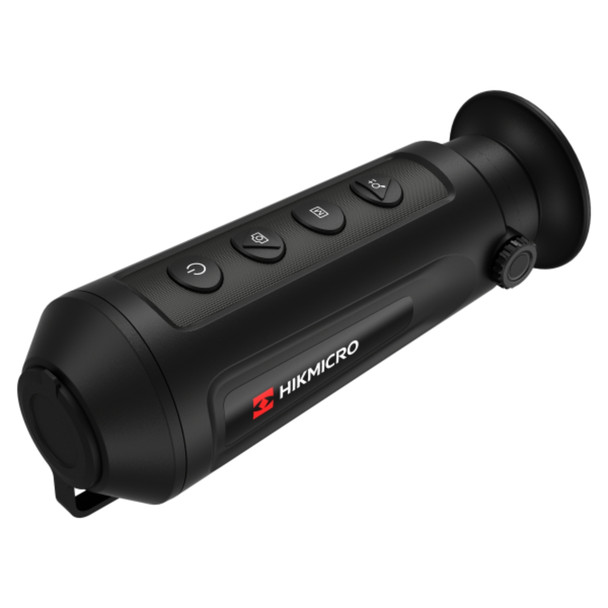

HIKMICRO Lynx S LC06S Thermal Monocular

The HIMICRO Lynx LC06S thermal monocular is equipped with a 160×120 infrared detector and an 800 × 600 resolution 0.32-inch OLED display. The Lynx series boasts features such as on-board recording, WiFi streaming, a HD OLED display screen. The HIKMICRO Lynx LC06S is ideal for an entry level thermal monocular due to its affordable price an high quality. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The HIMICRO Lynx LC06S is the perfect tool for law enforcement, border patrol, security and hunting.

Features:

• High sensitivity thermal module with 160 x 120 resolution
• NETD < 35 mk (@25° C, F#=1.0)
• Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
• 800 × 600 resolution 0.32-inch OLED display
• Built-in rechargeable lithium battery
• Up to 10 hours continuous operation
• Wi-Fi hot spot
• Type-C Interface
• DRI Ranges
• Rabbit = 65m Detection = 8m Identification
• Person = 230m Detection = 28m Identification
• Vehicle = 559m Detection = 69m Identification

Specifications:

• THERMAL MODULE
• Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
• Max. Resolution: 160 x 120
• Pixel Interval: 17μm
• Response Waveband: 8μm-14μm
• NETD: Less than 35mK (@25°C), F# = 1.0
• Focal Length: 35mm
• Field of View: 24.7° (H) x 18.7° (V) @100m
• Digital Zoom: 1x, 2x, 4x
• Aperture: F1.0
• Magnification: 0.6 to 2.4
• IMAGE DISPLAY
• Monitor: 720 x 540, 0.2", LCOS
• Palettes: Black Hot, White Hot, Red Hot, Fusion
• FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
• Frame Frequency: 50Hz
• SYSTEM
• Highest Temperature Spot Tracking: Yes
• WiFi Hotspot: Yes
• Standby Mode: Yes
• Storage: Built-in Memory Module (8GB)
• Record Video: Yes
• Capture Snapshot: Yes
• POWER SUPPLY
• Battery Type: Lithium Battery
• Battery Operating Time (with CVBS and WiFi hotspot): 7.5 Hours Continuous Running (@25ºC)
• Battery Operating Time (without CVBS and WiFi hotspot): 10 Hours Continuous Running (@25ºC)
• Battery Capacity Display: Yes
• Power Supply: 5VDC/2A, 1.5W, Type-C Interface
• GENERAL
• Working Temperature: -20ºC to 55ºC (-4ºF to 131ºF)
• Protection Level: IP67
• Dimensions: 158.3mm x 61mm x 57mm
• Weight: 250g
• WARRANTY
• 10 years on the uncooled sensor
• 3 years on components
• 2 years on rechargeable battery if applicable

Includes:

• 1x Thermal Monocular
• 1x Quick Start Guide
• 1x Non-dust Cloth
• 1x USB Cable
• 1x Protective Bag
• 1x Wrist Strap
