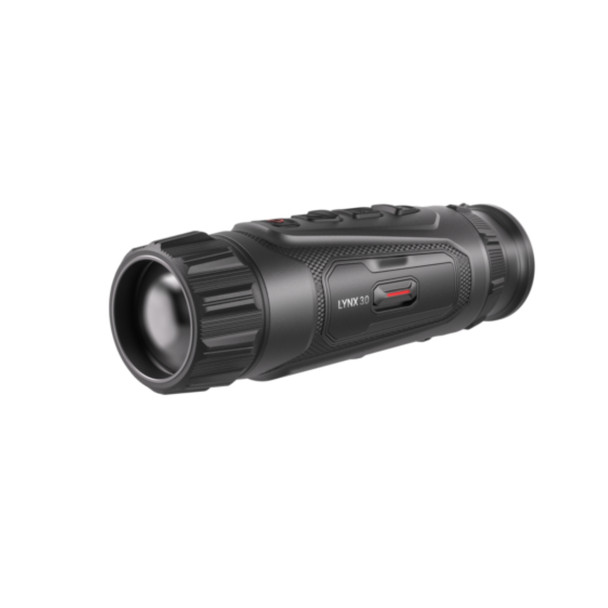

With a 1.9× base magnification, a powerful 640×512 thermal detector, and a precision 35mm F1.0 lens, the HIKMICRO Lynx LQ35 3.0 delivers elite-level performance for professional hunters and mid-to-long-range applications. Its 7.5° field of view (13.1m at 100m) provides excellent situational awareness across open terrain, while a detection range of up to 1800m ensures consistent target acquisition at distance. Backed by HIKMICRO’s proven shutterless technology, this unit is built for users who demand clarity, reliability, and performance in the field.

Features:

• High-resolution 640 × 512 thermal sensor for superior image clarity
• High-sensitivity thermal module with NETD < 15mK (@25°C, F# = 1.0)
• 35mm F1.0 lens with detection range up to 1800m
• HIKMICRO Shutterless Imaging System (HSIS) for smooth, uninterrupted viewing
• AI-powered Image Pro 3.0 and Zoom Pro image enhancement
• 0.49-inch OLED display with 1920 × 1080 resolution
• Replaceable and rechargeable 18650 battery
• Up to 4.5 hours runtime at -20°C
• Lightweight 354.5g pocket-sized design

Specifications:

THERMAL MODULE

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Max. Resolution: 640 × 512
• Frame Rate: 50Hz
• Pixel Interval: 12μm
• Response Waveband: 8μm to 14μm
• NETD: < 15 mK (@25°C, F# = 1.0)
• Lens (Focal Length): 35mm, F1.0
• Focus Mode: Focus Ring
• Detection Range: 1800m
• Min. Focusing Distance: 3.5m
• Magnification: 1.9× – 15.2× (8× digital zoom)
• Field of View (H × V): 7.5° × 4.6° / 13.1m × 8.0m @100m

IMAGE DISPLAY

• Display: 1920 × 1080, 0.49-inch OLED
• Colour Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Exit Pupil: 6mm
• Eye Relief: 20mm
• Diopter (Range): -5D to +3D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm
• Contrast Adjustment: Yes
• Zoom Pro: Yes
• HSIS: Yes
• Image Pro 3.0: Yes
• Sync Pro: Yes

SYSTEM

• Record Video: Yes
• Capture Snapshot: Yes
• Audio Recording: Yes
• Standby Mode: Yes
• Built-in Memory: 64GB EMMC
• PIP (Picture-in-Picture): Yes
• Hotspot: 2.4 GHz / 5 GHz Wi-Fi
• Hot Track: Yes
• Distance Measurement: Yes
• Local Album: Yes

POWER SUPPLY

• Battery Type: Replaceable & Rechargeable Li-ion 18650
• Operating Time:
  • 5 hours (hotspot on @25°C)
  • 4.5 hours (hotspot on @-20°C)
• Type-C Power Supply: 5V DC, 2A
• External Power Support: Yes
• Direct Charging: Yes

GENERAL

• Protection Level: IP67
• Dimensions: 169.6mm × 53.6mm × 49.5mm
• Weight: 354.5g (with battery)
• Working Temperature: -30°C to 45°C
• Humidity: ≤ 90%

Warranty:

• 10 years on the uncooled sensor
• 3 years on components
• 2 years on rechargeable battery (if applicable)

Includes:

• 1× Thermal Monocular
• 1× Quick Start Guide
• 1× Non-dust Cloth
• 1× Type-C Cable
• 2× 18650 Batteries
• 1× Battery Charger
