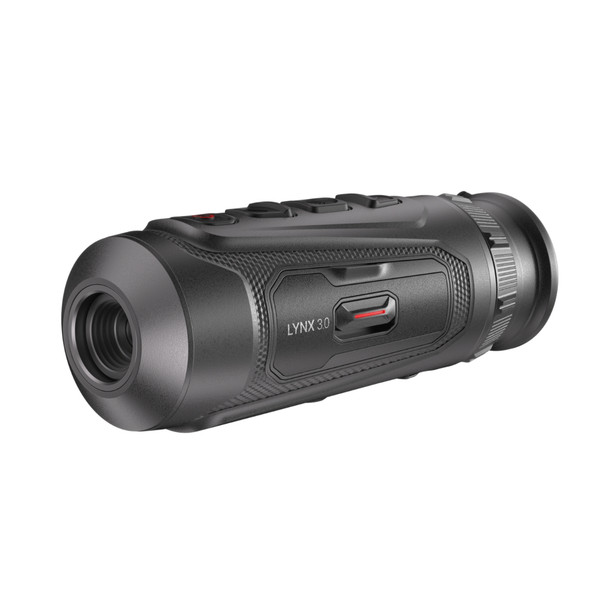

The Hikmicro Lynx LE10 3.0 delivers exceptional value for close-range thermal observation. Built with a 256 × 192 thermal detector and 9.7mm F1.0 lens, it provides a wide 18° field of view, 1.4× base magnification, and detection out to 500m.

Compact, lightweight, and easy to operate, the LE10 3.0 is ideal for quick scanning in tighter environments, offering reliable thermal performance in a highly portable design.

Features:

• High-sensitivity thermal module with NETD < 20 mK (@25° C, F# = 1.0)
• 9.7 mm, F1.0 lens with thermal detection range up to 500 m
• AI-powered Image Pro 3.0 algorithm
• HIKMICRO Shutterless Imaging System (HSIS)
• 0.39-inch OLED display with 1024 × 768 resolution
• Replaceable and rechargeable 18650 battery provides up to 5.5 hours of continuous operation at -20°C
• Lightweight design at 291.5 g, with a pocket-sized build

Specifications:

• THERMAL MODULE
• Image Sensor: VOx Uncooled Focal Plane Arrays
• Max. Resolution: 256×192
• Frame Rate: 50Hz
• Pixel Interval: 12μm
• Response Waveband: 8μm to 14μm
• NETD: Less than 20mK (25°C,F#=1.0)
• Lens (Focal Length): 9.7mm, F1.0
• Detection Range: 500m
• Min. Focusing Distance: 3.4m
• Magnification: 1.4x 11.2x (8x)
• Field of View (H x V), Degrees/m @100m: 18.0° × 13.6°/31.7m × 23.8m
• IMAGE DISPLAY
• Display: 1024 × 768, 0.39-inch, AMOLED
• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Exit Pupil: 6mm
• Eye Relief: 20mm
• Diopter (Range): -5D to +3D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm
• Contrast Adjustment: Yes
• Zoom Pro: N/A
• HSIS (HIKMICRO Shutterless Image System): Yes
• Image Pro 3.0: Yes
• SYSTEM
• Record Video: Yes
• Capture Snapshot: Yes
• Audio Recording: Yes
• Standby Mode: Yes
• Built-In Memory: Built-In EMMC (64GB)
• PIP: Yes
• Hotspot: 2.4GHz/5GHz Wi-Fi Waveband
• Hot Track: Yes
• Distance Measurement: Yes
• Local Album: Yes
• POWER SUPPLY
• Battery Type: Replaceable and Rechargeable Li-ion 18650 Battery
• Operating Time: 6 hours with Wi-Fi hot spot function off (@ 25 °C)
                          5.5 hours with Wi-Fi hot spot function on (@ -20 °C)
• Type-C Power Supply: 5V DC, 2A - Supports External Power Supply, Support Direct Charging
• GENERAL
• Protection Level: IP67
• Dimensions: 152.4mm x 53.6mm x 49.5mm
• Weight: 291.5g (with battery)
• Working Temperature: From -30°C to 45°C (-22°F to 113°F); Humidity: 90% or Less
• WARRANTY
• 10 years on the uncooled sensor
• 3 years on components
• 2 years on rechargeable battery if applicable

Includes:

• 1x Thermal Monocular
• 1x Quick Start Guide
• 1x Non-dust Cloth
• 1x Type-C Cable
• 2x Battery
• 1x Battery Charger
