HIKMICRO

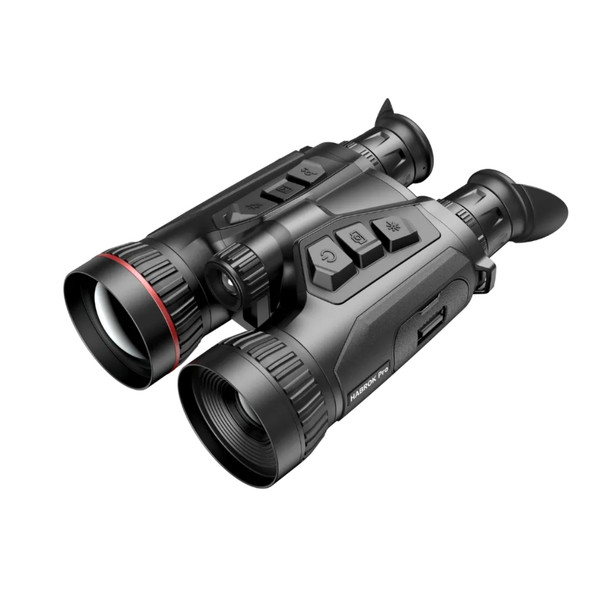

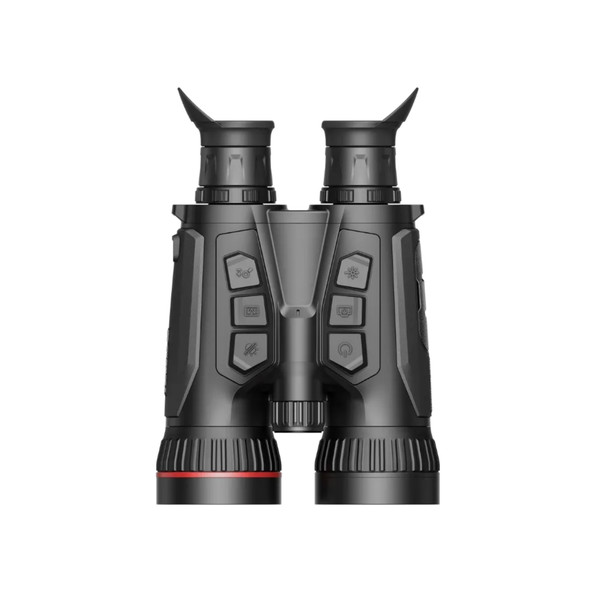

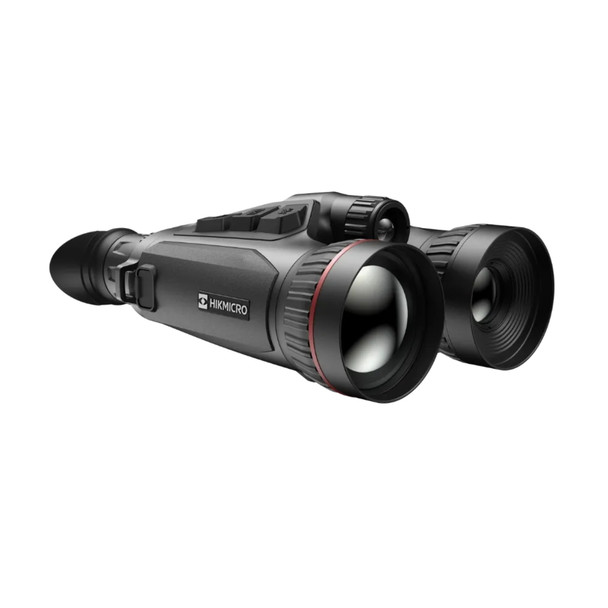

HIKMICRO Habrok Pro HX60LS Multi-Spectrum Binocular

No reviews yet Write a Review
Ask Questions

HIKMICRO Habrok Pro HX60LS Multi-Spectrum Binocular

$10,299.00
  • SKU: TNVS-TIHIK684
  • MPN: TIHIK684
  • Availability: Pickup NOT Available | Usually posted within 1 business day
  • Shipping: Calculated at Checkout
Availability: Pickup NOT Available | Usually posted within 1 business day
In Stock & Ready To Ship!
Current Stock:Only left:

Frequently Bought Together:

Total: Inc. GST
Total: Ex. GST
Description

The HIKMICRO HABROK Pro HX60LS multi-spectrum binocular is equipped with an 15mK NETD, 1280 x 1024 50Hz thermal detector @60mm thermal lens and an advanced 4K digital detector with 60mm lens, ensuring smooth image display, perfect image quality and detail recognition in various weather and light conditions.

Combined with a 1000m Laser rangefinder and replaceable IR emitter @850nm wavelength, this all-in-one binocular can be applied mainly in forest & field hunting, birding, animal searching, rescuing and marine scenario.

Features:

  • 1280 x 1024 resolution @12μm 50Hz thermal detector
  • High sensitivity thermal module NETD <15mK (@25°C, F# = 1.0)
  • 60mm, F1.0 lens with thermal detection range up to 3100m
  • 3840 x 2160 4K ultra high-resolution, 60mm, F2.2 digital camera
  • 1920 × 1080 resolution 0.49-inch OLED display
  • Replaceable 850nm IR emitter and 1000m Laser Rangefinder
  • 5.5 h+ continuous operation time with replaceable battery pack
  • 1050g lightweight, with a compact and ergonomic design

Specifications:

  • THERMAL MODULE
  • Image Sensor: VOx Uncooled Focal Plane Arrays
  • Max. Resolution: 1280X1024
  • Frame Rate: 50Hz
  • Pixel Interval: 12μm
  • Response Waveband: 8μm to 14μm
  • NETD: Less than 15mK (25°C,F#=1.0)
  • Lens (Focal Length): 60mm, F1.0
  • Focus Mode: Focus Ring
  • Detection Range: 3,100m
  • Min. Focusing Distance: 3m
  • Magnification: 2.6x 20x (7.7x)
  • Field of View (H x V), Degrees/m @100m: 14.6° × 8.8°/25.6m × 15.4m
  • OPTICAL MODULE
  • Image Sensor: 1/1.8" Progressive Scan CMOS
  • Max. Resolution: 3840x2160
  • Focal Length: 60mm, F2.2
  • Min. Working Distance: 3m
  • Focus Mode: Focus Ring
  • Magnification: 5.5x - 22x (4x)
  • Field of View (H x V), Degrees/m @100m: 7.3° × 4.1°/12.6m × 7.2m
  • Smart IR: Yes
  • IR Illuminator Wavelength: 850nm
  • Viewing Range at Night: 400m
  • Replaceable IR Illuminator: Yes
  • IMAGE DISPLAY
  • Display: 1920 × 1080, 0.49-inch, OLED
  • Thermal Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
  • Optical Palettes: Day, Night, Green, Yellow, Auto
  • Exit Pupil: 8mm
  • Eye Relief: 15mm
  • Diopter (Range): -5D to +3D
  • Brightness Adjustment: Yes
  • Tone Adjustment: Cold, Warm
  • Contrast Adjustment: Yes
  • FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
  • Zoom Pro: No
  • Image Pro 3.0: Yes
  • Sync Pro: Yes
  • SYSTEM
  • Record Video: Yes
  • Capture Snapshot: Yes
  • Audio Recording: Yes
  • Storage: Built-In EMMC (64GB)
  • PIP: Yes
  • Hotspot: Yes
  • Hot Track: Yes
  • Digital Magnetic Compass: Yes
  • GPS: Yes
  • Local Album: Yes
  • Standby Mode: Yes
  • POWER SUPPLY
  • Battery Type: Replaceable and Rechargeable Li-ion Battery Pack
  • Operating Time: 5.5 hours (25°C, with hotspot off, LRF on)
  • Type-C Power Supply: 5V/9V DC, 3A - Supports External Power Supply, Support Direct Charging
  • GENERAL
  • Protection Level: IP67
  • Dimensions: 152.8mm x 81.95mm x 231.5mm
  • Weight: 1,050g (with battery pack)
  • Working Temperature: From -30°C to +55°C
  • Interpupillary Adjustment Range: 60mm to 74mm
  • Mounting Adapter: 1/4"-20-UNC
  • LASER RANGEFINDER
  • Safety Class for Laser: Class 1
  • Wavelength: 905nm
  • Max. Measuring Range: 1,000m
  • Measurement Accuracy: ±1m
  • Min. Measuring Range: 10m

Includes:

  • 1x HX60LS Multi-Spectrum Binocular
  • 1x Quick Start Guide
  • 1x Binocular Harness
  • 1x Non-dust Cloth
  • 1x Replaceable IR Illuminator
  • 1x Tripod Adapter
  • 1x Neck Strap
  • 1x Type-C Cable
  • 2x Battery
  • 1x Battery Charger
