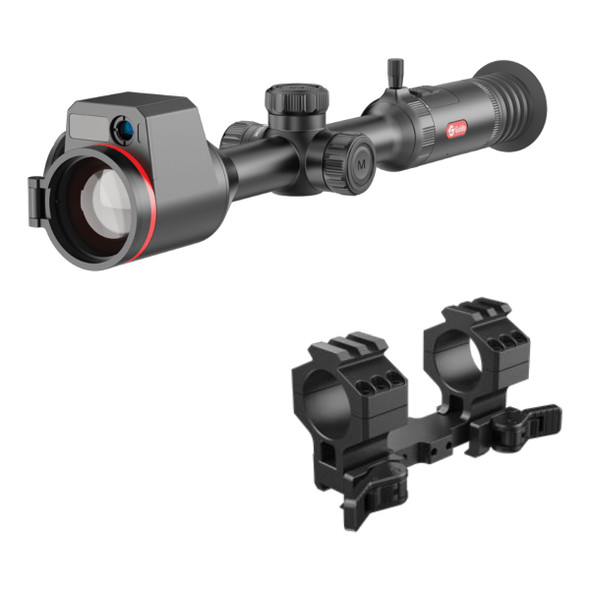

This Guide TU MUO 3.0 sets a new benchmark in precision optics, combining advanced thermal and night vision technology into one rugged, all-weather device. Plus this includes a quick release scope mount!

Featuring a powerful 640 × 512 12μm detector with 18mK NETD sensitivity and Hyper-Light enhancement, it delivers unmatched infrared imaging even in the toughest environments. A built-in laser rangefinder offers pinpoint accuracy out to 1500m, giving you confidence at any distance. Built to endure extreme conditions, the TU MUO 3.0 is IP68-rated and shock-resistant up to 6,000J—making it the ultimate choice for serious hunters and professionals who demand reliability without compromise.

Features:

• Dual Sights: Integrated thermal and night vision for all-day, allweather targeting.
• Ultra-Clear Sensitivity: 12μm detector + 18mK NETD with Hyperlight enhancement algorithm for exceptional infrared imaging.
• Comfortable Viewing: QHD 2560×2560 AMOLED display for clear,
  smooth visuals.
• Shutterless Design: Innovative 3.0 shutterless design ensures
  smooth, uninterrupted visuals.
• Seamless Control: Centrally positioned focus wheel & zoom lever,
  ergonomically designed for effortless operation.
• Laser Range: Pinpoint target locations with accuracy, up to 1500m.
• Rugged Design: IP68-rated, shock resistance up to 6000J.

Specifications:

• SENSOR
• Type:
  • Thermal: Uncooled VOx Infrared Detector, 8 to 14 μm
  • Digital: CMOS
• Resolution:
  • Thermal: 640×512@12μm (NETD 18mK)
  • Digital: 1920×[email protected]
• Frame Rate: 50Hz
• LENS
• Objective Lens:
  • Thermal: 50mm, F1.0
  • Digital: 35mm, F4.0
• Field of View:
  • Thermal: 8.8°×7.0°
  • Digital: 6.4°x5.1°
• FOV m@100m:
  • Thermal: 15x12
  • Digital: 11x9
• Magnification:
  • Thermal: 3.7x~29.6x
  • Digital: 3.7x~29.6x
• Detection Range:
  • Thermal: 2600m/2800yd
  • Digital: 500m/550yd
• Focus: Manual
• DISPLAY
• Display Type: 1.03’’ AMOLED, 2560x2560
• Colour Palettes:
  • IR: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
  • Visible: Day, Night, Low-Light
• Eyepiece: Eye relief: 60mm; Diopter -5 to +5; Zoom: 7.8x
• HARDWARE
• Laser Rangefinder: 1500m/1630yd
• WIFI: 2.4G, 5G
• Interface: USB-C (Charge/USB2.0)
• Tube Diamater: Standard 30mm
• Others: Microphone, Bluetooth
• SYSTEM
• Recording Function: Photo/Video (Audio recording included)
• Memory Capacity: 256GB
• POWER
• Battery Type: 18650 ×2 Battery (Built-in) and 18650 ×1 Battery (External)
• Operating Time: 14 hours
• ENVIRONMENTAL
• Operating Temperature: -20°C to 50°C / -4°F to +122°F
• Shock: 6000J/1200G
• Encapsulation: IP68
• PHYSICAL
• Weight: 1013g
• Size: 457mm x 90mm x 84mm

Includes:

• Thermal Device
• Lens Cover
• Eye Mask
• Quick-Release Scope Mount
• Carry Bag
• IR Illuminator
• IR Illuminator Bracket
• 2x 18650 Battery
• Battery Charger
• 5V 2A Adapter (US or UK or Australia or Europe)
• USB-A to USB-C Cable
• Quick Start Guide
