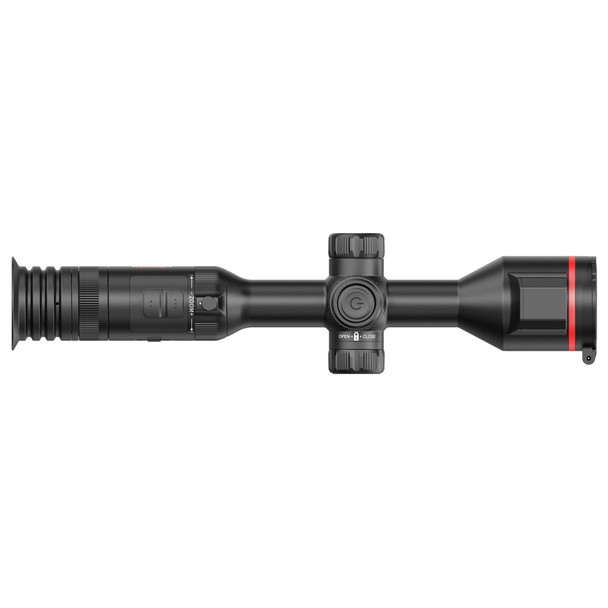

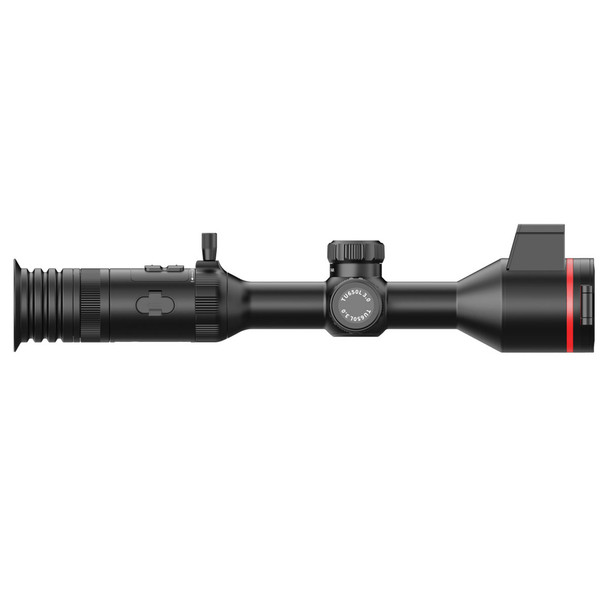

The TU435 LRF 3.0 is a high-performance thermal scope from Guides latest TU 3.0 Series, designed for hunters and professionals who demand accuracy and reliability in the field. Plus this includes a quick release scope mount!

It features a 400 × 300 @12μm thermal sensor with <20mK NETD sensitivity, delivering sharp, detailed images in all conditions. The 35mm lens offers a detection range of up to 1800 metres, while the built-in laser rangefinder provides fast and accurate distance readings up to 1500 metre, perfect for precise target identification and shot placement.

With a shutterless design, IP68 waterproof rating, dual-band Wi-Fi, and user-friendly controls, the TU435 LRF is built to perform in any environment.

Features:

• Highly Sensitive: 12μm thermal detector, NETD reaches 18mK.
• Exceptional Imaging: Hyper-light intelligent image enhancement
  algorithm delivers an ultra-detailed infrared view.
• Shutterless Design: Innovative 3.0 shutterless design ensures
  smooth, uninterrupted visuals.
• Seamless Control: Centrally positioned focus wheel & zoom lever,
  ergonomically designed for effortless operation.
• Laser Range: Pinpoint target locations with accuracy, up to 1500m.
• Rugged Design: IP68-rated, shock resistance up to 6000J.
• Powerful APP: Connect mobile APP for OTA firmware upgrade and
  ballistic calculation.

Specifications:

• SENSOR
• Type: Uncooled VOx Infrared Detector, 8 to 14 μm
• Resolution: 400×300, 12 μm
• NETD: 20mK
• Frame Rate: 50Hz
• LENS
• Focal length: 35mm, F1.0
• FOA (Field of Angle): 7.4°×4.4°
• FOV m@100m: 13x8
• Magnification: 4.4x~17.6x
• Detection Range: 1800m/1950yd
• Focus: Manual
• DISPLAY
• Display Type: 0.49’’ AMOLED, 1920x1080
• Colour Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief: 48mm; Diopter -5 to +5; Zoom: 14x
• HARDWARE
• Laser Rangefinder: 1500m/1630yd
• WIFI: 2.4G, 5G
• Interface: USB-C (Charge/USB2.0)
• Tube Diamater: Standard 30mm
• Others: Microphone, Bluetooth
• SYSTEM
• Recording Function: Photo/Video (Audio recording included)
• Memory Capacity: 128GB
• POWER
• Battery Type: 18500 ×1 Battery (Built-in) and 18650 ×1 Battery (External)
• Operating Time: 12 hours
• ENVIRONMENTAL
• Operating Temperature: -20°C to 50°C / -4°F to +122°F
• Shock: 6000J/1200G
• Encapsulation: IP68
• PHYSICAL
• Weight: 780g
• Size: 374mm x 89mm x 82mm

Includes:

• Thermal Device
• Lens Cover
• Eye Mask
• Quick-Release Scope Mount
• Carry Bag
• 2x 18650 Battery
• Battery Charger
• 5V 2A Adapter (US or UK or Australia or Europe)
• USB-A to USB-C Cable
• Quick Start Guide
