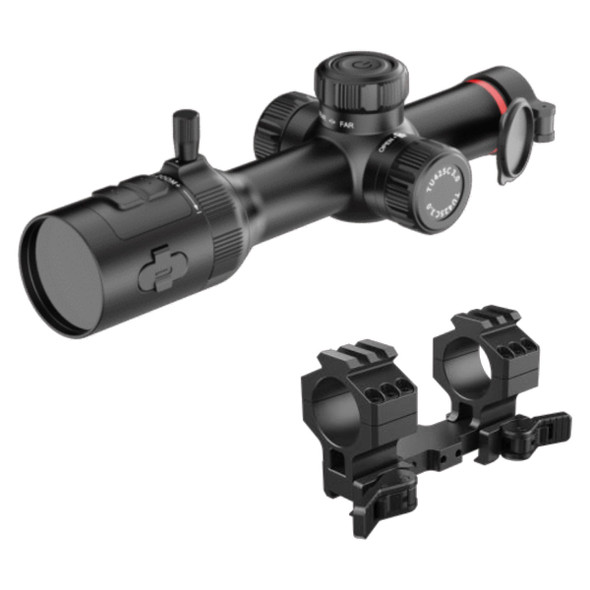

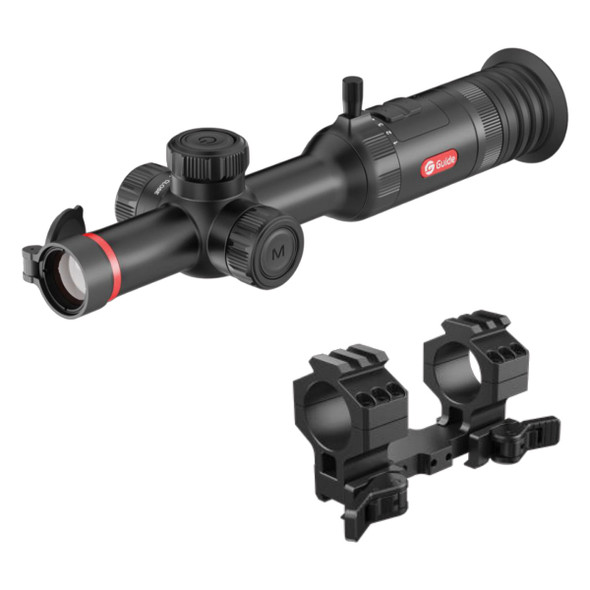

The Guide TU435 3.0 Thermal Scope is durable, powerful, and ready for any challenge. Plus this includes a quick release scope mount!

The TU435 3.0 is part of Guides advanced TU 3.0 Series, built for serious hunters and professionals who need reliable thermal performance in the field. It features a 400 × 300 @12μm thermal sensor with <20mK NETD sensitivity, giving you clear images even in tough conditions. With a 35mm lens and a detection range of up to 1800 metres, it’s perfect for medium to long-range spotting.

Designed for tough environments, the TU435 3.0 includes a shutterless design, IP68 waterproof rating, dual-band Wi-Fi, and easy-to-use controls.

Features:

• Highly Sensitive: 12μm thermal detector, NETD reaches 18mK.
• Exceptional Imaging: Hyper-light intelligent image enhancement
  algorithm delivers an ultra-detailed infrared view.
• Shutterless Design: Innovative 3.0 shutterless design ensures
  smooth, uninterrupted visuals.
• Seamless Control: Centrally positioned focus wheel & zoom lever,
  ergonomically designed for effortless operation.
• Rugged Design: IP68-rated, shock resistance up to 6000J.
• WiFi Upgrade: Supports 2.4G/5G dual-band, enabling more
  efficient data transmission.
• Powerful APP: Connect mobile APP for OTA firmware upgrade and
  ballistic calculation.

Specifications:

• SENSOR
• Type: Uncooled VOx Infrared Detector, 8 to 14 μm
• Resolution: 400×300, 12 μm
• NETD: 20mK
• Frame Rate: 50Hz
• LENS
• Focal length: 35mm, F1.0
• FOA (Field of Angle): 7.4°×4.4°
• FOV m@100m: 13x8
• Magnification: 4.4x~17.6x
• Detection Range: 1800m/1950yd
• Focus: Manual
• DISPLAY
• Display Type: 0.49’’ AMOLED, 1920x1080
• Colour Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief: 48mm; Diopter -5 to +5; Zoom: 14x
• HARDWARE
• WIFI: 2.4G, 5G
• Interface: USB-C (Charge/USB2.0)
• Tube Diamater: Standard 30mm
• Others: Microphone, Bluetooth
• SYSTEM
• Recording Function: Photo/Video (Audio recording included)
• Memory Capacity: 128GB
• POWER
• Battery Type: 18500 ×1 Battery (Built-in) and 18650 ×1 Battery (External)
• Operating Time: 12 hours
• ENVIRONMENTAL
• Operating Temperature: -20°C to 50°C / -4°F to +122°F
• Shock: 6000J/1200G
• Encapsulation: IP68
• PHYSICAL
• Weight: 738g
• Size: 374mm x 89mm x 76mm

Includes:

• Thermal Device
• Lens Cover
• Eye Mask
• Quick-Release Scope Mount
• Carry Bag
• 2x 18650 Battery
• Battery Charger
• 5V 2A Adapter (US or UK or Australia or Europe)
• USB-A to USB-C Cable
• Quick Start Guide
