Guide TU425SE 3.0 Thermal Scope

No reviews yet Write a Review
Ask Questions

Guide TU425SE 3.0 Thermal Scope

$1,899.00
  • SKU: TNVS-TIGUI240
  • MPN: TIGUI240
  • Availability: Pickup NOT Available | Usually posted within 1 business day
  • Shipping: Calculated at Checkout
Availability: Pickup NOT Available | Usually posted within 1 business day
Current Stock:Only left:
Description

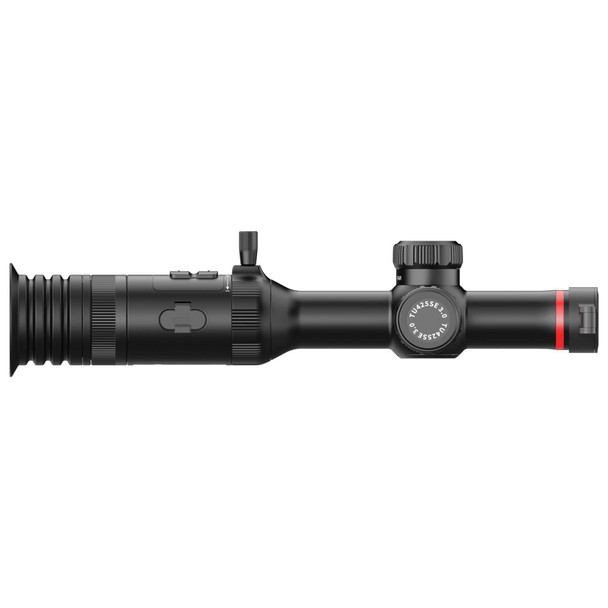

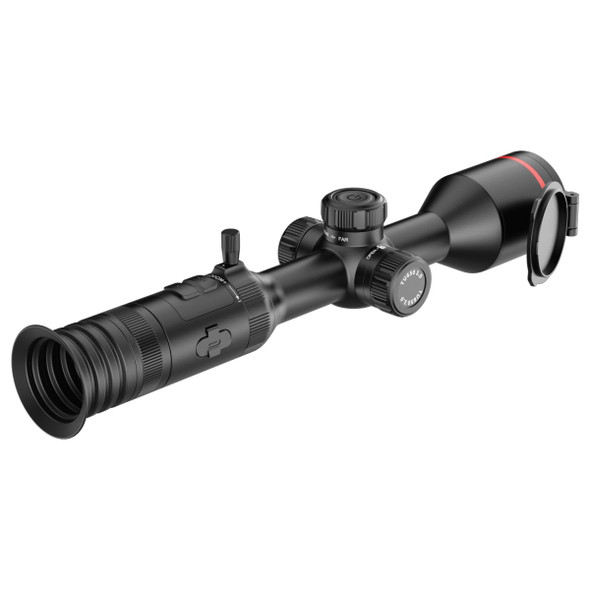

The TU425SE 3.0 is the lightweight option in Guides advanced TU 3.0 Series, offering powerful thermal performance in a more compact and portable design, weighing just 575g. Plus this includes a quick release scope mount!

Equipped with a 400 × 300 @12μm thermal sensor and <20mK NETD sensitivity, it delivers clear, detailed thermal images in a wide range of conditions. The 25mm lens provides a solid 1300m detection range, ideal for short to mid-range use.

With a shutterless design, IP68 waterproof rating, dual-band Wi-Fi, and easy-to-use controls, the TU425SE packs pro-level features into a lightweight, field-ready unit.

Features:

  • 400×300@12μm resolution
  • Highly Sensitive NETD <20mK  Thermal Detector
  • Lightweight design – 575g
  • IP68 rated and shock resistant up to 6000J
  • Long battery life (12 Hours)
  • Fast focusing
  • Smart Recording
  • Wi-Fi upgrade (supports 2.4G/5G)

Specifications:

  • SENSOR
  • Type: Uncooled VOx Infrared Detector, 8 to 14 μm
  • Resolution: 400×300, 12 μm
  • NETD: 20mK
  • Frame Rate: 50Hz
  • LENS
  • Focal length: 25mm, F1.0
  • FOA (Field of Angle): 10.3°×6.2°
  • FOV m@100m: 18x11
  • Magnification: 3.1x~12.4x
  • Detection Range: 1300m/1400yd
  • Focus: Manual
  • DISPLAY
  • Display Type: 0.49’’ AMOLED
  • Resolution: 1920×1080
  • Colour Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
  • Eyepiece: Eye Relief: 48mm; Diopter -5 to +5; Zoom: 14x
  • HARDWARE
  • WIFI: 2.4G, 5G
  • Interface: USB-C (Charge/USB2.0)
  • Tube Diamater: Standard 30mm
  • Others: Microphone, Bluetooth
  • SYSTEM
  • Recording Function: Photo/Video (Audio recording included)
  • Memory Capacity: 32GB
  • POWER
  • Battery Type: 18500 ×1 Battery (Built-in) and 18650 ×1 Battery (External)
  • Operating Time: 12 hours
  • ENVIRONMENTAL
  • Operating Temperature: -20°C to 50°C / -4°F to +122°F
  • Shock: 6000J/1200G
  • Encapsulation: IP68
  • PHYSICAL
  • Weight: 575g
  • Size: 311mm x 89mm x 76mm

Includes:

  • Thermal Device
  • Lens Cap
  • Eye Mask

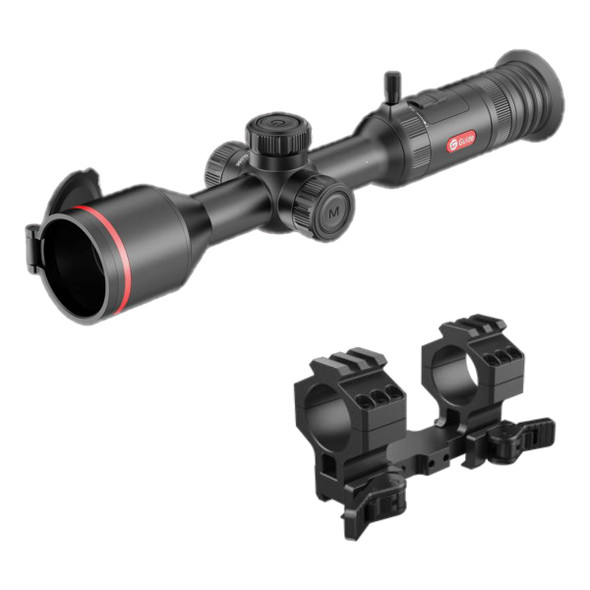

  • Quick-Release Scope Mount
  • Carry Bag
  • 2x 18650 Battery
  • Battery Charger
  • 5V 2A Adapter (US or UK or Australia or Europe)
  • USB-A to USB-C Cable
  • Quick Start Guide
