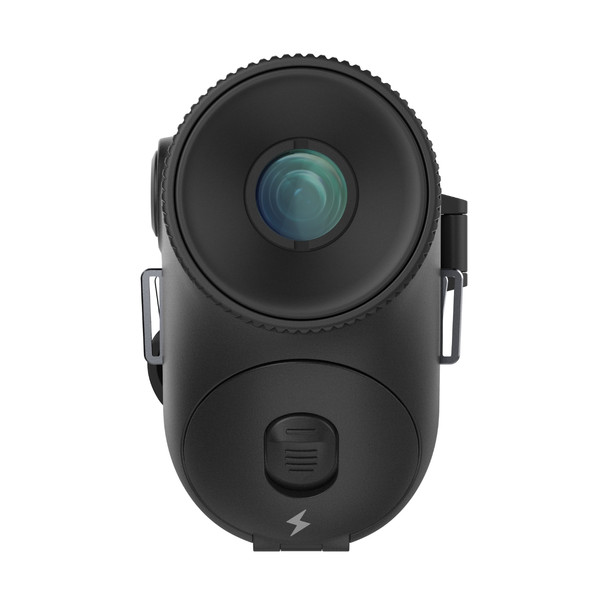

Guide TD433 LRF Gen 3 Thermal Monocular

No reviews yet Write a Review
Ask Questions

Guide TD433 LRF Gen 3 Thermal Monocular

$2,399.00
  • SKU: TNVS-TIGUI046
  • MPN: TIGUI046
  • Availability: Usually posted within 1 business day - Pickup not available
  • Shipping: Calculated at Checkout
Availability: Usually posted within 1 business day - Pickup not available
In Stock & Ready To Ship!
Current Stock:Only left:
Description

The TD Gen3 LRF Series handheld thermal imaging monocular is engineered for precision and performance, featuring a fully integrated laser rangefinder (LRF) within a compact and lightweight housing. Its central focusing roller enables smooth, one-handed operation, while the ambidextrous, symmetrical design ensures optimal handling comfort for both left- and right-handed users.

Equipped with a high-capacity rechargeable battery, the TD Gen3 LRF delivers up to 12 hours of continuous operation, making it ideal for extended field use. The rugged IP67-rated construction provides superior protection against dust, water, and harsh environmental conditions.

Built-in Wi-Fi connectivity allows seamless pairing with external devices for real-time image transmission, data sharing, and firmware updates, enhancing both functionality and user experience in the field.

Features:

  • 400 x 300px @12μm Thermal Sensor
  • NETD < 25mK
  • 1000m LRF
  • 12 Hours Battery Life
  • IP67 Encapsulation

Specifications:

  • SENSOR
  • Type: Uncooled VOx Infrared Detector, 8 to 14μm
  • Resolution: 400×300@12μm
  • NETD: 25mK
  • Frame Rate: 50Hz
  • LENS
  • Objective Lens: 35mm, F1.0
  • FOV (Field of View): 7.9°×5.9°
  • FOV m @100m: 14×10
  • Magnification: 2.9x~11.6x
  • Detection Range: 1800m/1950yd
  • DISPLAY
  • Display Type: 0.36'' AMOLED 1280x960
  • Colour Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
  • Eyepiece Eye Relief: 20mm
  • Eyepiece Diopter: -6 to +6; Zoom: 13.8x
  • HARDWARE
  • Laser Rangefinder: 1000m/1090yd
  • WiFi: 2.4G, 5G
  • Interface: USB Type-C
  • Others: Microphone, Bluetooth
  • SYSTEM
  • Recording Function: Photo/Video (Audio recording included)
  • Memory Capacity: 16GB
  • POWER
  • Battery Type: 1x Replaceable 18650 Battery
  • Operating Time: 12 hours
  • ENVIRONMENTAL
  • Operating Temperature: -20 °C to 50 °C/ -4°F to +122°F
  • Encapsulation: IP67
  • PHYSICAL
  • Weight: 370g (13.05oz)
  • Size: 159mm x 54mm x 74mm (6.26" x 2.13" x 2.91")

Includes:

  • Thermal Monocular
  • Hand Strap
  • Eye Mask
  • Battery Charger
  • 1x 18650 Battery
  • 5V 2A Adapter (US, UK, Australia, and Europe)
  • USB-A to USB-C Cable
  • Quick Start Guide
  • Warranty Card
