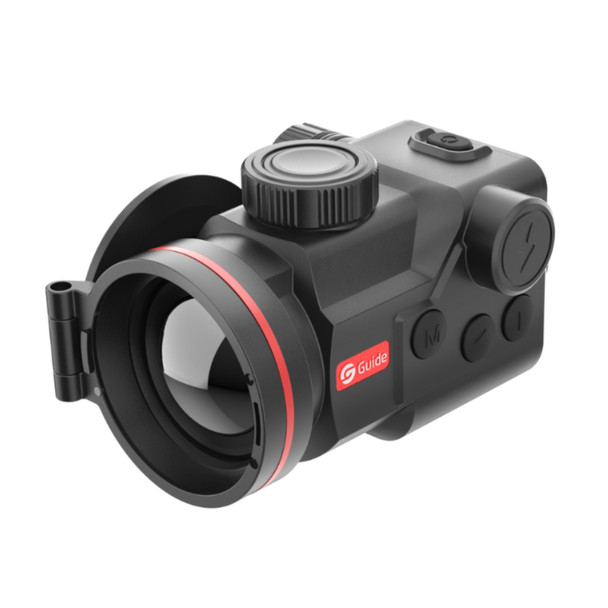

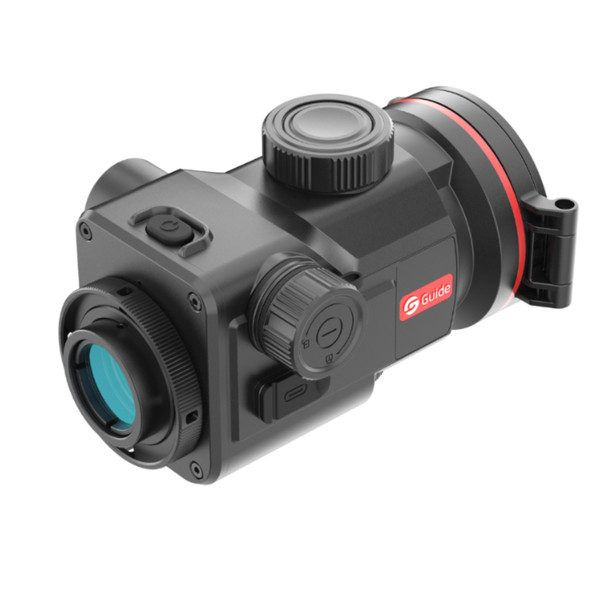

The Guide TB650 2.0 is a next-generation thermal clip-on designed for hunters who demand razor-sharp accuracy and silent performance. At under 490 g, it’s impressively light and compact yet packed with cutting-edge tech. From its G-Zero shutter-free design to the AI-driven Hyper-Light image enhancement and a standard, swappable 18650 battery, this unit delivers exceptional thermal imaging and effortless handling in the field.

The Guide TB650 2.0 combines lightweight portability with elite imaging performance, giving hunters a thermal clip-on that’s quick to mount, easy to carry, and deadly accurate—night or day.

Features:

• Featherweight Build – Weighing only 480–490 g, the TB 2.0 balances perfectly on your day scope for comfortable, all-day use.
• Hyper-Light Clarity – Advanced AI processing and a high-sensitivity thermal sensor reveal crisp detail, reduce image noise, and boost contrast—even at long range.
• Ultra-Precise Zeroing – Fine-tune with 1.22 cm @100 m click adjustments and pair with daylight optics up to 15× magnification for reliable shot-to-shot accuracy.

Specifications:

• SENSOR
• Type: Uncooled VOx Infrared Detector, 8 to 14µm
• Resolution: 640x512@12µm
• NETD: 18mK
• Frame Rate: 50Hz
• LENS
• Objective Lens: 50mm, F1.0
• Field of View: 8.8°x6.6°
• FOV M@100m: 15x11
• Magnification: 1x
• Detection Range: 2,600m / 2,800yd
• Focus: Manual
• DISPLAY
• Display Type: 0.39" AMOLED 1920x1080
• Colour Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece Eye Relief: 20mm
• Eyepiece Zoom: 6.7x
• HARDWARE
• WIFI: 2.4G, 5G
• Interface: USB-C (Power Supply/USB2.0)
• Others: Microphone, Bluetooth
• SYSTEM
• Recording Function: Photo/Video (Audio recording included)
• Memory Capacity: 64GB
• POWER
• Battery Type: Single, Replaceable 18650 Battery
• Operating Time: 5 hours
• ENVIRONMENTAL
• Operating Temperature: -20°C to 50°C (-4°F to 122°F)
• Shock: 6,000J
• Encapsulation: IP68
• PHYSICAL
• Weight: 480g (16.93oz)
• Dimensions: 144mm x 86mm x 79mm (5.67" x 3.39" x 3.11")

Includes:

• Device
• 2x 18650 Battery
• Battery Charger
• USB-A to USB-C Cable
• Quick Start Guide
• Warranty Card
