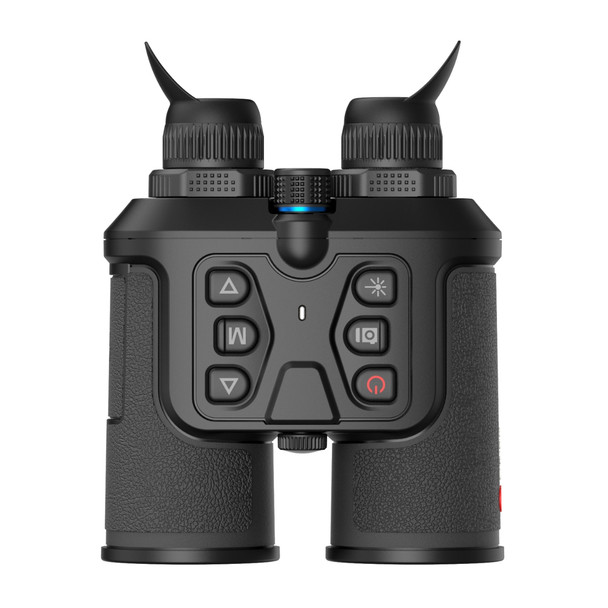

Guide DN30 Digital Night Vision Binoculars

Experience 4K ultra-high-definition visuals with the DN Series. Its 3840×2160@2μm moonlight low-light CMOS sensor and 1920×1080 AMOLED display create stunning images day and night. In the case of sufficient light, the 4K low-light detector has a strong colour rendition ability, presenting more delicate and colourful images; and in the morning, dusk, and night when there is insufficient light, turn on the infrared fill light, and you can “see through” the dark night from a long distance to observe, identify, and monitor hidden targets ahead.

Features:

• 4K UHD Clarity: 3840×2160@2μm CMOS sensor + 1920×1080 AMOLED display
• Day/Night Versatility: Day/Low-light/Night image modes, HD full-color display anytime
• Effortless Evidence Collection: Easily capture photos and record videos with one click
• Laser Range: Pinpoint target locations with accuracy, up to 600m or 1000m
• WIFI: The connected app via WIFI for remote control, live image and video transmission
• OTA Upgrade: Support device firmware updates by connecting TargetIR APP
• Ergonomic Design: Binocular design with adjustable 60mm-70mm pupil distance
• Extended Endurance: Enjoy up to 6 hours of continuous outdoor use

Specifications:

• SENSOR
• Sensor Type: CMOS
• Resolution: 3840x2160@2μm
• Minimum Illuminance: 0.001 lux
• Frame Rate: 50Hz
• LENS
• Focal Length: 35mm F1
• FOV (Field of View): 12.57°×7.12°
• Optical Zoom: 1.96x
• Digital Zoom: 1x to 8x
• Focus: Manual
• DISPLAY
• Display Type: 0.39’’ AMOLED×2
• Resolution: 1920×[email protected]μm, FHD
• Eyepiece: Binoculars, 20 mm ≥ exit pupil distance ≥ 15 mm, diopter adjustment: -4 to +2
• Video Output: Digital video
• POWER
• Battery Type: 2 replaceable 18650 batteries
• Battery Life: 6 hours
• INTERFACE
• USB: Typ-C
• Video Interface: micro HDMI
• Mechanical Interface: UNC ¼"-20 (Tripod mounting, L-bracket is required), Mechanical expansion interface
• FUNCTIONS
• Recording Function: Photo/Video
• WIFI: Transmission of real-time video via WIFI for remote control in the 2.4G frequency band and within 15 meters
• Scene Modes: Day, Night and Low-light Modes
• IR Illuminator: 940 nm
• Laser: Laser rangefinder (up to 600m or 1000m)
• Other: GPS, Compass, Gyroscope, Bluetooth
• SYSTEM
• Language Settings: English, Russian, German, French
• Memory Capacity: 32GB
• ENVIRONMENTAL
• Operating Temperature Range: -30°C to 50°C
• Storage Temperature Range: -40°C to 60°C
• Humidity: 10% to 95% non-condensing
• Encapsulation: IP67
• Certification: CE, FCC, EAC, RoHS
• DETECTION RANGE
• Detection Range: 600m
• PHYSICAL
• Weight: 940g (without eye mask and battery)
• Size: 162mm x 146mm x 70mm (without eye mask)

Includes:

• Night Vision Binoculars
• Lens Cap
• Shoulder Strap
• 2x Detachable Eye Masks
• Carry Bag
• 5V2A Adapter ( US, Britain, Australia and Europe)
• 2x Replaceable 18650 Batteries
• Battery Charger
• USB Type-C Cable
• Micro HDMI Cable
• Quick Start Guide
